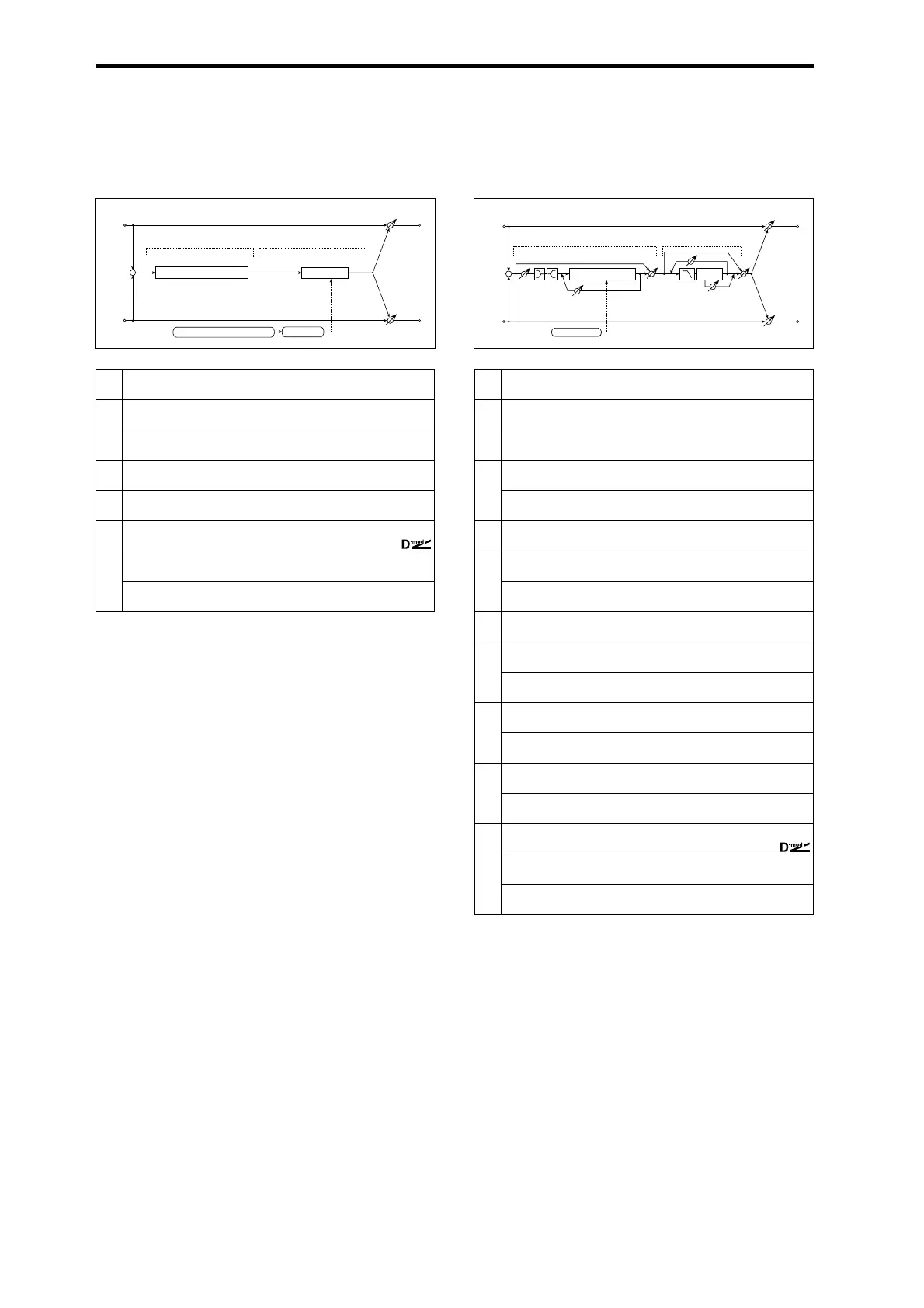

086: Amp Sim – Tremolo
(Amp Simulation – Tremolo)
This effect combines a mono-type amp simulation and a trem-
olo.
087: Cho/Flng – Mt. Dly
(Chorus/Flanger – Multitap Delay)
This effect combines a mono-type chorus/flanger and a mult-
itap delay.
a
[A] Amplifier Type
Selects the type of guitar amplifier
SS, EL84, 6L6
b
[T] LFO Waveform Triangle, Sine, Vintage, Up, Down
Selects LFO Waveform
☞ Fx:032
LFO Shape –100...+100
Determines how much the LFO waveform is changed
☞ Fx:020
c
[T] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
d
[T] Depth
Sets the depth of LFO modulation
0...100
e
Wet/Dry Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
Src Off...Tempo
Selects the modulation source of the effect balance
Amt
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Amp Simulation Tremolo
Amp Simulation Filter
Tremolo
LFO: Tri/Sin/Vintage/Up/Down
LFO Shape
a
[F] Delay Time [msec]
Sets the delay time
0.0...50.0msec
b
[F] LFO Frequency [Hz]
Sets the LFO speed
0.02...20.00Hz
LFO Waveform
Selects LFO Waveform
Triangle, Sine
c
[F] Depth
Sets the depth of LFO modulation
0...100
Feedback
Sets the feedback amount
–100...+100
☞ Fx:020
d
[F] EQ Trim
Sets the EQ input level
0...100
e
[F] Pre LEQ Gain [dB]
Sets the gain of Low EQ
–15...+15dB
Pre HEQ Gain [dB]
Sets the gain of High EQ
–15...+15dB
f
[F] Cho/Flng Wet/Dry –Wet...–2:98, Dry, 2:98...Wet
Sets the effect balance of the chorus/flanger
☞ Fx:010, 020
g
[D] Tap1 Time [msec]
Sets the Tap1 delay time
0...680msec
Tap1 Level
Sets the Tap1 output level
0...100
☞ Fx:045
h
[D] Tap2 Time [msec]
Sets the Tap2 delay time
0...680msec
Feedback (Tap2)
Sets the Tap2 feedback amount
–100...+100
i
[D] Mt.Delay Wet/Dry Dry, 1:99...99:1, Wet
Sets the multitap delay effect balance
High Damp [%]
Sets the damping amount in the high range
0...100%
☞ Fx:043
j
Wet/Dry Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
Src Off...Tempo
Selects the modulation source of the effect balance
Amt
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
LEQ HEQ
EQ
Trim
Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Chorus/Flanger
Cho/Flng
Wet / Dry
Mt.Dly
Wet / Dry
Chorus/Flanger
Feedback
LFO: Tri / Sine
