48
☞ For details on master effects, refer to p.182 “8. Effect
Guide.”
9–1: Master FX
Here you can select the type of each master effect, turn it
on/off, and make chain and master EQ settings.
9–1a: MFX1, 2
MFX1, 2 [000...089]
MFX1, 2 On/Off [Off, ON]
Chain [Off, On]
Chain Direction [MFX1→MFX2, MFX2→MFX1]
Chain Signal [LR Mix, L Only, R Only]
Chain Level [000...127]
9–1b: Return Level
Return 1, 2 [000...127]
9–1c: Master EQ Gain [dB]
Low [–18.0...+18.0]
Mid [–18.0...+18.0]
High [–18.0...+18.0]
These settings are the same as in Program mode (☞“Pro-
gram 9–1: Master FX”).
▼ 9–1: Page Menu Command
9–1A: Copy Master Effect
☞ “Program P9: 9–1A: Copy Master Effect.”
However, the MIDI control channel that is specified by “Ctrl
Ch” of the MFX 1 and 2 pages will not be copied.
9–1B: Swap Master Effect
☞ “Program P9: 9–1B: Swap Master Effect.”
However, the MIDI control channel that is specified by “Ctrl
Ch” of the MFX 1 and 2 pages will not be swapped.
9–2: MFX 1
9–3: MFX 2
Here you can set the parameters for the MFX 1 and 2 effects
that were selected in the Master FX page (☞p.187).
9–2(3)a: Ctrl Ch
Ctrl Ch [Ch01...16, G ch]
This parameter specifies the MIDI channel that will
control dynamic modulation (Dmod) for the master
effect.
G ch: The global MIDI channel “MIDI Channel” (Global P1:
1–1a) will be used for control. Normally you will set this to
G ch.
9–4: Master EQ
The master EQ is a three-band stereo EQ. It is located imme-
diately before the AUDIO OUTPUT (MAIN OUT) L/
MONO and R from the L/R bus, and adjusts the overall
tonal character of the sound (☞p.239).
9–4a: Ctrl Ch
Ctrl Ch [Ch01...16, G ch]
This parameter specifies the MIDI channel that will
control dynamic modulation (Dmod) for the master EQ.
G ch: The global MIDI channel “MIDI Channel” (Global P1:
1–1a) will be used for control. Normally you will set this to
G ch.
The MEQ High Gain and MEQ Low gain can be controlled
by assigning a modulation source to the “Low Gain Mod-
Src:” and the “High Gain Mod-Src:” functions on this page.

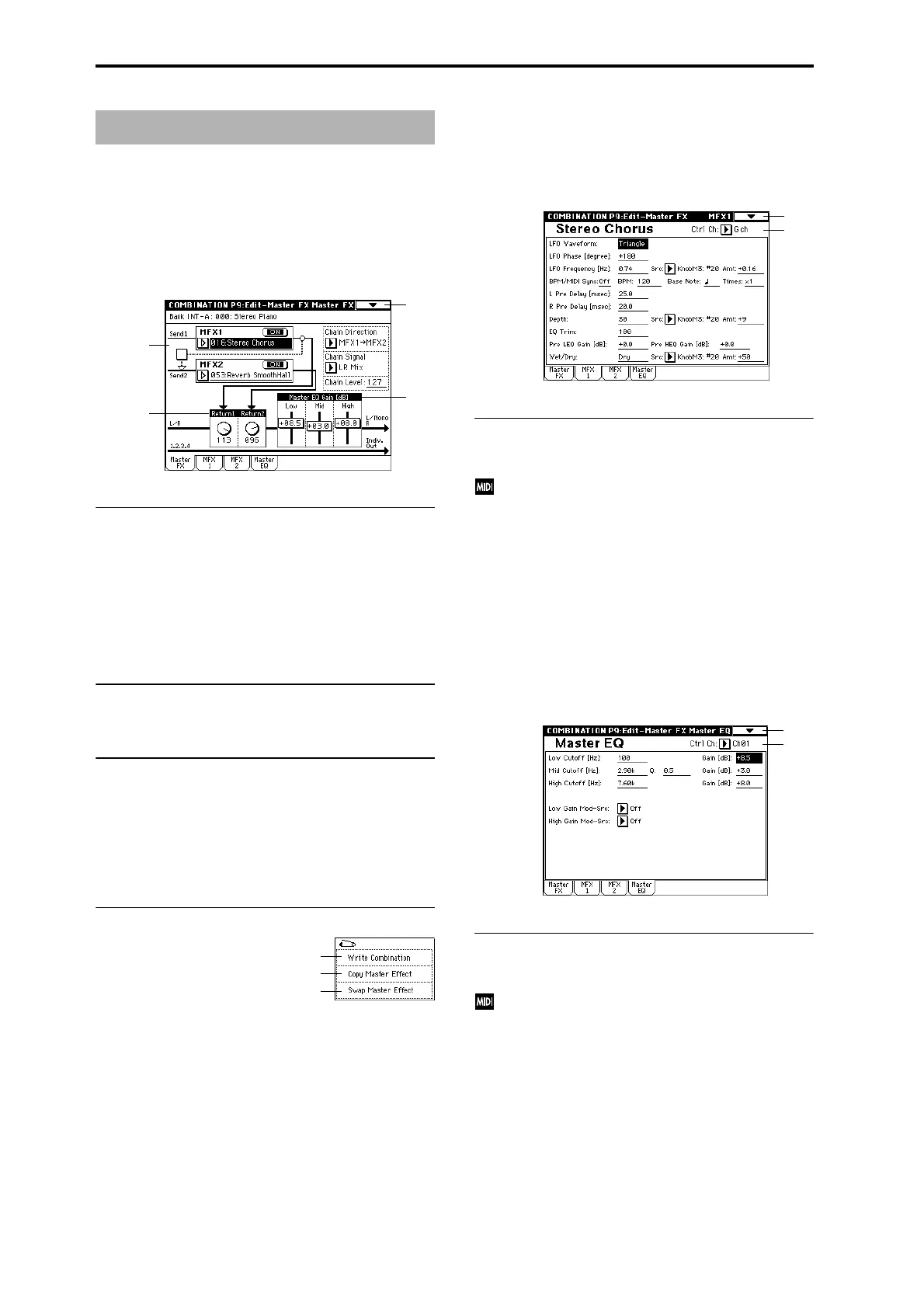

Combination P9: Edit–Master FX
9–1
9–1c
9–1a
9–1b
0–1A
9–1A
9–1B
9–1
9–2a
0–1A
9–4a
