84
Send1 (MFX1) [000...127]
Send2 (MFX2) [000...127]
Here you can adjust the send levels from tracks 1–16 to mas-
ter effects 1 and 2. This is valid when “BUS Select” is set
either to L/R or Off. If IFX 1, 2, 3, 4, or 5 is selected, the send
level to the master effects 1 and 2 is set by the “Send 1” and
“Send 2” parameters located in the Insert FX page, after the
signal passes through IFX 1–5.
These settings have no effect if “BUS Select” is set to 1, 2, 3,
4, 1/2 or 3/4.
The send 1 and 2 settings you make here will be used when
the song is played or recorded from the beginning. If you
change the settings while recording, the change will be
recorded as part of the musical data, and the send amount
will change when the data is played back. You can also
change these settings during playback. However if send 1
and 2 data has been recorded, the settings will change
accordingly.
If “Status” (2–1a/2a) is either INT or BTH, CC#93 and
#91 can be received to control send 1 and 2 respectively
and change their settings. When you switch songs or
return to the beginning of a song, tracks whose “Sta-
tus” is EXT, EX2 or BTH will transmit these settings via
MIDI. This data will be transmitted on the MIDI chan-
nel of each track as set by “MIDI Channel” (2–1a/2a).
The actual send level is determined by multiplying the
value of these parameters with the send level settings of
the oscillator(s) of the program used by the track
(“Send1” and “Send2,” Program P8: 8–1d).
▼ 8–1: Page Menu Command
8–1A: Copy Insert Effect
☞ “Program P8: 8–1A: Copy Insert Effect.”
However, the MIDI control channel specified in “Ctrl Ch” of
the IFX 1–5 page will not be copied.
8–1B: Swap Insert Effect
☞ “Program P8: 8–1B: Swap Insert Effect.”
However, the MIDI control channel specified in “Ctrl Ch” of
the IFX 1–5 page will not be swapped.
8–1C: DrumKit IFX Patch
☞ “Combination P8: 8–1C: DrumKit IFX Patch.”

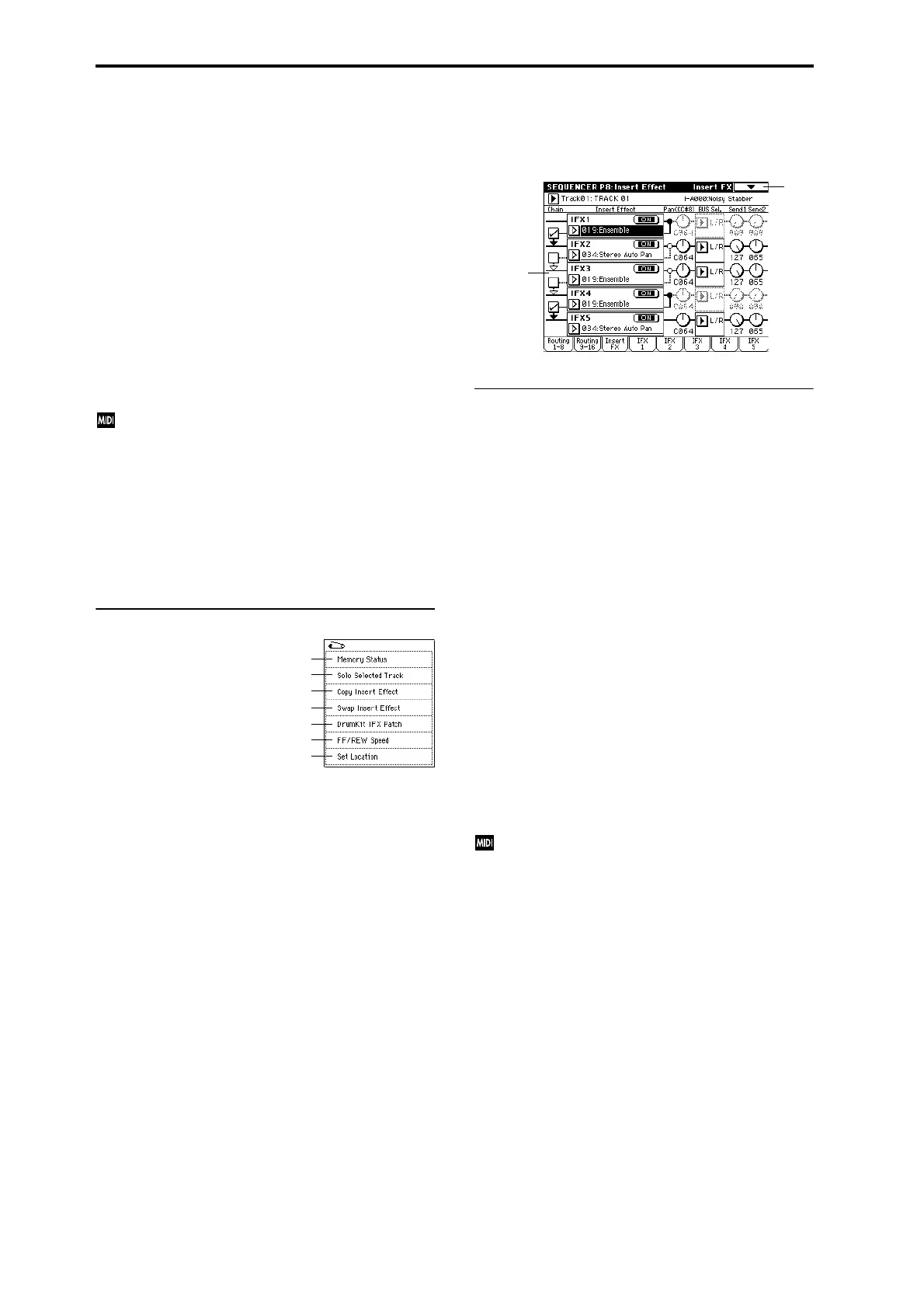

8–3: Insert FX
Here you can select the type of the insert effects, turn them
on/off, and make chain settings.
8–3a: IFX1, 2, 3, 4, 5
IFX1, 5 [000...089]
IFX2, 3, 4 [000...102]
IFX1, 2, 3, 4, 5 On/Off [Off, ON]
Chain [Off, On]
Pan(CC#8) (Post IFX PanCC#8) [L000...C064...R127]
BUS Sel. (BUS Select) [L/R, 1, 2, 3, 4, 1/2, 3/4, Off]
Send1 [000...127]
Send2 [000...127]
These functions are the same as in Program mode. (☞Pro-
gram 8–2a)
However unlike in Program mode, the “Ctrl Ch” (8–4a – 8a)
is used as the MIDI channel that controls insert effect
dynamic modulation (Dmod) and the “Pan (CC#8),” “Send
1,” and “Send 2” that follows the insert effect. The control
changes used are the same as in Program mode.
The pan (CC#8), send 1 and 2 settings you make here will be
used when the song is played or recorded from the begin-
ning. If you change the settings while recording, the changes
will be recorded as part of the musical data, and the settings
will change when the data is played back. You can also
change these settings during playback. However if pan
(CC#8), send 1, or 2 data has been recorded, the settings will
change accordingly.
If “Status” (2–1a/2a) is either INT or BTH, CC#8,
CC#93, and CC#91 can be received to control the pan
following the insert effect, send 1, or send 2 respec-
tively, and change their settings. When you switch
songs or return to the beginning of the song, tracks
whose “Status” is BTH, EXT, or EX2 will transmit these
settings via MIDI. This data will be transmitted on the
MIDI channels specified in the IFX 1–5 pages (8–4 – 8–
8).
0–1A
0–1B
8–1A
8–1B
8–1C
0–1I
0–1J
8–1
8–3a
