Br (AMS SW Break) [–, 0, +]
Specifies the direction in which “AMS (Level Mod.AMS)”
will change “Break (Break Point Level).” If “Intensity (AMS
Intensity)” is set to a positive (+) value, setting this parame-
ter to + will allow AMS to increase the EG level, and setting
this parameter to – will allow AMS to decrease the EG level.
With a setting of 0, no change will occur.
4–3c: Time Modulation
These parameters let you use an alternate modulation
source to modify the amp 1 EG times that were specified in
Amp1 EG (4–3a).
AMS1 (Time Mod. AMS1) [Off, (KT, EXT)]
Selects the source that will control the Time parameters of
the amp 1 EG (“AMS List” ☞p.242).
Intensity (AMS1 Intensity) [–99…+99]
Specifies the depth and direction of the effect that “AMS1
(Time Mod. AMS1)” will have.
For example if “AMS1 (Time Mod. AMS1)” is Amp KTrk +/
+, the (Amp) Keyboard Track settings (4–2a) will control the
EG Time parameters. With positive (+) values of this param-
eter, positive (+) values of Ramp will cause EG times to be
lengthened, and negative (–) values of Ramp will cause EG
times to be shortened. The direction of the change is speci-
fied by “At (AMS1 SW Attack),” “Dc (AMS1 SW Decay),”
“Sl (AMS1 SW Slope),” and “Rl (AMS1 SW Release).”
When “AMS1 (Time Mod. AMS1)” is Velocity, positive (+)
values will cause EG times to lengthen as you play more
strongly, and negative (–) values will cause EG times to
shorten as you play more strongly. With a setting of 0, the EG
times will be as specified in Amp1 EG (4–3a).
At (AMS1 SW Attack) [–, 0, +]
Specifies the direction of the effect that “AMS1 (Time Mod.
AMS1)” will have on “Attack (Attack Time).” With positive
(+) values of “Intensity (AMS1 Intensity),” setting this
parameter to + will allow AMS1 to lengthen the time, and
setting it to – will allow AMS1 to shorten the time. With a
setting of 0 there will be no effect.
Dc (AMS1 SW Decay) [–, 0, +]
Specifies the direction of the effect that “AMS1 (Time Mod.
AMS1)” will have on “Decay (Decay Time).” With positive
(+) values of “Intensity (AMS1 Intensity),” setting this
parameter to + will allow AMS1 to lengthen the time, and
setting it to – will allow AMS1 to shorten the time. With a
setting of 0 there will be no effect.
Sl (AMS1 SW Slope) [–, 0, +]
Specifies the direction of the effect that “AMS1 (Time Mod.
AMS1)” will have on “Slope (Slope Time).” With positive
(+) values of “Intensity (AMS1 Intensity),” setting this
parameter to + will allow AMS1 to lengthen the time, and
setting it to – will allow AMS1 to shorten the time. With a
setting of 0 there will be no effect.
Rl (AMS1 SW Release) [–, 0, +]
Specifies the direction of the effect that “AMS1 (Time Mod.
AMS1)” will have on “Release (Release Time).” With posi-
tive (+) values of “Intensity (AMS1 Intensity),” setting this
parameter to + will allow AMS1 to lengthen the time, and
setting it to – will allow AMS1 to shorten the time. With a
setting of 0 there will be no effect.
AMS2 (Time Mod. AMS2) [Off, (KT, EXT)]
Intensity (AMS2 Intensity) [–99…+99]
At (AMS2 SW Attack) [–, 0, +]
Dc (AMS2 SW Decay) [–, 0, +]
Sl (AMS2 SW Slope) [–, 0, +]
Rl (AMS2 SW Release) [–, 0, +]
These parameters specify how “AMS2 (Time Mod. AMS2)”
will control the amp 1 EG Time parameters (☞“AMS1 (Time
Mod. AMS1)”–“Rl (AMS1 SW Release)”).
▼ 4–3: Page Menu Command
4–3A: Sync Both EGs
When you select the page menu command “Sync Both
EGs,” a check mark will appear at the left of “Sync Both
EGs.” In this state, you can edit the amp 1 EG and amp 2 EG
simultaneously. (Editing either EG will change the settings
of both EGs.) (☞3–4A)
4–4: Amp2 Level/Pan
4–5: Amp2 Mod.
4–6: Amp2 EG
These are the parameters for amp 2 (used for oscillator 2).
(☞“4–1: Amp1 Level/Pan”–“4–3: Amp 1 EG.”)
These will appear when “Oscillator Mode” (1–1a) is Dou-
ble.

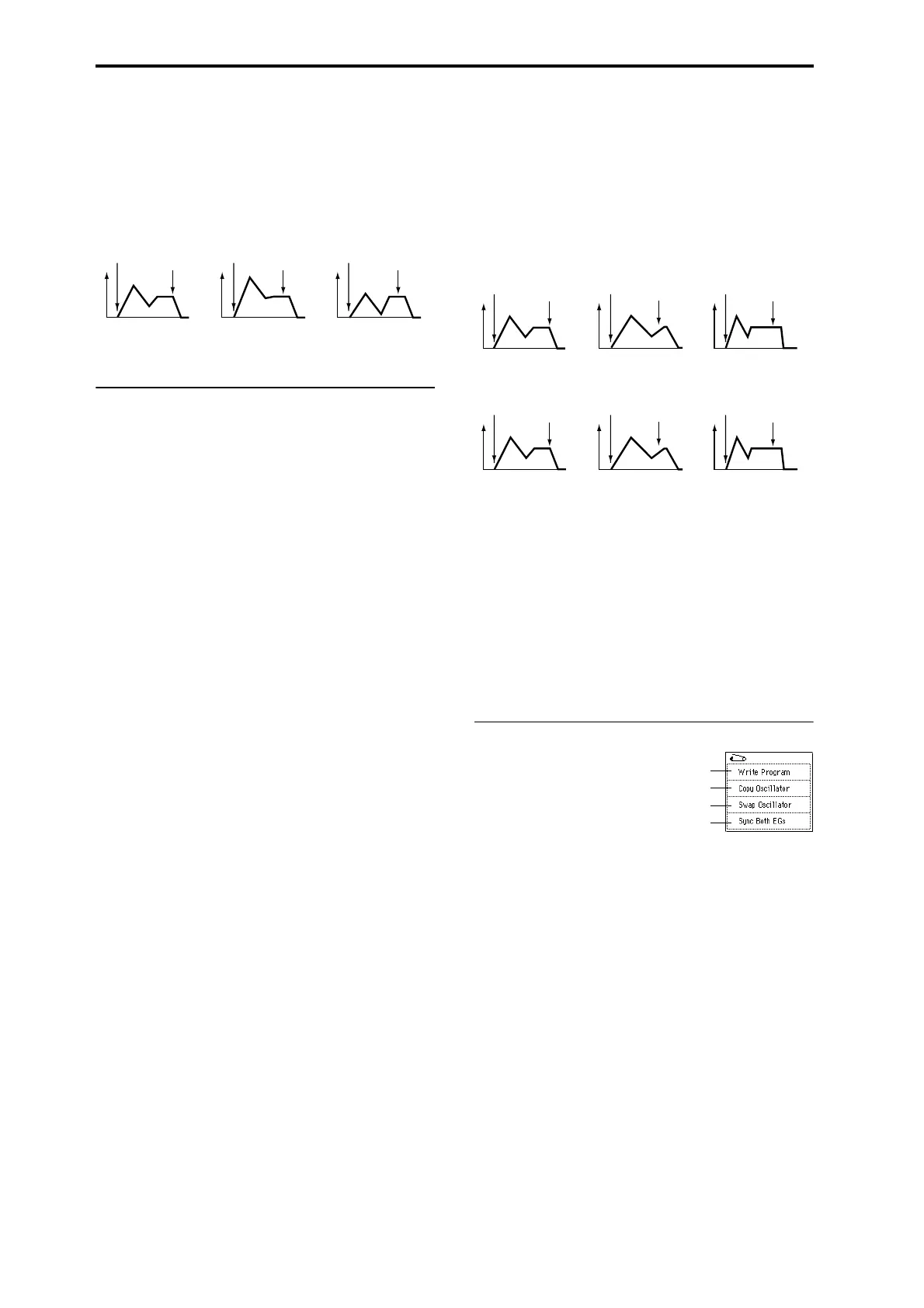

Amp 1 EG changes (Level) (AMS=Velocity, Intensity = a positive (+) value)
Note-on
Note-off
Note-on
Note-off
Note-on
Note-off
Softly played note when “St”=0
and “At” and “Br” are set to +
(settings of 4–3a: Amp 1 EG)
Strongly played note
when “St”=0 and “At” and
“Br” are set to +
Strongly played note
when “St”=0 and “At” and
“Br” are set to –
Amp 1 EG changes (Time) (AMS=Velocity, Intensity= a positive (+) value)
Settings of 4–3a: Amp 1 EG
Amp 1 EG changes (Time)
(AMS=Amp KTrk +/+, Intensity = a positive (+) value)
(When Amp Keyboard Track (4–2a) Low Ramp= a positive (+) value, and
High Ramp = a positive (+) value)
Note-on
Note-off
Note-on
Note-off
Note-on
Note-off
Note-on
Note-off
Note-on
Note-off
Note-on
Note-off
Low-pitched note played with
“At,” “Dc,” “Sl,” and “Rl” at +
Softly played note with “At,”
“Dc,” “Sl” and “Rl” at +
(settings of 4–3a: Amp 1 EG)
High-pitched note played with
“At,” “Dc,” “Sl,” and “Rl” at –
Strongly played note with “At,”
“Dc,” “Sl” and “Rl” at +
Strongly played note with
“At,” “Dc,” “Sl” and “Rl” at –
