6 VS-42UHD - Overview
3.2 Defining the VS-42UHD 4x2 HDMI Matrix Switcher
This section defines the VS-42UHD.

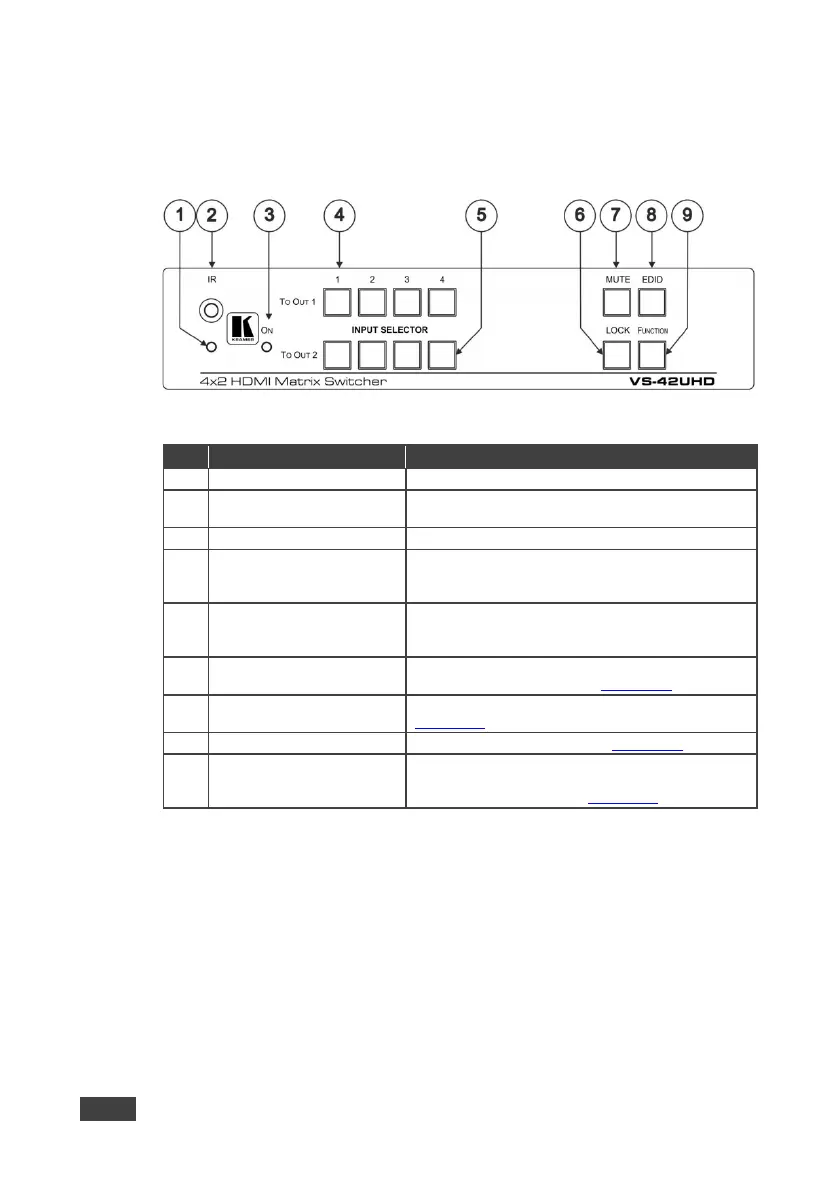

Figure 1: VS-42UHD 4x2 HDMI Matrix Switcher Front
# Feature Function
1
IR LED
Lights yellow when receiving an IR signal
2
IR Sensor
Signal receiver for the infrared remote control
transmitter
3
ON LED
Lights green when the device is powered on
4
INPUT SELECTOR
TO OUT 1 1~4
Press one of the four inputs to switch it to Output 1
Press the currently selected input button to mute the
output
5
INPUT SELECTOR
TO OUT 2 1~4
Press one of the four inputs to switch it to Output 2
Press the currently selected input button to mute the
output
6
LOCK Button Press and hold to lock the front panel buttons. Press
and hold again to unlock (see Section 6.4)
7
MUTE Button
Press to toggle mute of both output signals (see
Section 6.3)
8
EDID Button
Press to capture the EDID (see Section 6.2)
9
FUNCTION Button
Press to activate the test pattern generator. When
the generator is active, press one of the input buttons
to select a test pattern (see Section
6.5)
