Kramer VS-42UHD User Manual

VS-42UHD - Connecting the VS-42UHD 9

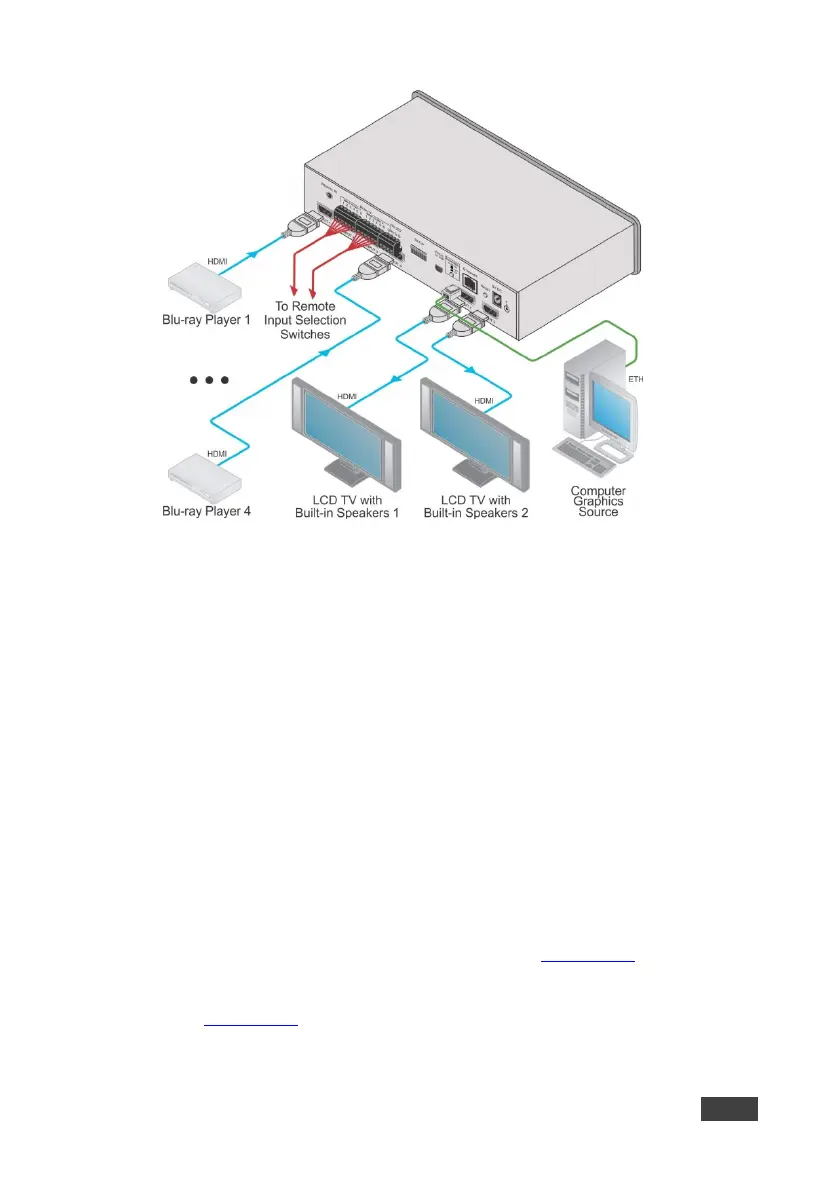

Figure 3: Connecting the VS-42UHD 4x2 HDMI Matrix Switcher
4.1 Connecting a Serial Controller via RS-232
To connect a serial controller to the VS-42UHD:
• From the RS-232 9-pin D-sub serial port on the serial controller connect:
 Pin 2 to the TX pin on the VS-42UHD RS-232 terminal block
 Pin 3 to the RX pin on the VS-42UHD RS-232 terminal block
 Pin 5 to the GND pin on the VS-42UHD RS-232 terminal block
4.2 Connecting to the VS-42UHD via Ethernet
You can connect to the VS-42UHD via Ethernet using either of the following
methods:
• Directly to the PC using a crossover cable (see Section 4.2.1
)
• Via a network hub, switch, or router, using a straight-through cable (see
Section 4.2.2
)
