32 VS-42UHD - Wiring the Twisted Pair RJ-45 Connectors
9 Wiring the Twisted Pair RJ-45 Connectors
Connect/solder the cable shield to the RJ-45 connector shield.
Do not use a crossed TP cable with this product.
Using a TP cable that is incorrectly wired may cause permanent
damage to the device
Do not
use unshielded TP cables with this product

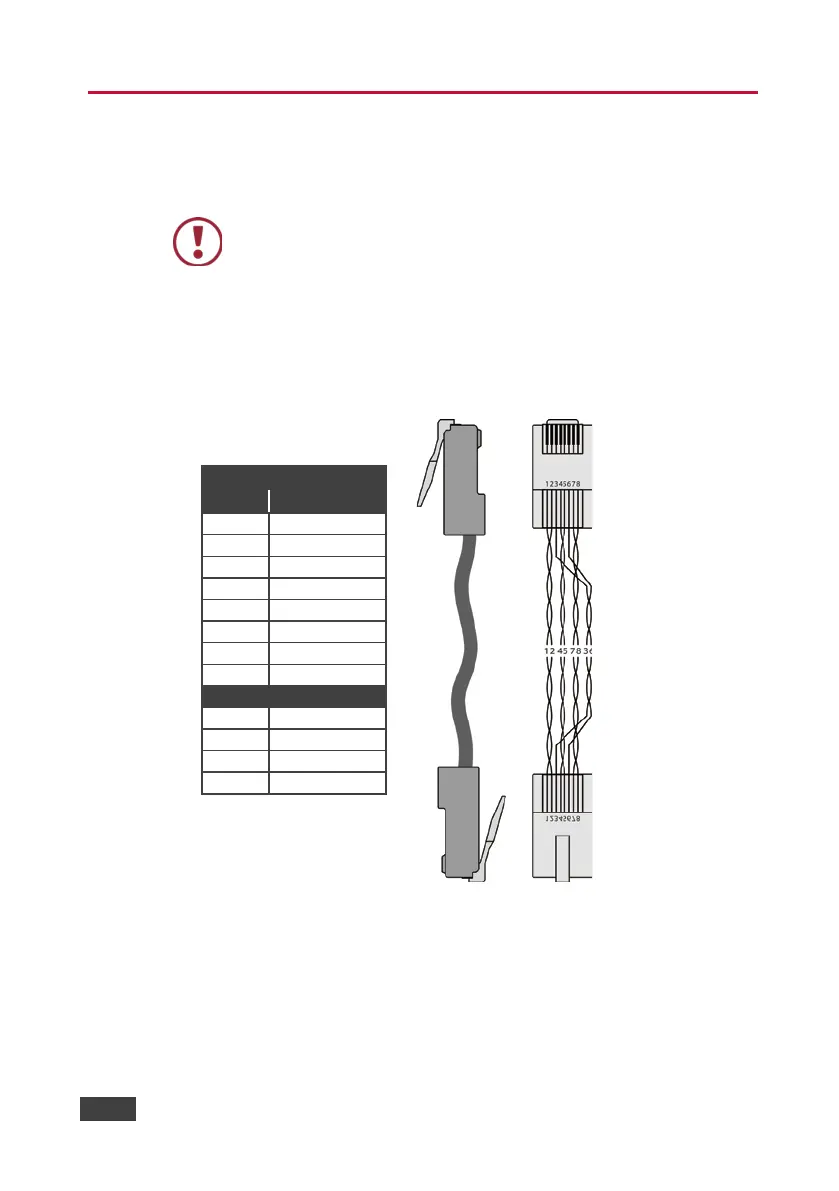

The following figure defines the TP pinout using a straight pin-to-pin cable with
RJ-45 connectors.
EIA /TIA 568B
Pin
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
Pair 1
4 and 5
Pair 2
1 and 2
Pair 3
3 and 6
Pair 4
7 and 8
Figure 20: TP Pinout Wiring
