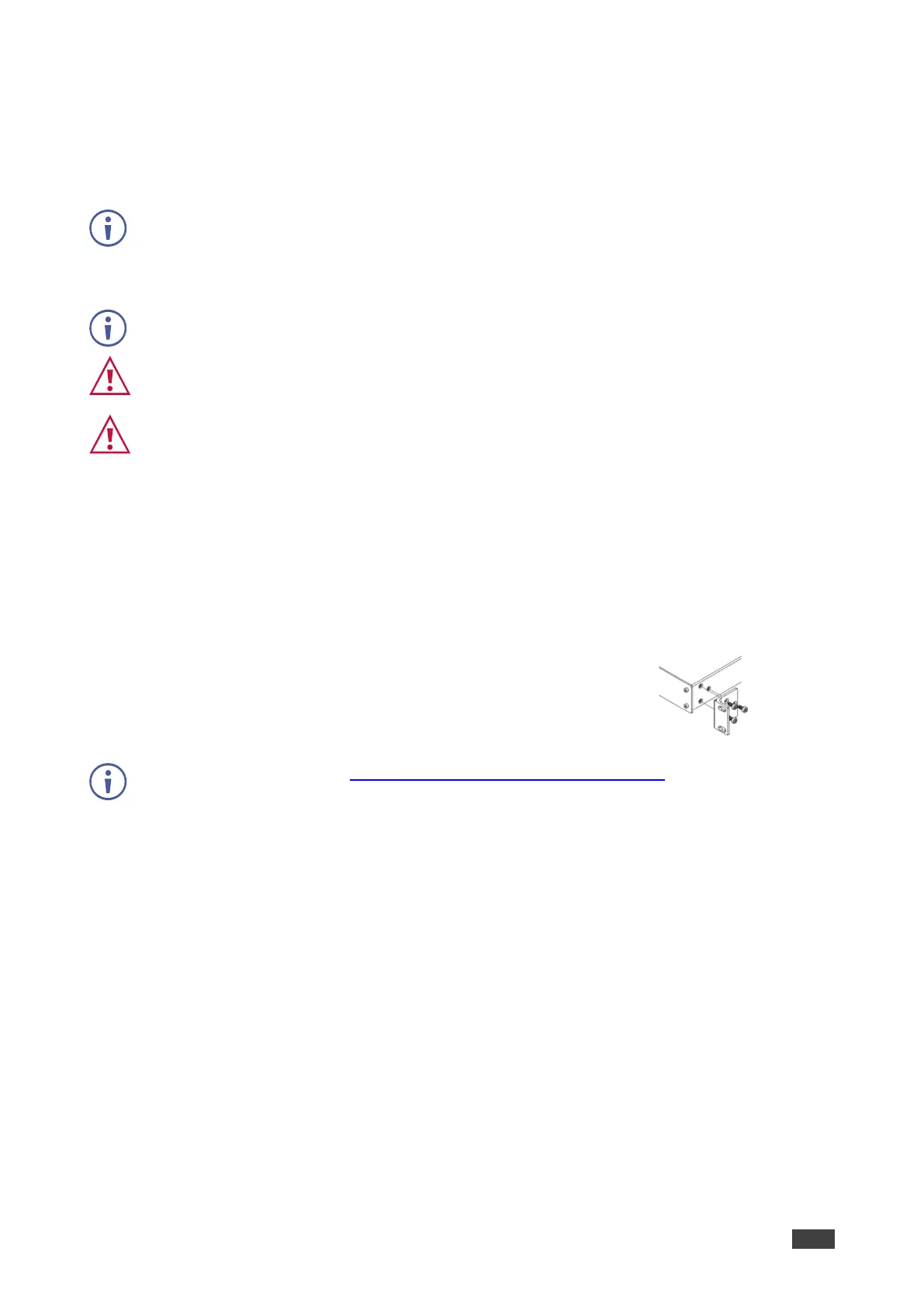

Mounting VS-88H2
This section provides instructions for mounting VS-88H2. Before installing, verify that the
environment is within the recommended range:
Operation temperature 0 to 40C (32 to 104F).
Storage temperature -40 to +70C (-40 to +158F).
Humidity 10% to 90%, RHL non-condensing.
VS-88H2 must be placed upright in the correct horizontal position.
Caution:
Mount VS-88H2 before connecting any cables or power.
Warning:
Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.
Avoid uneven mechanical loading.
Appropriate consideration of equipment nameplate ratings should be used for avoiding
overloading of the circuits.
Reliable earthing of rack-mounted equipment should be maintained.
Mount VS-88H2 in a rack:
Attach both rack ears by removing the screws from each side of
the machine and replacing those screws through the rack ears.
For more information go to www.kramerav.com/downloads/VS-88H2.
