Kramer VS-88H2 User Manual

Kramer Electronics Ltd.
VS-88H2 – Defining the Matrix Switcher
5

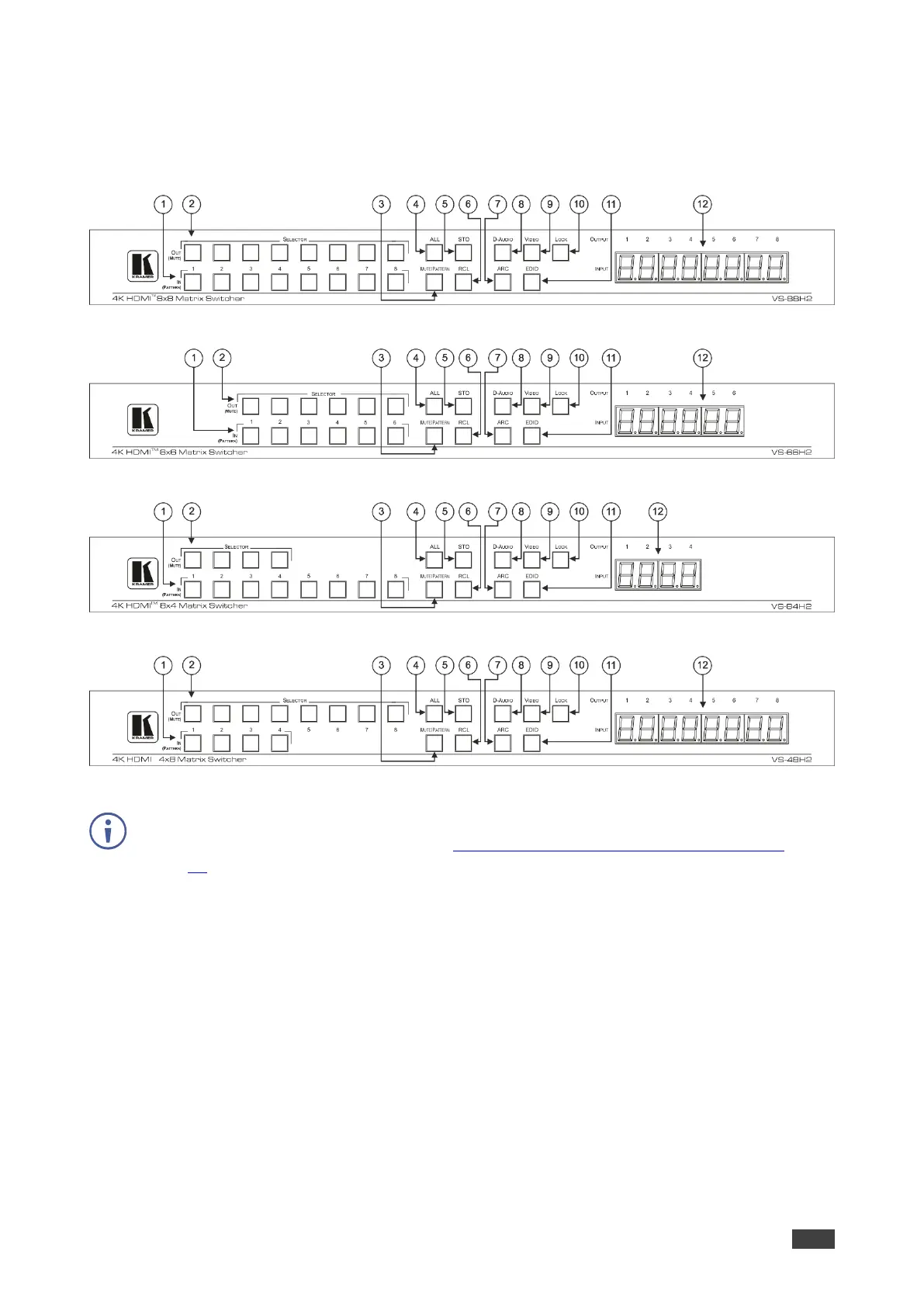

Defining the Matrix Switcher
This section defines the VS-88H2, VS-66H2, VS-84H2 and VS-48H2 front panel.
Figure 1: VS-88H2 8x8 H2 Matrix Switcher Front Panel
Figure 2: VS-66H2 6x6 Matrix Switcher Front Panel
Figure 3: VS-84H2 8x4 Matrix Switcher Front Panel
Figure 4: VS-48H2 4x8 Matrix Switcher Front Panel
The behavior of the front panel buttons and the 7-segment display changes along with the
operation modes. For further details see Operating VS-88H2 via Front Panel Buttons on
page 13.

Kramer VS-88H2 Specifications

General

HDCP	Yes
HDCP version	1.4/2.2
Product type	AV matrix switcher
Audio channels	7.1
Control type	Buttons
Housing color	Black
USB connector type	Mini-USB, USB Type-A
USB ports quantity	2
HDMI input ports quantity	8
Ethernet LAN (RJ-45) ports	1
Display type	LCD
Input current	0.6 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	- W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS
Cables included	AC

Weight and Dimensions

Depth	183 mm
Width	436.4 mm
Height	43.6 mm
Weight	2400 g
Package depth	330 mm
Package width	525 mm
Package height	107 mm
Package weight	3300 g
