VS-88H2 – Defining the Matrix Switcher
7

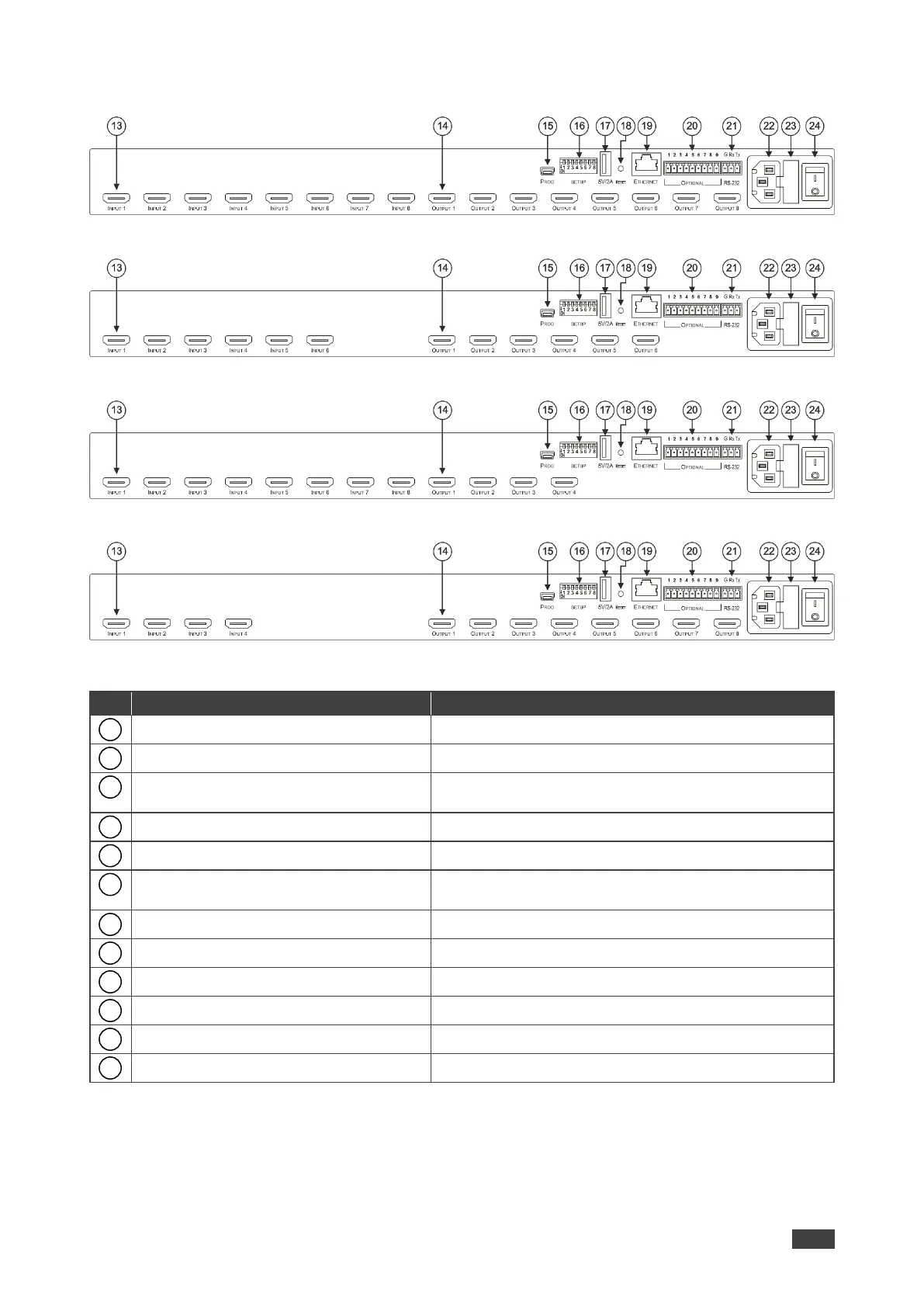

This section defines the VS-88H2, VS-66H2, VS-84H2 and VS-48H2 back panel.
Figure 5: VS-88H2 8x8 H2 Matrix Switcher Rear Panel
Figure 6: VS-66H2 6x6 Matrix Switcher Rear Panel
Figure 7: VS-84H2 8x4 Matrix Switcher Rear Panel
Figure 8: VS-48H2 4x8 Matrix Switcher Rear Panel
#
Feature
Function
INPUT HDMI Connectors
Connect to the HDMI sources.
OUTPUT HDMI Connectors
Connect to HDMI acceptors.
PROG Mini USB Port
Use for firmware upgrade or communication
(connecting to a PC or a serial controller).
SETUP DIP-Switches
N/A
5V/2A USB Port
Use to charge a device.
Reset Button
Press and hold while powering the device to reset IP
settings to factory default values.
ETHERNET RJ-45 Port
Connect to your LAN.
OPTIONAL Terminal Block Connectors
N/A
RS-232 3-pin Terminal Block Connectors
Connect to a PC or a serial controller.
Mains Power Connector
Connect to the mains power.
Mains Power Fuse
Fuse for protecting the device.
Mains Power Switch
Switch for turning the device on or off.
13
14
15
16
17
18
19
20
21
22
23
24

Kramer VS-88H2 Specifications

General

HDCP	Yes
HDCP version	1.4/2.2
Product type	AV matrix switcher
Audio channels	7.1
Control type	Buttons
Housing color	Black
USB connector type	Mini-USB, USB Type-A
USB ports quantity	2
HDMI input ports quantity	8
Ethernet LAN (RJ-45) ports	1
Display type	LCD
Input current	0.6 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	- W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS
Cables included	AC

Weight and Dimensions

Depth	183 mm
Width	436.4 mm
Height	43.6 mm
Weight	2400 g
Package depth	330 mm
Package width	525 mm
Package height	107 mm
Package weight	3300 g
