VS-88H2 – Connecting VS-88H2
12

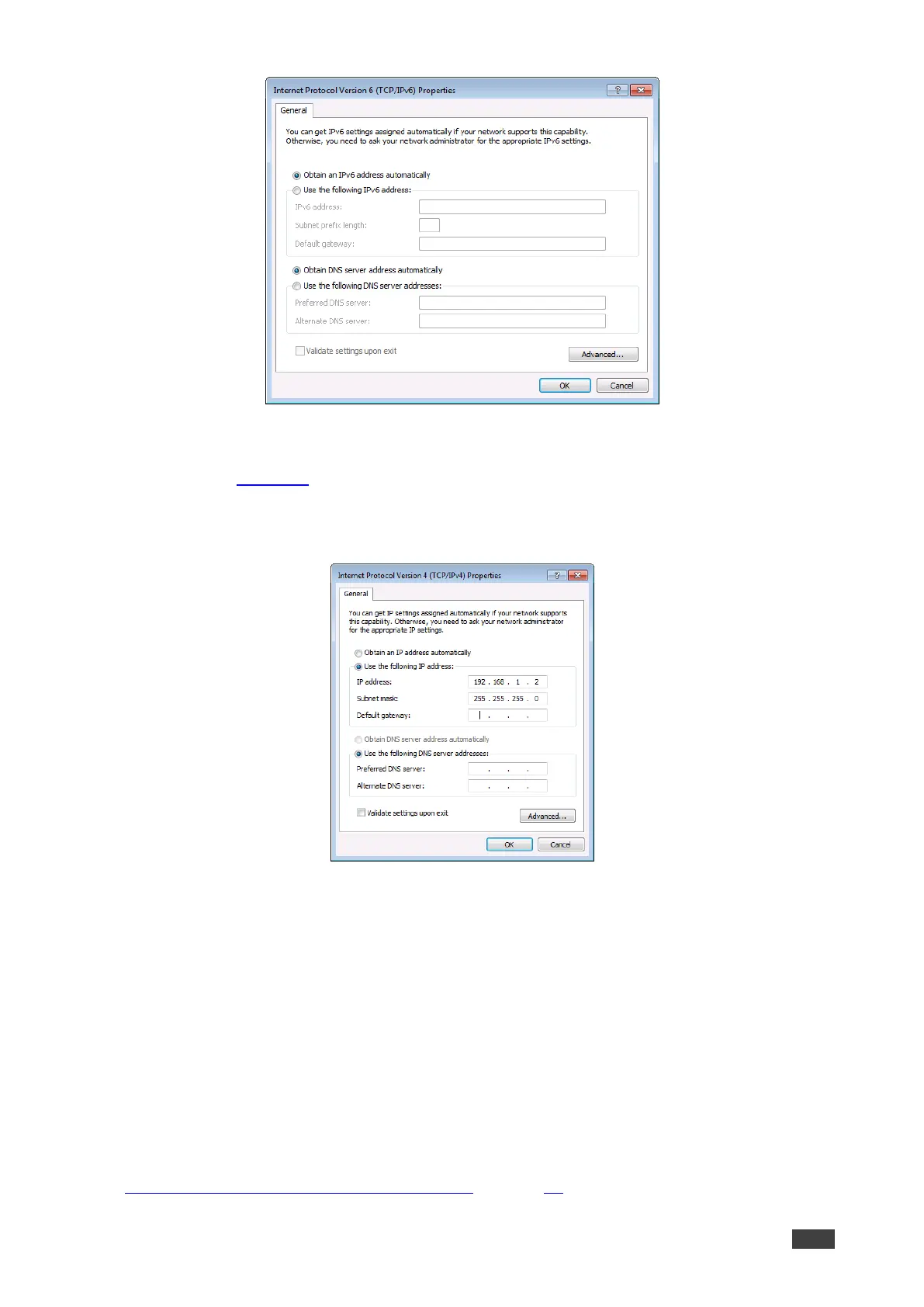

Figure 12: Internet Protocol Version 6 Properties Window
6. Select Use the following IP Address for static IP addressing and fill in the details as
shown in Figure 13.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.
Figure 13: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
Connecting the Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of the VS-88H2 to the Ethernet port on a network hub or
using a straight-through cable with RJ-45 connectors.
Control Configuration via the Ethernet Port
To control several units via Ethernet, connect the Master unit (Device 1) via the Ethernet port
to the Ethernet port of your PC. Use your PC provide initial configuration of the settings (see
Connecting VS-88H2 via the ETHERNET Port on page 10).

Kramer VS-88H2 Specifications

General

HDCP	Yes
HDCP version	1.4/2.2
Product type	AV matrix switcher
Audio channels	7.1
Control type	Buttons
Housing color	Black
USB connector type	Mini-USB, USB Type-A
USB ports quantity	2
HDMI input ports quantity	8
Ethernet LAN (RJ-45) ports	1
Display type	LCD
Input current	0.6 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	- W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS
Cables included	AC

Weight and Dimensions

Depth	183 mm
Width	436.4 mm
Height	43.6 mm
Weight	2400 g
Package depth	330 mm
Package width	525 mm
Package height	107 mm
Package weight	3300 g
