KRAUSE ClimTec - Assembly of basic scaffold; Basic scaffold with 1 st Extension; Basic scaffold with 1 st and 2 nd Extension; Ballast load

SAFETY INSTRUCTIONS
All railing and diagonal braces as well as
boards must be secured with securing
kits.

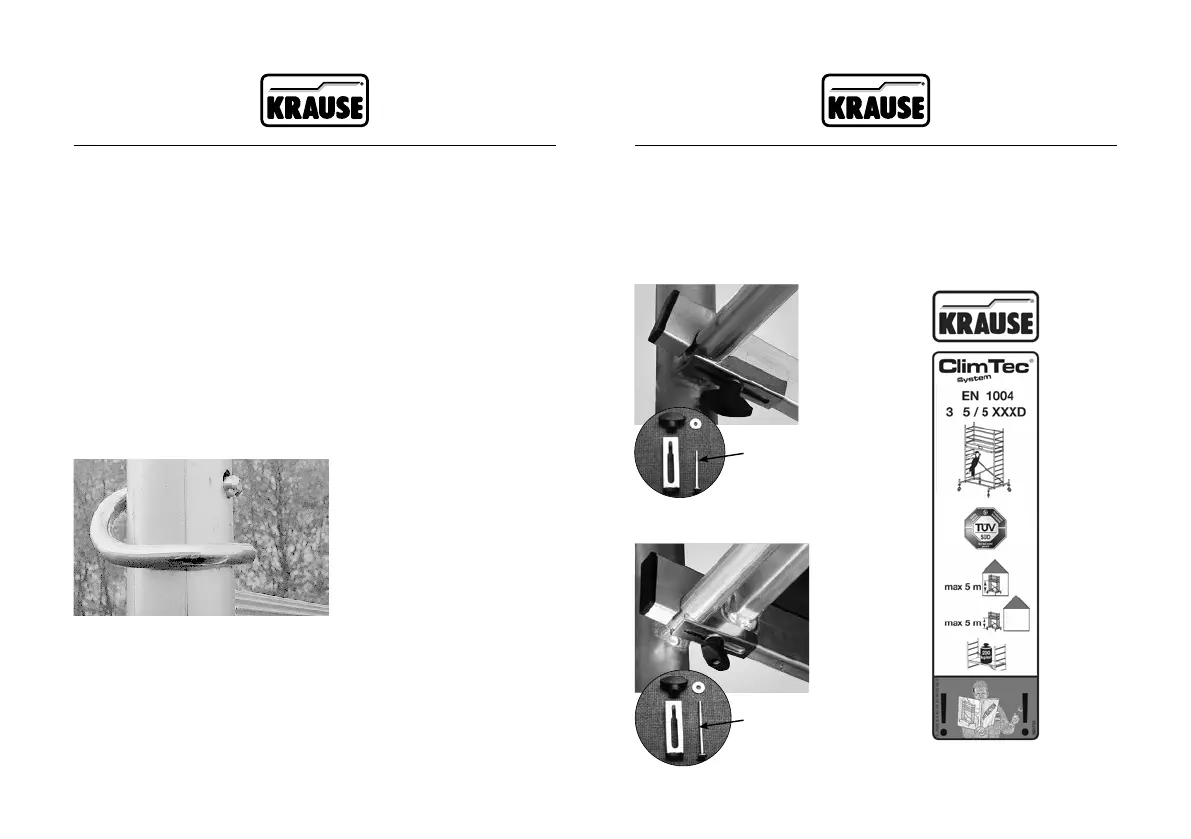

Tip for erection!
Attach securing kits to the
railing bars, diagonal braces
and boards before you erect
the scaffold!
Securing kit M5 x 65
Securing kit M5 x 85
Board
M 5 x 65 mm
M 5 x 85 mm
Identication
NOTE ON THE USE OF THE INSTALLATION INSTRUCTIONS
The installation manual describes the various installation options. Read the
entire installation manual before erecting the scaffolding and consider the different
installation options. The installation manual consists of the following chapters:
4.2 Base frame
   4.3Baseframewithrstframeelement
   4.4Baseframewithrstandsecondframeelement
4.5 Ballast load
4.6 Erection option with outrigger
4.7 Fixture of scaffold to wall
4.8 Special accessories: castor kit, height-adjustable castor kit
SAFETY INSTRUCTIONS
Depending on the height above ground of the upper accessible board, the scaffold
mighthavetobestabilisedwithballastsoroutriggers.Tondoutmore,readthe
relevant sections in chapters 4.5, 4.6 or 4.7 respectively.
All plug-type connections
must be secured with
scaffold clips.
