KRAUSE ClimTec - Basic Scaffold with

Step 4

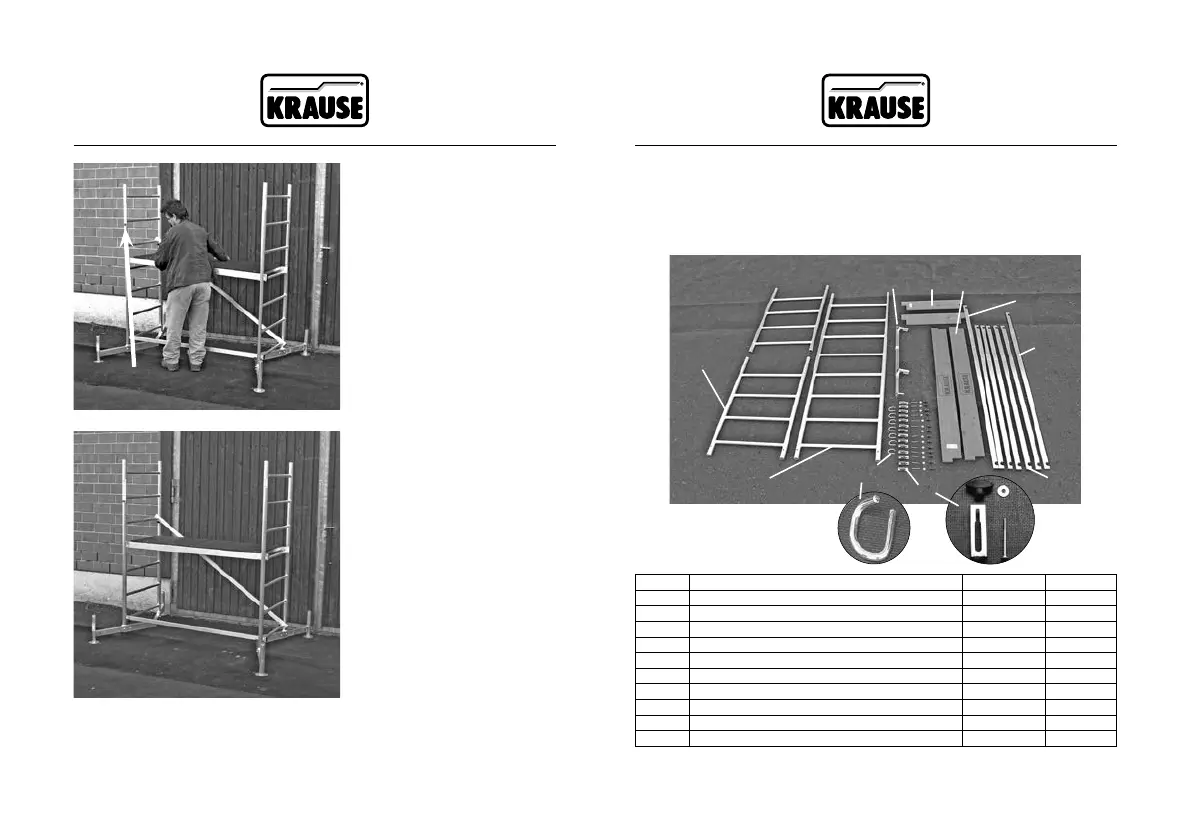

Attach the board at the 4th
rung. Secure the board with
safety sets.
This picture shows the
completely mounted base
scaffold.
With this package, the covered
platform must not be higher
than 1 m.
Basic scaffold
M 5 x 85 mm
53 54
4.3 Basic scaffold with rst extension
To assemble a scaffold with one rst extension element, you need a basic scaffold
(prod. no. 710116 / 600004) described in the previous chapter and the component
parts of the 1
st
extension (prod. no. 710130 / 600011). The pack of the
1st extension (prod. no. 710130 / 600011) consists of the following parts:
Item Description Prod. no. Quantity
1 Vertical frame 2.00 x 0.65 m 715012 1
2 Vertical frame 1.00 x 0.65 m 715029 2
3 Set of stabilisers 714305 1
4 Transversal board 0.60 m 713506 2
5 Longitudinal board 1.50 m 713001 2
6 Diagonal brace 1.89 m 712707 1
7
Diagonal rail brace 1.77 m 712813 1
8 Rail brace 1.59 m 712806 5
9 Safety set for rail brace/diagonal brace M5 x 65 mm 718860 16
10 Gravity pin 714411 7
Basicscaffoldwithrstextension
x7 x16
1
7
6
2
9
10
8
43 5
