Step-by-step installation instructions for the basic
scaffold with rst extension

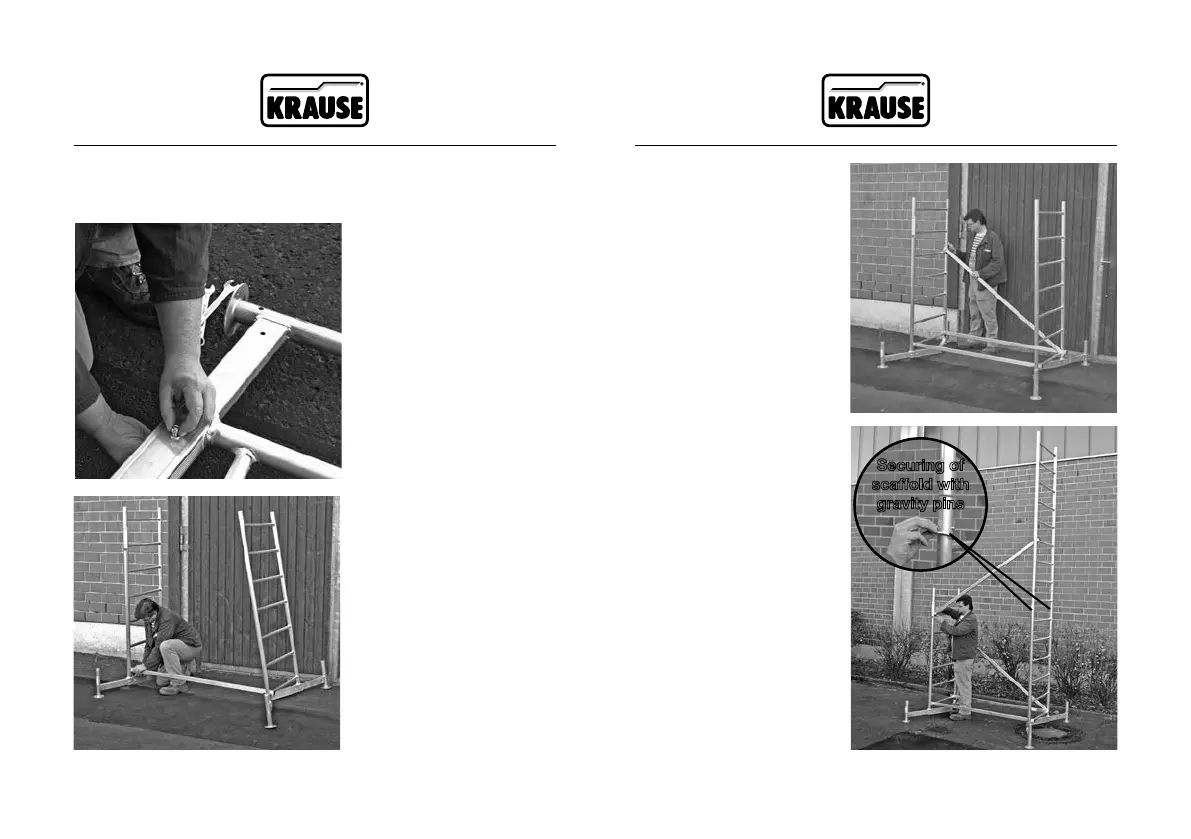

Step 1
Insert the stabilizer bars into the
basic frame and secure each of
them with 2 screw kits
(prod. no. 718891).
The maximum extension of the
girder is approx. 350 mm.
Step 2
Connect the two basic frames
with two rail braces.
Basicscaffoldwithrstextension
55 56
Step 4
Insert the vertical
frame (2.0 x 0.65 m)
into the basic frame
and secure it with
gravity pins.
Stabilise the base frame
with a diagonal brace
attached to the 6th rung on
the one side and the 10th
rung on the other side.
Secure the diagonal braces
with safety sets.
Step 3
Connect the two basic frames
with the diagonal brace,
attaching it to the lowest rung
on one side and to the 5th rung
on the other side.
Basicscaffoldwithrstextension
Securing of
scaffold with
gravity pins
