NOTE:
For the following steps 2
persons are required!

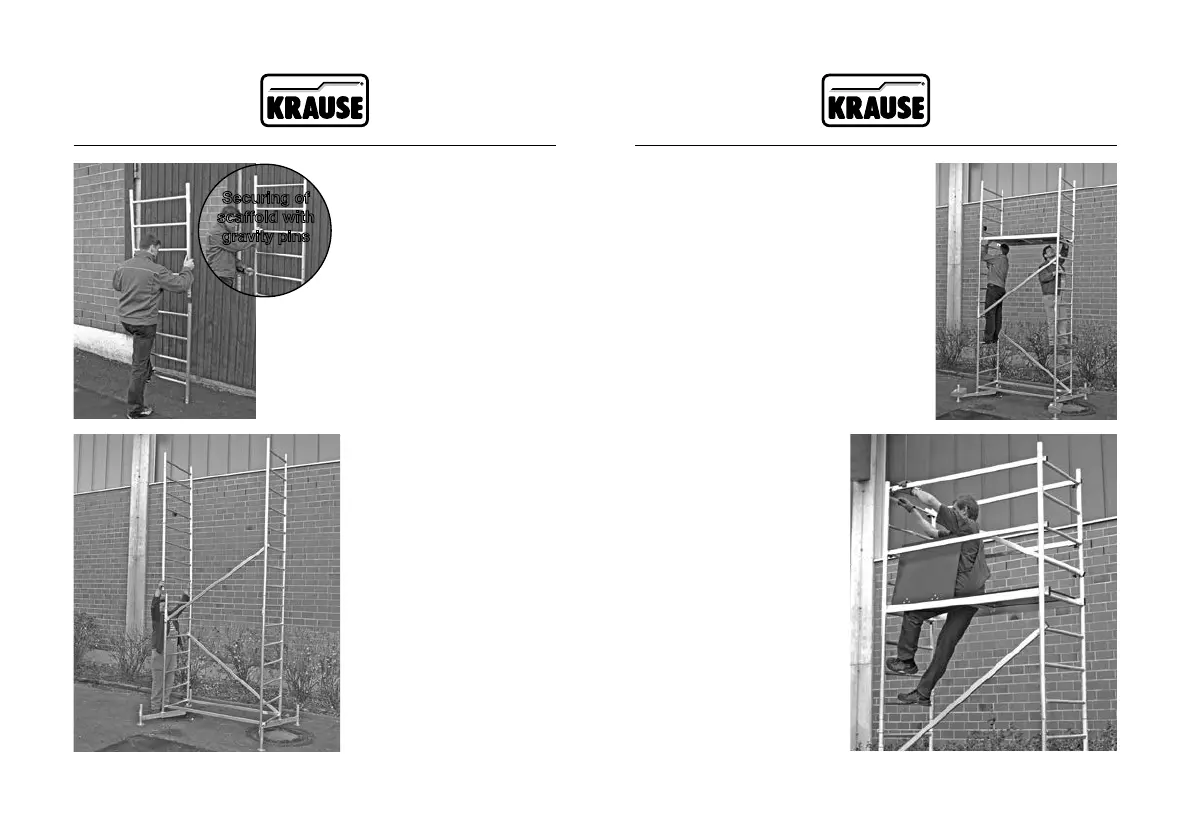

Step 6
Insert the pre-assembled ver-
tical frame into the basic frame
and secure the connection with
gravity pins.
Securing of
scaffold with
gravity pins
Step 5
Mount one vertical frame
(1.0 x 0.65 m) to the other and
secure them with gravity pins.
Basicscaffoldwithrstextension
57 58
Basicscaffoldwithrstextension
Step 7
With the assistance of a second
person,attachtheboardtothefth
rung from the top.
Secure the platform with safets sets.
Stabilise the frame with ballasts. For
this construction attach 8 ballasts
(2 per receptacle).
Step 8
Climbing half standing down in the
hatch, give the rail braces and
diagonal brace up.
Mount the rail brace
between the top rung on one side
to the 4th rung from the top on the
other side.
Attach the rail braces at the level of
the top rung and at the level of the
3rd rung from the top.
Secure all braces with safety sets.
Climb only then on the platform.
