Note:
Free-standing scaffolds must be secured against tilting with ballasts, outriggers
and stabilizing sets. For details regarding the number of required ballasts and
outriggers, refer to the table on page 71.

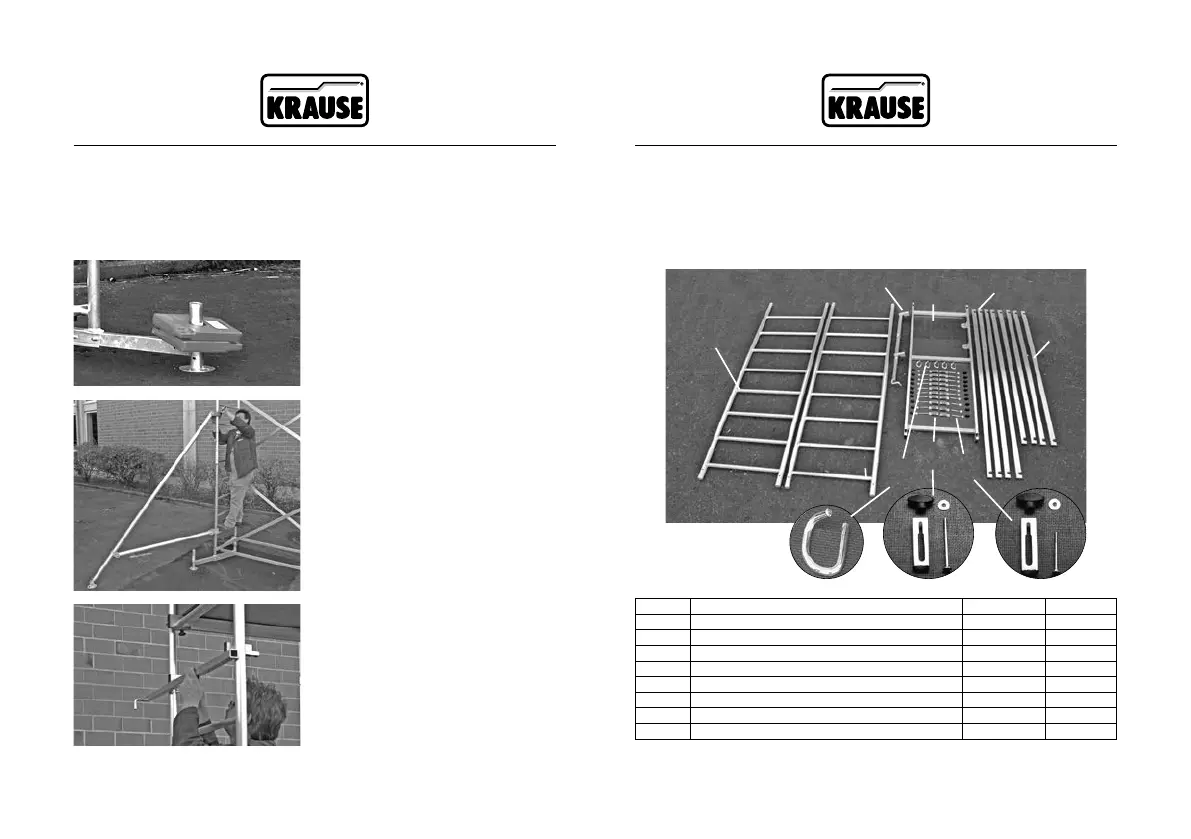

The picture shows a ballast element
on the stabilizer.
For details, see page 71
The picture shows an attached
outrigger.
For details, see page 71
The picture shows how to adjust a
stabilizing set.
For details, see page 72
61 62
x5 x18x2
1
7
6
2
4
3
5
8
4.4 Basic scaffold with rst and second Extension
To assemble a scaffold with two frame elements, you need a basic scaffold (prod.
no. 710116 / 600004), the parts of the 1
st
extension (prod. no. 710130 / 600011)
and the parts of the 2
nd
extension. The pack of the 2
nd
extension element (prod. no.
710154 / 600028) consists of the following parts:
Item Description Prod. no. Quantity
1 Vertical frame 2.00 x 0.65 m 715012 2
2 Set of stabilisers 714305 1
3 Platform with hatch 1.50 x 0.60 m 711007 1
4 Diagonal brace 1.89 m 712707 4
5 Rail brace 1.59 m 712806 4
6 Safety set for rail brace/diagonal brace M5 x 65 mm 718860 18
7 Safety set for platform M5 x 85 mm 718877 2
8 Gravity pin 714411 5
