KRAUSE ClimTec - 5 Dismantling of Scaffold; 6 Technical Data

5. Dismantling of scaffold
To dismantle the scaffold, complete the steps for assembly in reverse order.
Prod. no. Description approx. Weight
714305 Set of stabilisers 1,40 kg
714008 Sliding stabiliser (piece) 2,00 kg
712806 Rail brace 1.59 m 0,80 kg
712707 Diagonal brace 1.89 m 1,00 kg
712813
Diagonal rail brace 1.77 m 0,90 kg
715067 Basic frame with stabiliser 1.75 x 0.65 m 5,60 kg
711007 Platform with hatch 1.50 x 0.60 m 9,40 kg
713001 Longitudinal board 1.50 m 1,40 kg
713506 Transversal board 0.60 m 0,60 kg
715012 Vertical frame 2.00 x 0.65 m 4,20 kg
715029 Vertical frame 1.00 x 0.65 m 2,20 kg
718860 Safety set for rail brace/diagonal brace M5 x 65 mm 0,05 kg
718877 Safety set for platform M5 x 85 mm 0,06 kg
718891 Set of screws for ClimTec stabiliser M8 x 50 mm 0,03 kg
714411
Gravity pin 0,06 kg
714107 Castor Ø 125 mm (piece) 1,40 kg
714169 Set of castors Ø 125 mm 6,00 kg
914101 Castor Ø 150 mm (piece) 3,40 kg
914309 Set of castors Ø 150 mm, height-adjustable 14,0 kg
704306 Ballast weight 10 kg 10,0 kg
714039 Outrigger 7,20 kg
6. Technical data
Product numbers and weights of parts
Installation of castors
Before assembly the scaffold,
insert the castor elements into
the guide tubes of the traverse.
Secure them with gravity pins.
SAFETY INSTRUCTIONS
Ensure that the brakes of the
castors are always applied,
except when you wish to move
the scaffold.
Brake lever up =
brake released
Brake lever down =
brake applied

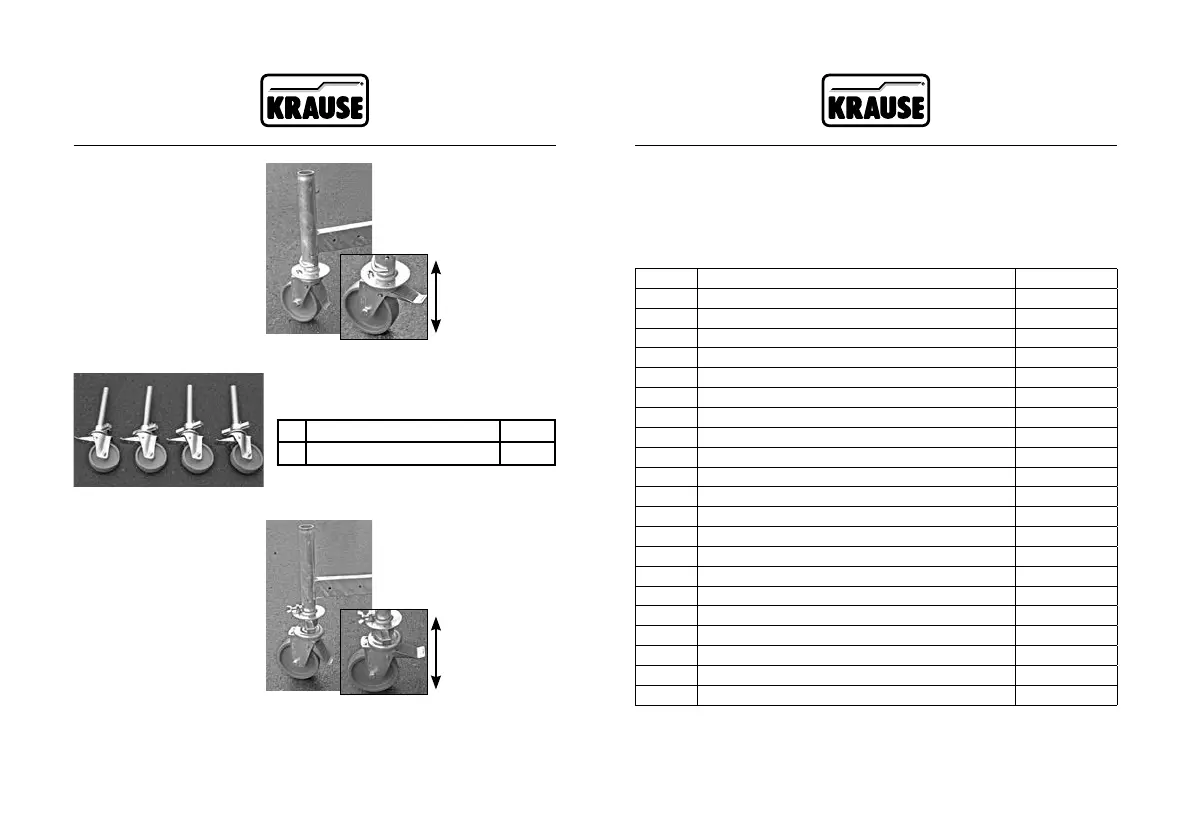

The vertically adjustable castors,
Art. No. 914309, consist of the following parts:
Item Description Quantity
1
Castor, Ø150 mm, vertically-adjustable
4
SAFETY INSTRUCTIONS
Ensure that the brakes of the
castors are always applied,
except when you wish to move
the scaffold.
Brake lever up =
brake released
Brake lever down =
brake applied
Installation of castors
Remove the wing screws from
the securing tabs. Before
assembly the scaffold, insert
the castor elements into the
guide tubes of the traverses
that the securing tabs protrude
through the recesses in the
base plates. Tighten the wing
screws to secure the castors
to the scaffold.
