KRAUSE ClimTec - Assembly of Basic Scaffold

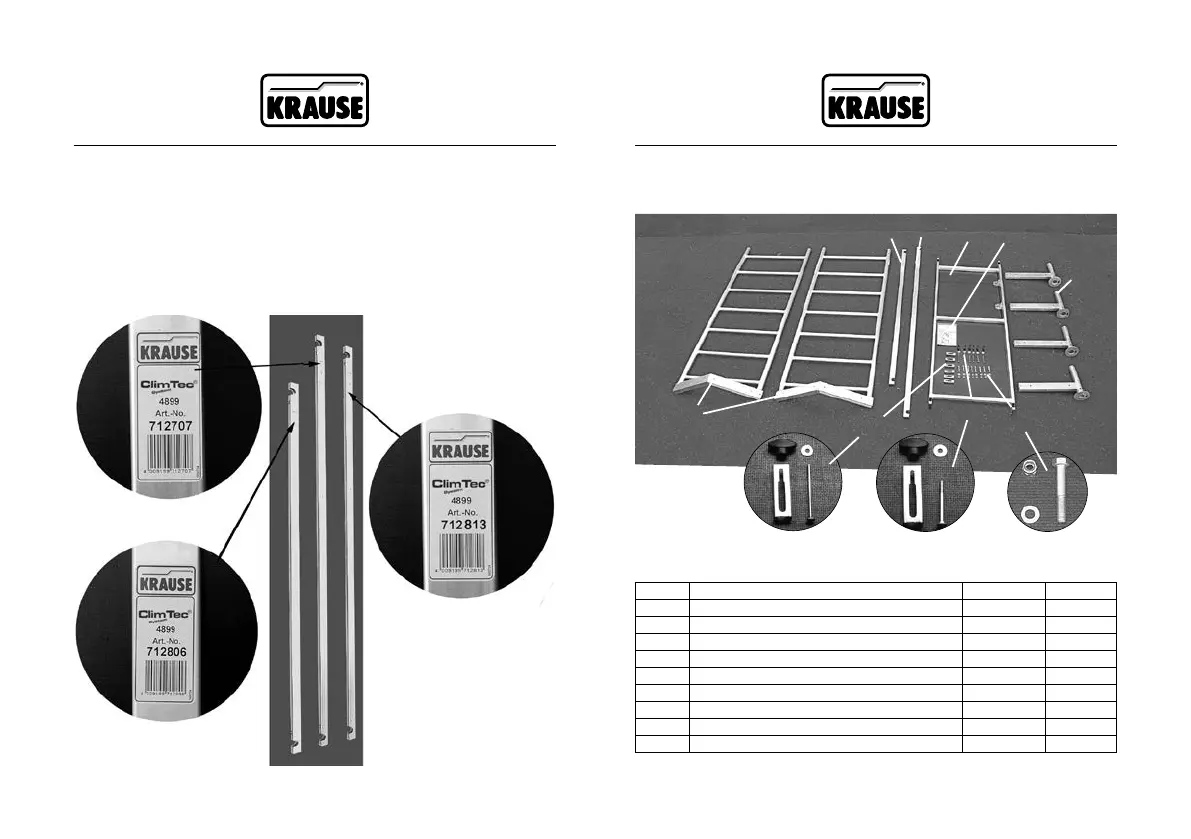

Risk of confusion of parts
The railing sections and diagonal braces are made from the same tubing and differ
only in length, as the diagonal rail is approx. 30 cm longer.
Thepartsarehoweverclearlyidentiedbytheirproductnumbersprintedonthe
type plates:
Diagonal rail, approx.
1.89 m, Prod. no. 712707
Railing bar, approx. 1.59 m
Prod. no. 712806
Railing brace, approx. 1.77 m
Prod. no. 712813
x8
x2
x4
1
7
2
4
3
5
8
9
6
4.2 Assembly of basic scaffold
Basic pack (prod. no. 710116 / 600004)
The basic pack (prod. no. 710116 / 600004) consists of the following parts:
Item Description Prod. no. Quantity
1 Basic frame with stabiliser 1.75 x 0.65 m 715067 2
2 Rail brace 1.59 m 712806 1
3 Diagonal brace 1.89 m 712707 1
4 Platform with hatch 1.50 x 0.60 m 711007 1
5 Installation manual 560705 1
6 Sliding stabiliser (piece) 714008 4
7 Set of screws for ClimTec stabiliser M8 x 50 mm 718891 8
8
Safety set for rail brace/diagonal brace M5 x 65 mm 718860 4
9 Safety set for platform M5 x 85 mm 718877 2
Basic scaffold
49 50
