Step-by-step installation instructions for the
base scaffold

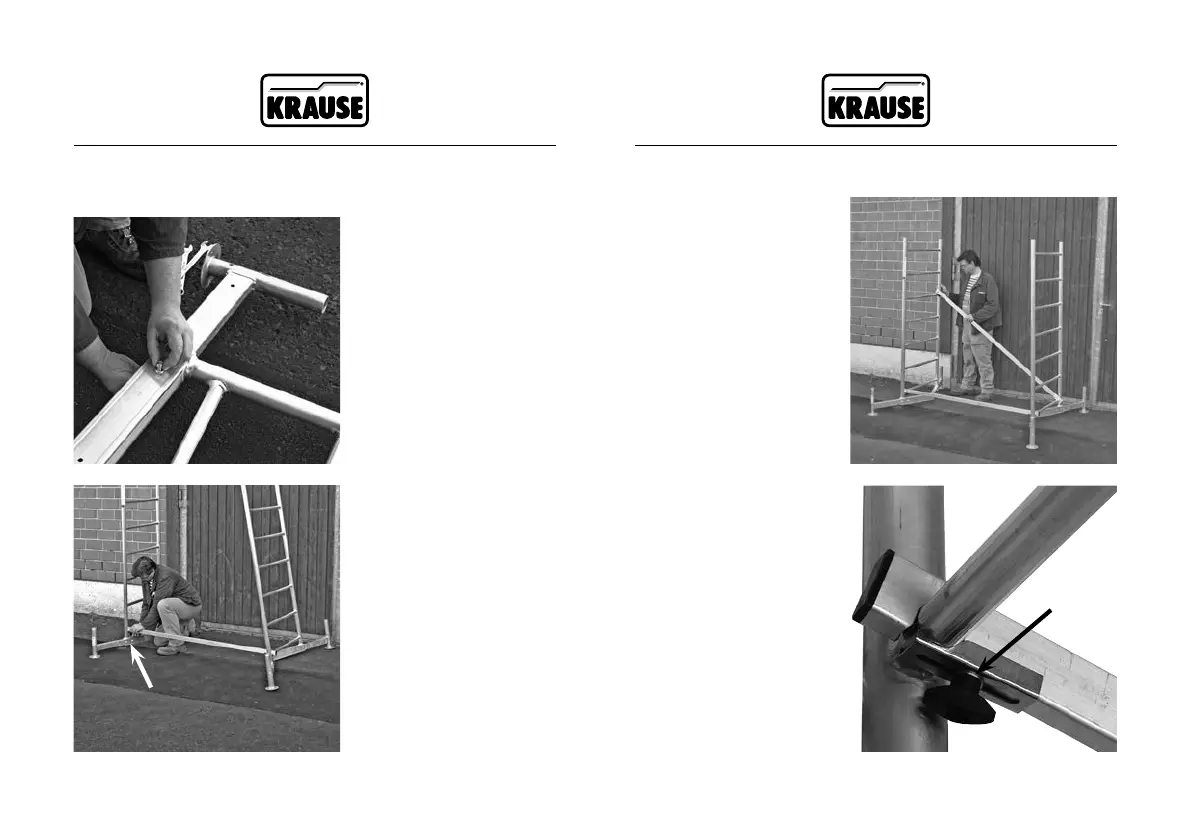

Step 1
Insert the stabilizer bars into the
base frame and secure each of
them with 2 screw kits
(prod. no. 718891).
The maximum extension of the
girder is approx. 350 mm.
Step 2
Connect the two base
frames with the railing
brace.
Basic scaffold
M 5 x 65 mm
M 5 x 65 mm
Basic scaffold
Step 3
Connect the two base frames
with the diagonal brace,
attaching it to the lowest rung
on one side and to the 5th rung
on the other side.
IMPORTANT:
Ensure that the braces are
properly secured to the run-
gs by mounting the securing
kits as shown in the picture.
Tighten the wing nut.
Secure all rail and
diagonal braces as well
as the board with
safety sets!
