Maintenance
84
Pos: 29.1 /Überschri ften/Überschri ften 2/A-E/Druc kspeicher @ 38\mod_126570562926 1_78.docx @ 349236 @ 2 @ 1
10.16 Accumulator (optional)
Pos: 29.2 /BA/Sic herheit/Hydraulik/G efahr Unter hohem Druck ste hende Flüssigkeite n. @ 38\mod_1265808735198_7 8.docx @ 349461 @ @ 1
DANGER! – Liquids under high pressure.
Liquids penetrate the skin and cause serious injuries.
• Repair work on the hydraulic system may be performed by specialist workshops only.
Pos: 29.3 /BA/War tung/Druckspeicher /GEFAHR! – Vorgespannte Ener giespeicher ( Feder, Druckspeicher , Hydraulikzylinder) . @ 38\mod_1265808828870_ 78.docx @ 349485 @ @ 1
DANGER! – Pretensioned energy stores (spring, accumulator, hydraulic cylinder).
Death or serious injuries.
Before working on the system, release the oil pressure.

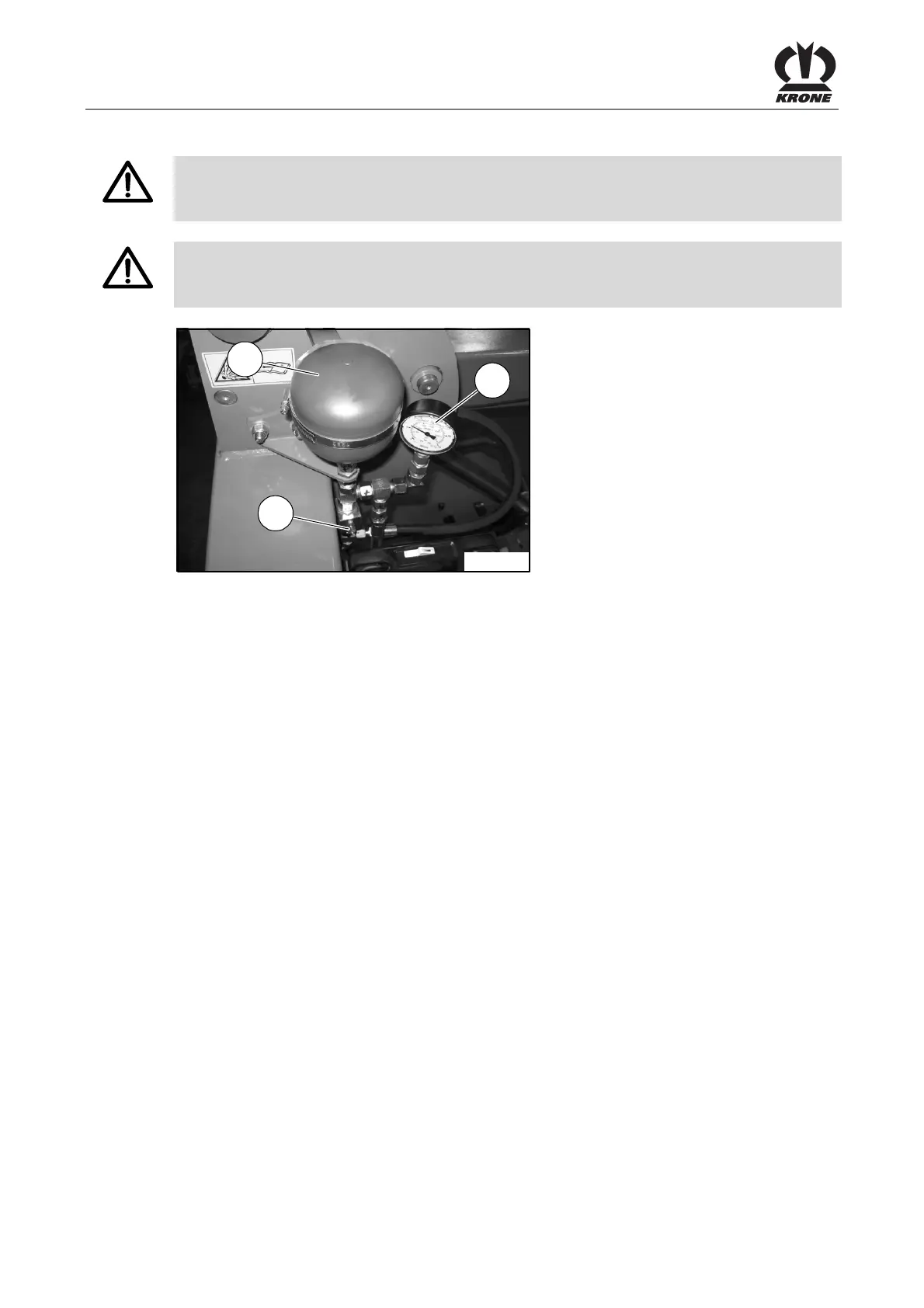

Pos: 29.4 /BA/War tung/Druckspeicher /Druckspeicher Bi ld EC2801 / EC 3201 @ 38\mod_126580954 4605_78.docx @ 349560 @ @ 1
1
EC-309-0
2
3
Fig.57
Pos: 29.5 /BA/War tung/Druckspeicher /keine mechanischen Bear beitungen Schweiß- Lötarb eiten vornehmen @ 38\ mod_1265808920745_78. docx @ 349509 @ @ 1
Do not perform any welding or soldering work or any mechanical processing on the accumulator
(1). The accumulator (1) is filled with nitrogen.
Pos: 29.6 /BA/War tung/Druckspeicher /Druckspeicher Ei nführtext @ 38\mod_12658098 24433_78.docx @ 349584 @ @ 1
The amount of pressure in the accumulator (1) specifies the time sequence for lifting of the
mowing unit and subsequent raising of the machine into the transport position. Therefore, a
certain pressure must be set depending on the machine type (see table below). The pressure
can be read off on the pressure gauge (2).
