FC313RF
38

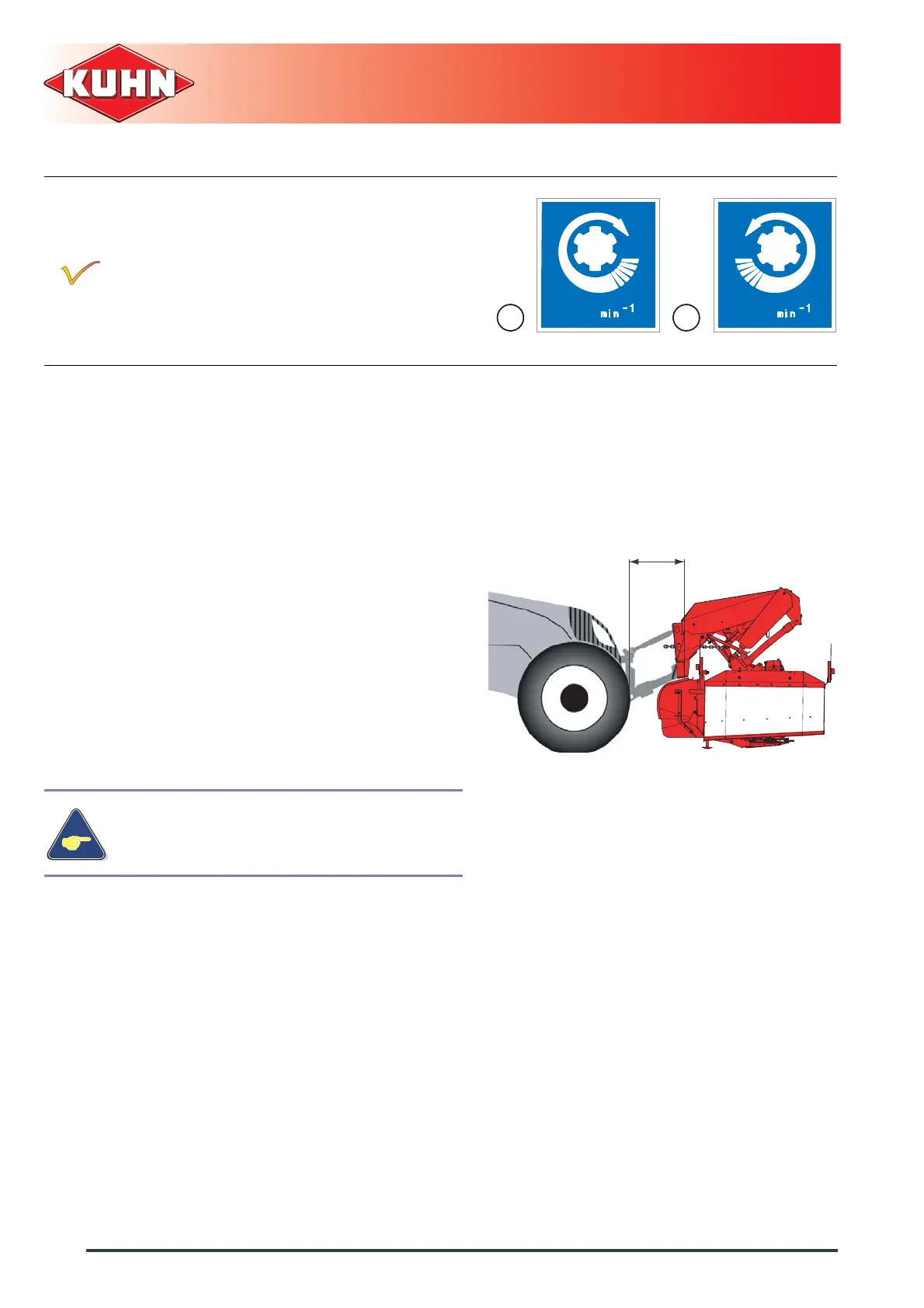

6. - Putting into service
KN021BGB K
Mower conditioner
Mowing unit
The mowing unit can be mounted on the headstock
in a forward or backward position
(L = 150 mm (5.9’’)).
- Connect the hydraulic hose to the single acting
valve with float position.
- Open the valve using 18 box spanner supplied with
the machine.
- Release pressure until the gauge needle reads
0 bar (0 psi).
Replace safety decal (1) with safety decal (2)
(Supplied with the machine).
Check that the two cutterbar end discs rotate
inwards.
1000
099151001
1
- Adjust the mowing unit in forward position when the
distance A between the tractor front wheels and the
front part of the "A" frame coupler is below
450 mm (1’5’’).
Fully depressurize the hydro-pneumatic
accumulators before carrying out any
modification to set the machine in forward or
backward position.
