KUHN FC313RF - Coupling the Machine

FC313RF
40
6. - Putting into service
KN021BGB K
Mower conditioner

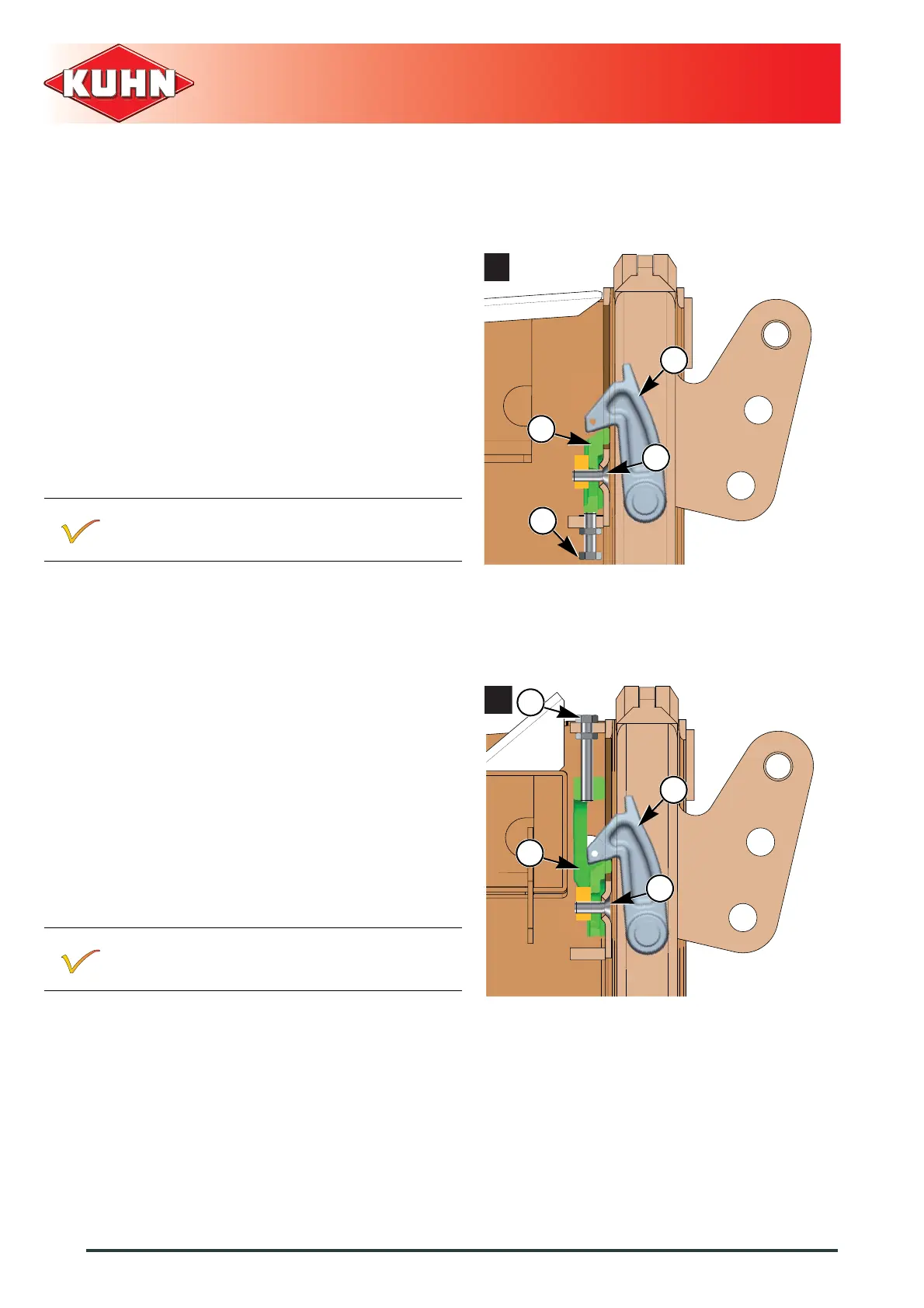

 "A" frame lock adjustment (3 possibilities)
Coupling device a
- Loosen the stop mounting screw (1).
- Couple the machine to the tractor.
- Rotate adjusting screw (3) until stop (2) contacts
latch (4).
- Check that latch is free to operate by pulling lever.
If operation is difficult untighten adjusting screw
1/2 a turn.
- Uncouple machine from tractor.
- Tighten lock nut of adjusting screw.
- Tighten lock nut of stop mounting screw.
Regularly check that stop is adjusted correctly,
especially each time the mower is adapted to a
new "A" frame coupler. Readjust if necessary.
3
1
2
4
a
Coupling device b
- Loosen the stop mounting screw (1).
- Couple the machine to the tractor.
- Rotate adjusting screw (3) until stop (2) contacts
latch (4).
- Check that latch is free to operate by pulling lever.
If operation is difficult untighten adjusting screw
1/2 a turn.
- Uncouple machine from tractor.
- Tighten lock nut of adjusting screw.
- Tighten lock nut of stop mounting screw.
Regularly check that stop is adjusted correctly,
especially each time the mower is adapted to a
new "A" frame coupler. Readjust if necessary.
1
2
4
b
3
