KUHN FC3160 TCD - Page 63

8. - Instructions for work
FC3160-3560-4060 TCD
63
KN284EGB_A
Mower conditioner

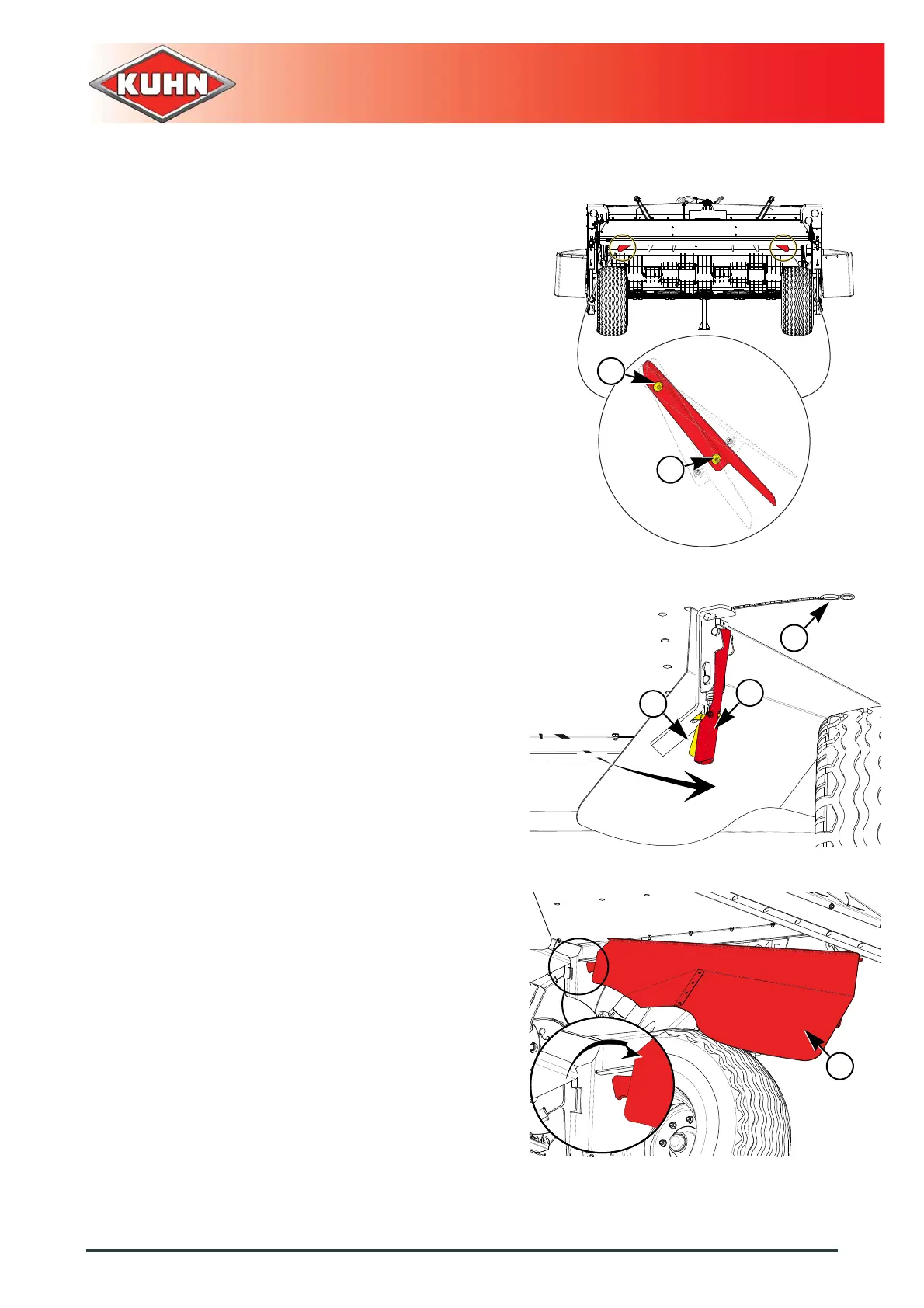

Adjustment of the spreading fins:
- Remove screw (1).
- Loosen screw (2).
The spreading fin angle is obtained by means of bolt
(1) and a multi-hole plate.
- Reinstall screw (1).
- Tighten bolt (2).

To switch from swathing mode to wide
spreading mode
- Press lock (1) to release the handle.
- Lift handle (2):
- Pivot swath shield until lock engages in hole (3).
- Remove swath shield (1).
- Proceed the same way on the other side.
