8. - Instructions for work
KN284EGB_A
Mower conditioner

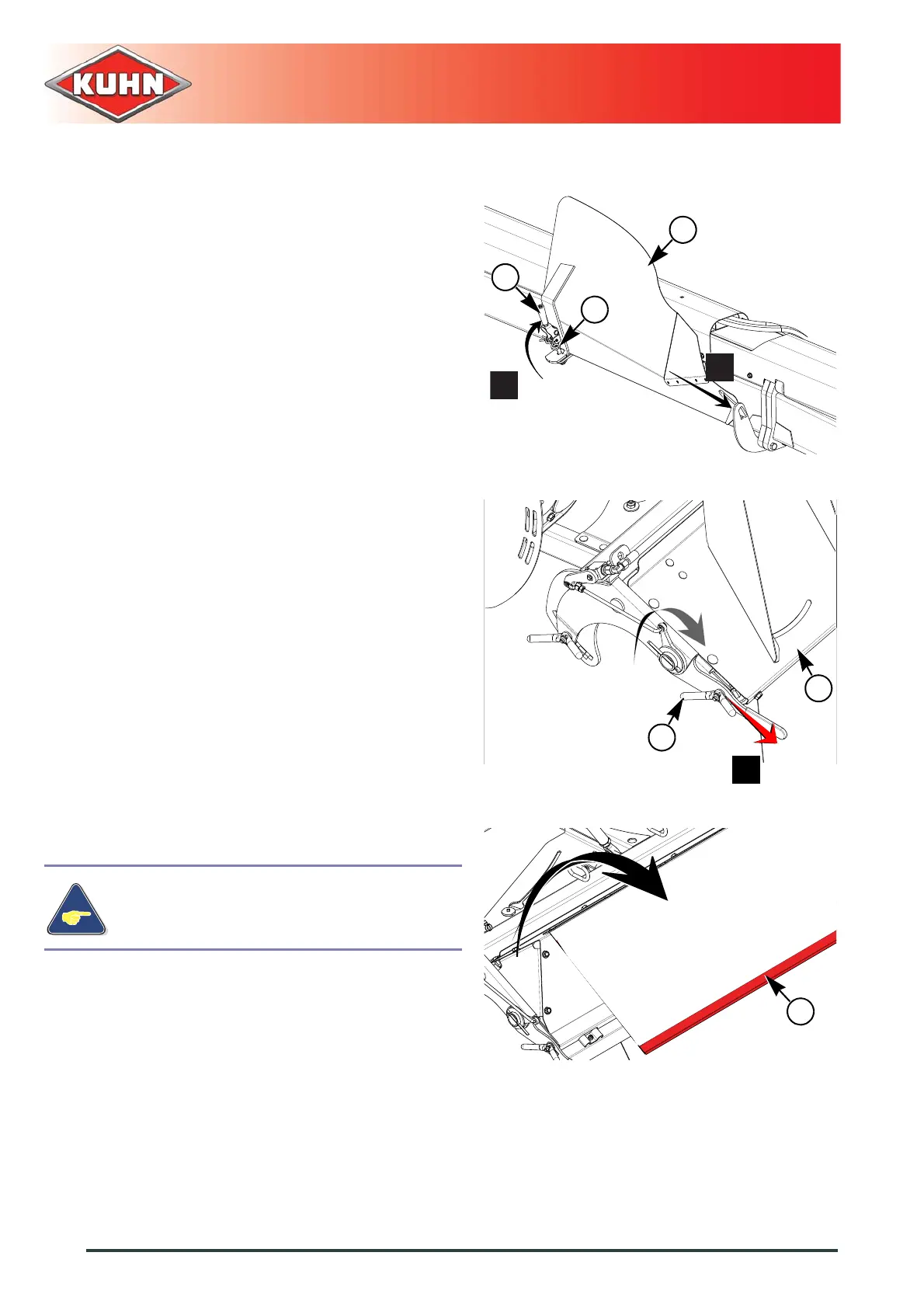

- Raise swath shield (1) on the drawbar:
- Insert shield hood in the hole (a).
- Lift handle to lock the shield to the drawbar
holder (b).
- Reinstall R-clip (1).
- Proceed the same way on the other side.
- Loosen butterfly nut (1).
- Slide the screw along oblong hole (a) to unlock
the wide spreading device.
- Pivot the wide spreading device (2).
- Lock the wide spreading device using the screw
and tighten wing nut (1).
- Tip cover (1) over the wide spreading device.
This step allows preventing premature wear
of the cover as well as a reduction of the wide
spreading system's efficiency.
1
a
b
2
3
1
a
2
1
