11. - Maintenance and storage
KN284EGB_A
Mower conditioner

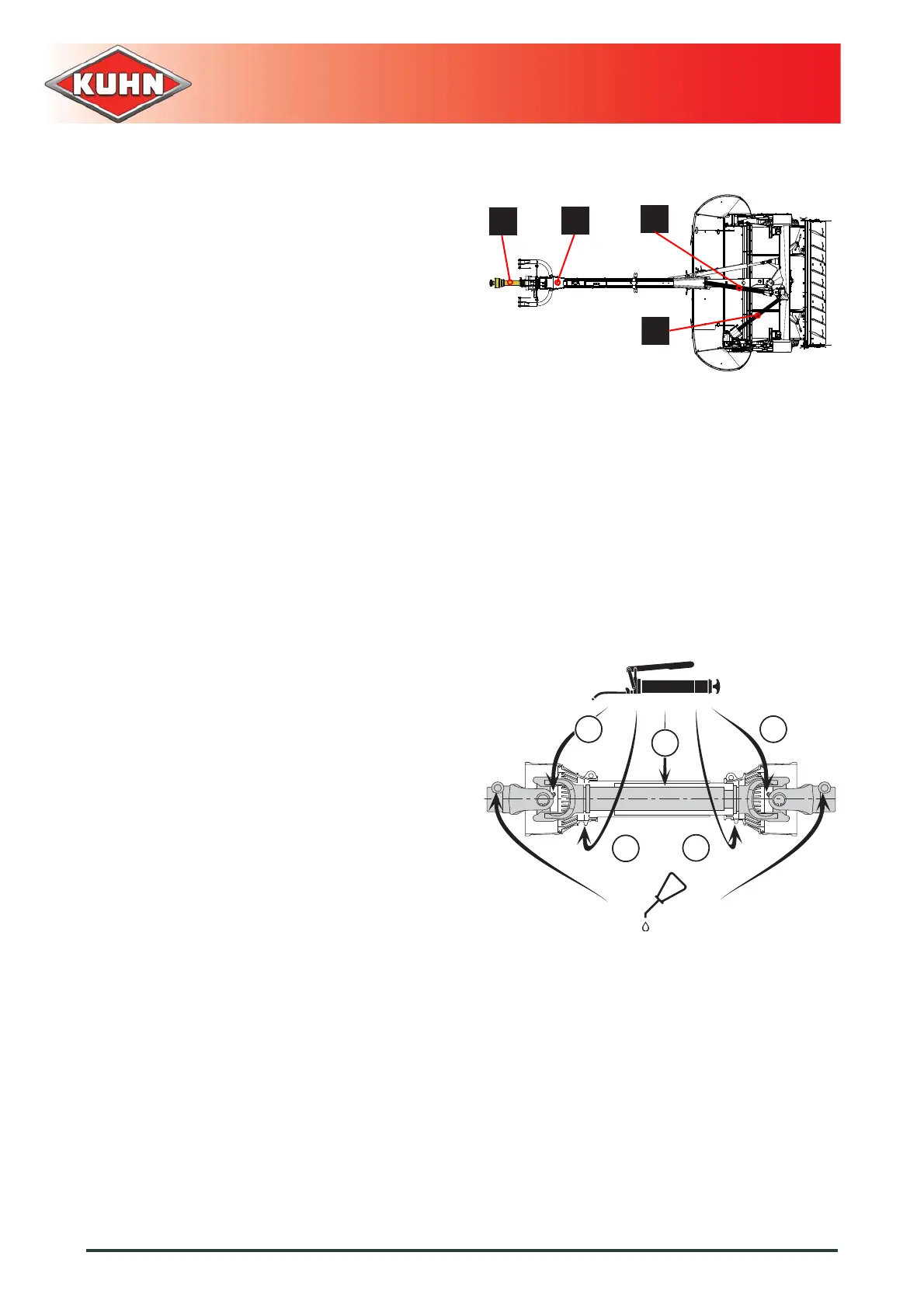

 Primary PTO shaft (a)
- Every 50 hours:
• universal joints (1).
• transmission tube (2).
• Guide rings (3).

Universal joint assembly (b)
- Every 50 hours:
• universal joints (1).

Intermediate PTO shaft 1 (c)
- Every 20 hours:
• universal joints (1).
• transmission tube (2).
• Guide rings (3).

Intermediate PTO shaft 2 (d)
- Every 20 hours:
• universal joints (1).
• transmission tube (2).
• Guide rings (3).
Primary PTO shaft
a
b
c
d
11
3
3
2
