FC3160-3560-4060 TCD
80
11. - Maintenance and storage
KN284EGB_A
Mower conditioner

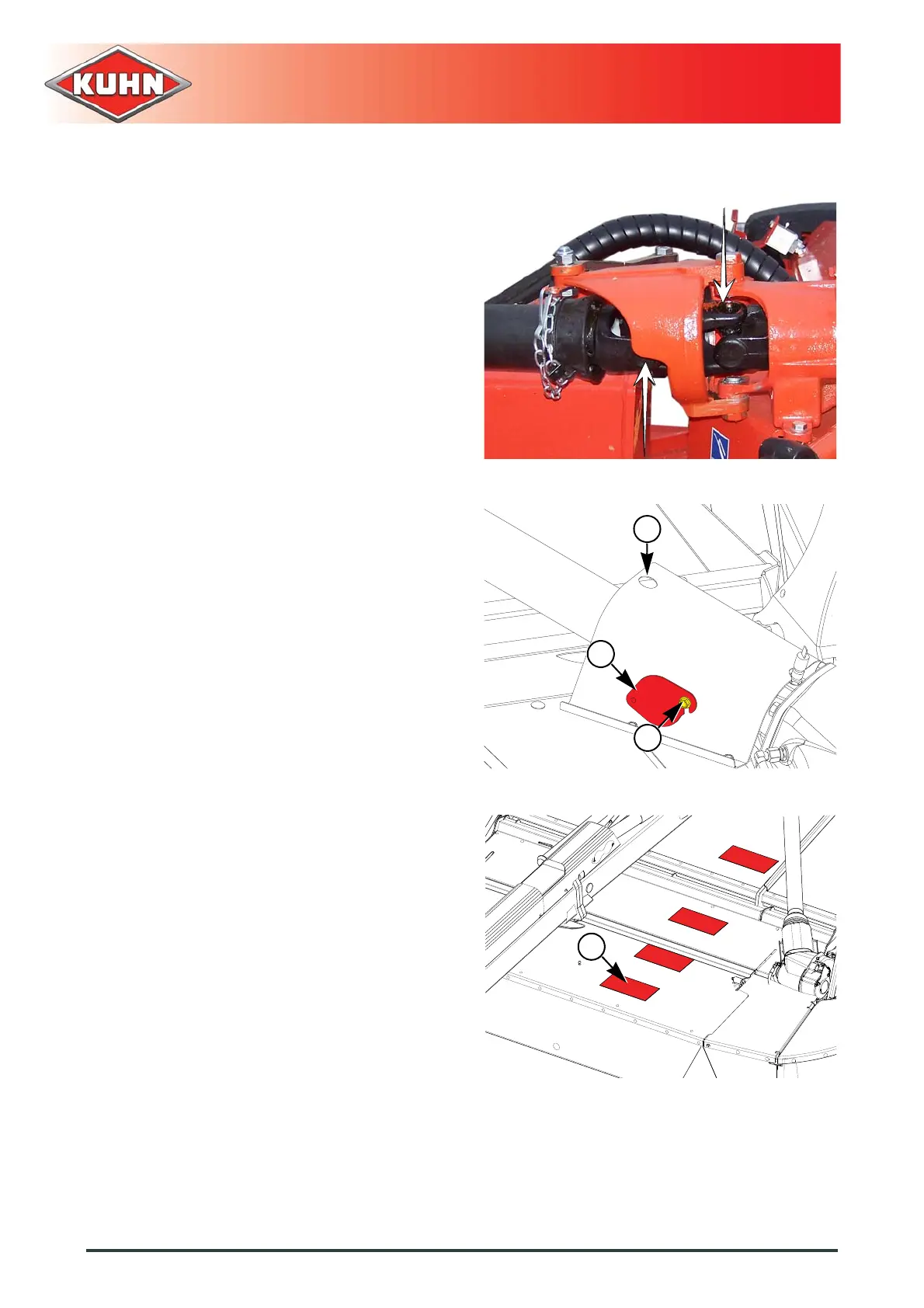

- Grease the U-joints.
Intermediate PTO shaft 2(d):
- Loosen screw (1).
- Pivot cover (2) to access greaser.
- Grease PTO shaft U-joint.
- Reinstall cover plate.
A hole (3) is located on the upper part of the guard
to access the greaser of the drive shafts.
- Grease:
• Drive shaft tubes.
- Step on the self-adhesive non-slip patches (1) to
access the other greasers.
1
2
3
1
