11. - Maintenance and storage
FC3160-3560-4060 TCD
83
KN284EGB_A
Mower conditioner

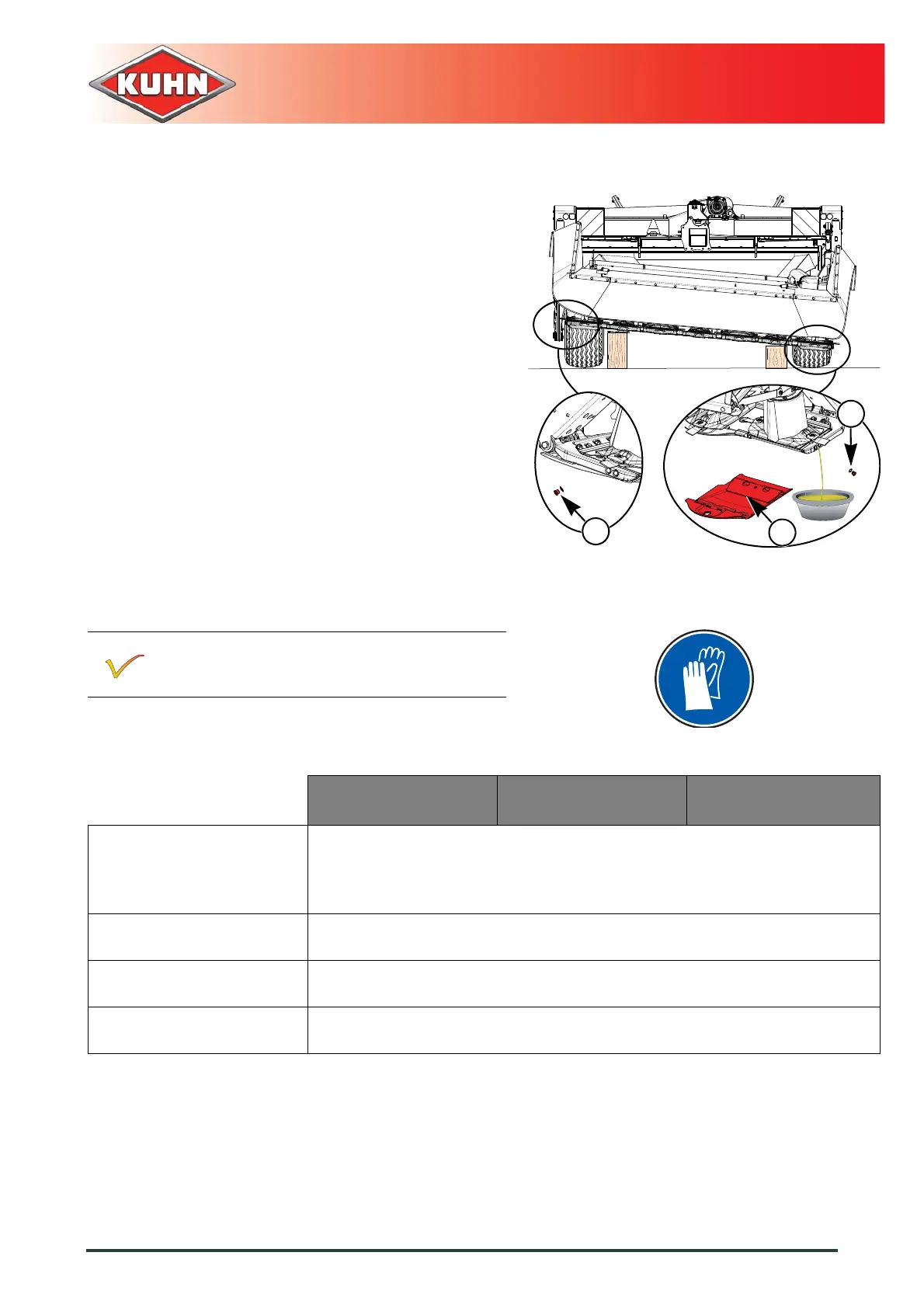

From the transport position:
- Unlock and raise side guards.
- Using two wedges of different height, rest the
cutterbar higher on opposite side of drain plug.
- Remove skid shoe (1).
- Place a container of sufficient capacity under drain
plug.
- Remove filler plug (2) and its washer.
- Remove drain plug (3) and its washer.
- Allow oil to drain completely.
- Wait for dripping to stop.
- Clean and reinstall drain plug (3) and its
washer. Replace if necessary.
- Pour the correct oil quantity and quality through the
opening of the filler plug.
- Clean and reinstall filler plug (2) and its
washer. Replace if necessary.
- Reinstall skid shoe (1).
- Lower and lock side guards.
Gearbox
- Before draining oil, operate the machine for a
few minutes so that the oil warms up.
FC3160TCD FC3560TCD FC4060TCD
Type of oil Gear oil.
When changing the oil, it is recommended to use either an identical mineral oil or
a synthetic oil of type PAO (Poly-Alpha-Olefine) with viscosity grade SAE 80W90.
Oil volume 1.2-L (0.32 US gal)
Viscosity SAE 80W90
Specification API-GL5 (extreme pressure)
