FC3160TCD-3560TCD-4060TCD
102
11. - Maintenance and storage
KN284DGB B
Mower conditioner

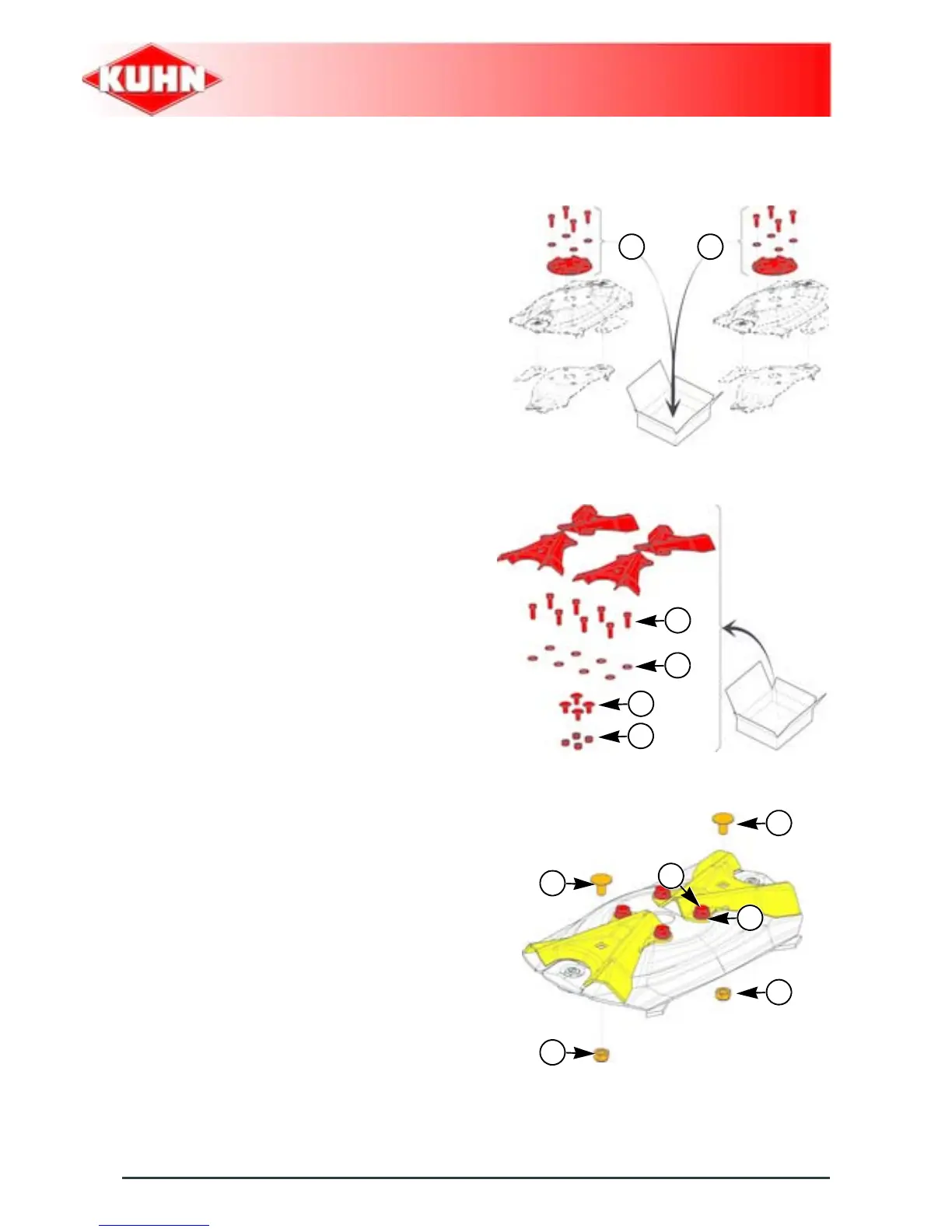

- Store parts (3) in a box:
• These parts are required for refitting the disk
without the lifters.
3 3
- Remove parts from the package:
• 4 lifters.
• 8 (4) screws (M12 x 30).
• 8 washers (5).
• 8 (6) screws (TBCC M12).
• 8 nuts (7).
4
5
6
7
- Place lifters on the disk.
- Insert the 4 screws (4) and washers (5).
- Reinstall bolts (6) and nuts (7):
• Torque: 12.5 daN m (92.2 lbf ft).
5
4
6
7
6
7
