11. - Maintenance and storage
FC3160TCD-3560TCD-4060TCD
107
KN284DGB B
Mower conditioner
The splines are spaced at approximately 17°.
Prior to reassembly, coat surface (1) with
graphite grease.

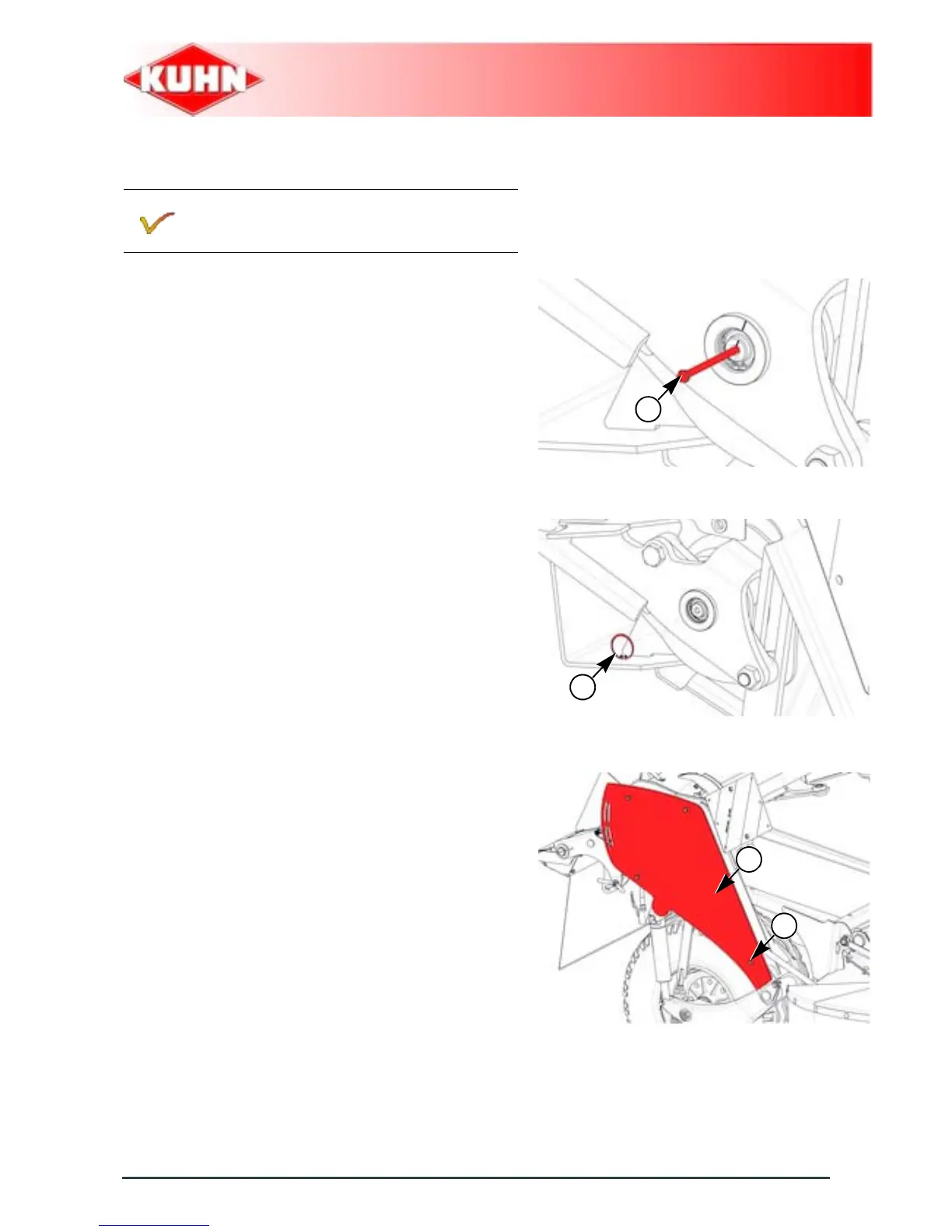

- Remove screw (1).
1
- Reinstall retaining ring (1).
1
- Reinstall hood (2).
- Reinstall the 4 bolts (1).
1
2
