11. - Maintenance and storage
FC3160TCD-3560TCD-4060TCD
111
KN284DGB B
Mower conditioner

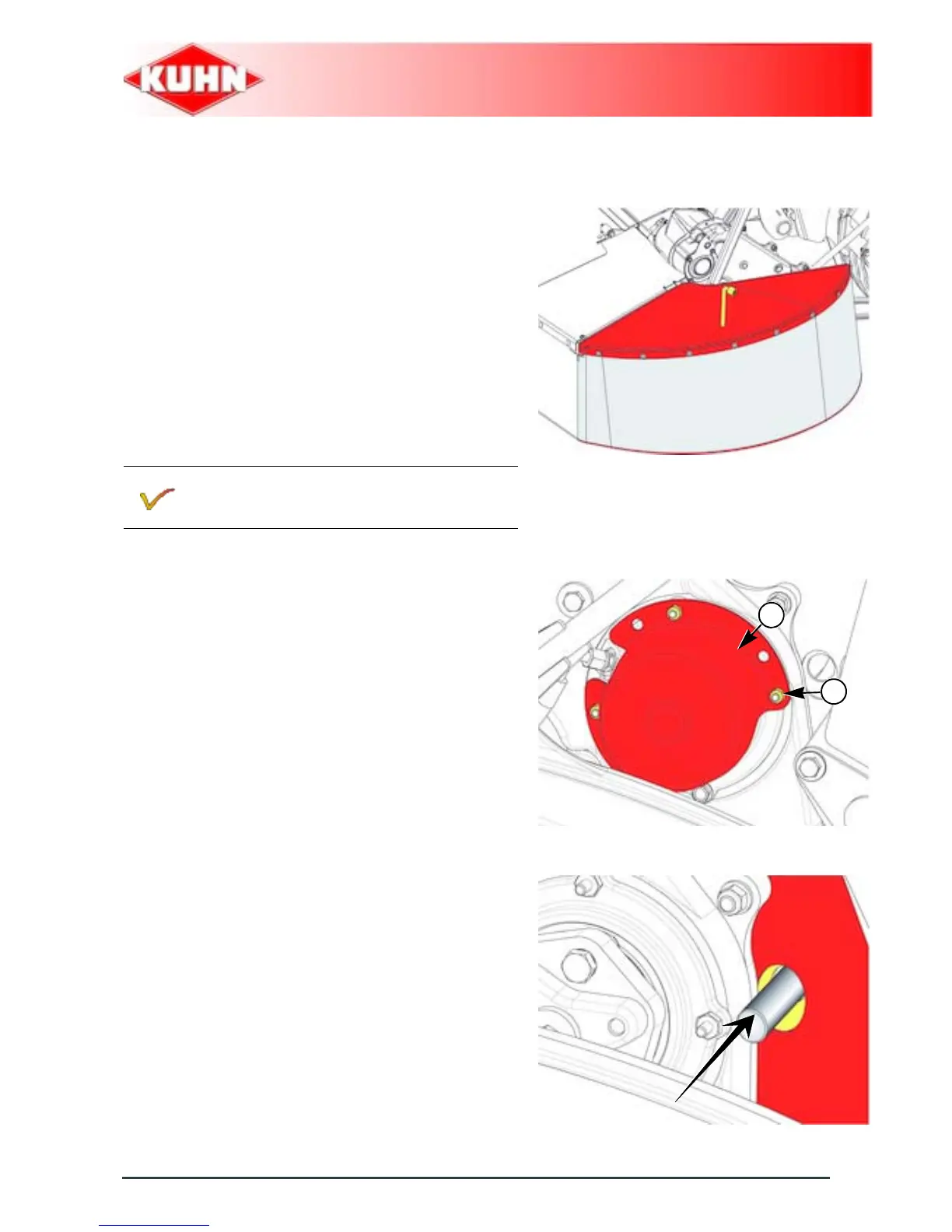

- Release and lift side guard using 18mm box
spanner supplied with the machine.
Intervene on the pitch angle adjustment rod for
easier access to the guard.
- Remove the 3 nuts (1).
- Remove guard (2).
2
1
- Block conditioning rotor rotation.
