8. - Instructions for work
FC3160TCD-3560TCD-4060TCD
61
KN284DGB B
Mower conditioner

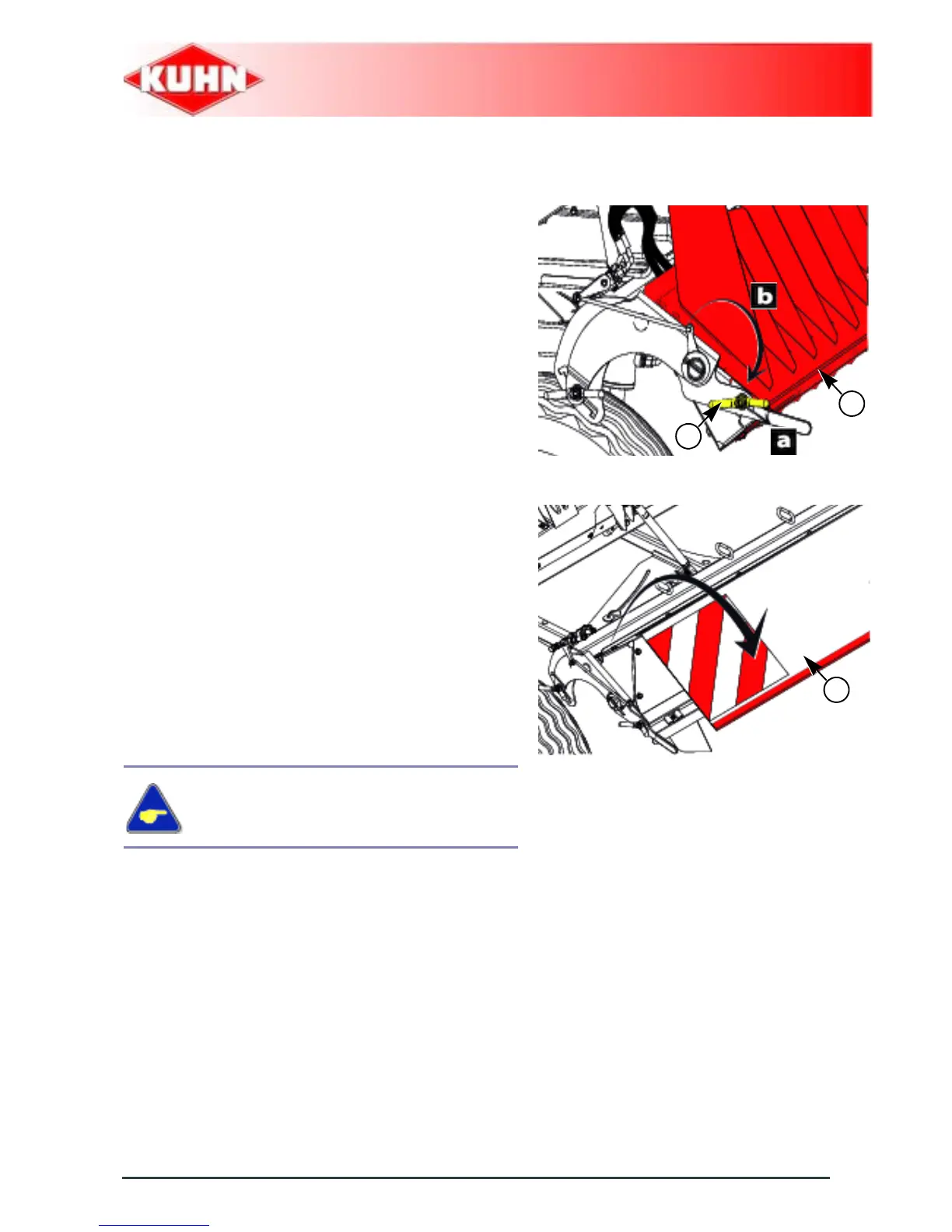

- Loosen butterfly nut (1).
- Slide the screw along oblong hole (a) to unlock
the wide spreading device.
- Pivot the wide spreading device (2).
- Lock the wide spreading device using the screw
and tighten wing nut (1).
1
2
- Tip cover (1) over the wide spreading device.
1
This step allows preventing premature wear
of the cover as well as a reduction of the wide
spreading system's efficiency.
