FC3160TCD-3560TCD-4060TCD
62
8. - Instructions for work
KN284DGB B
Mower conditioner

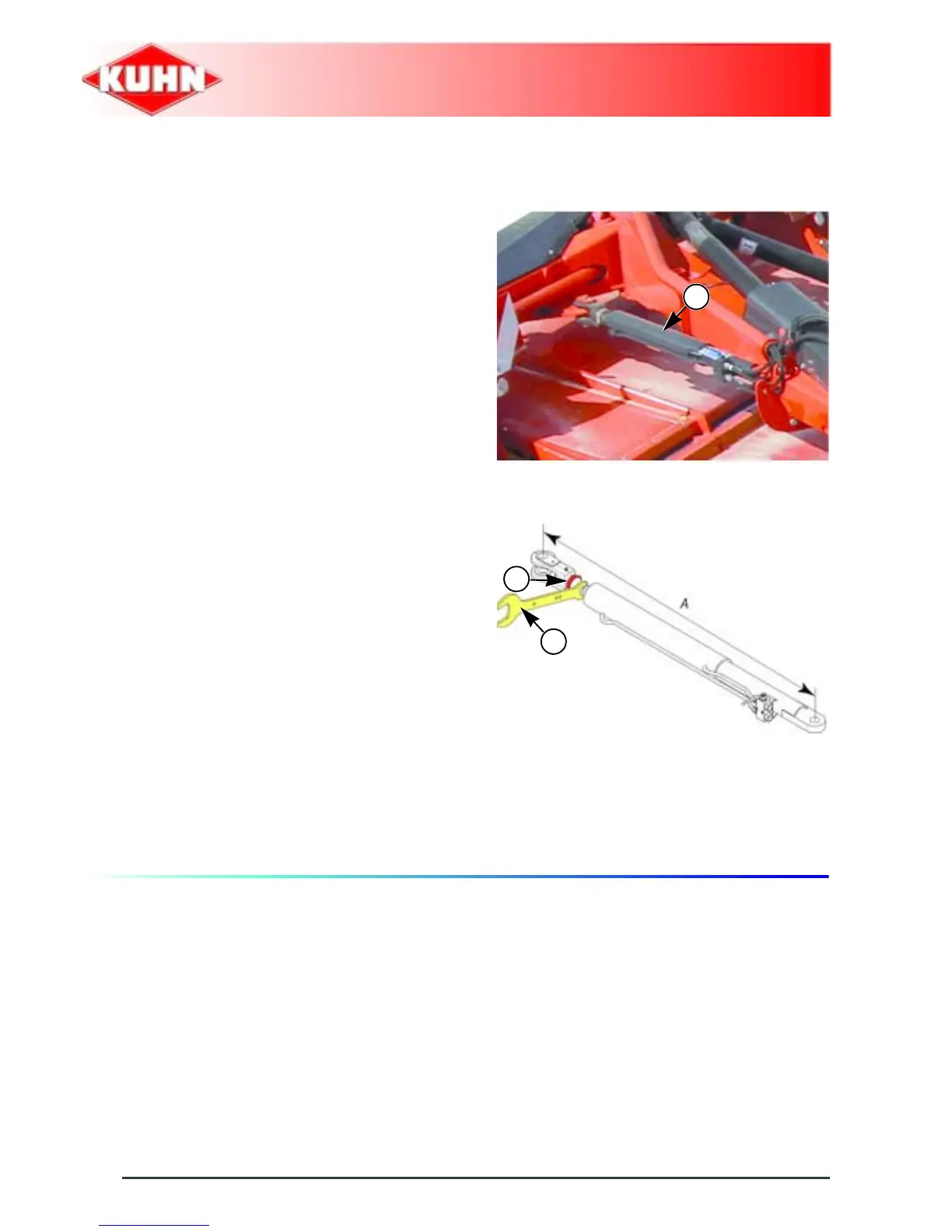

Drawbar shift cylinder length
The machine is in wide spreading configuration.
To switch from wide spreading mode to
swathing mode
- Carry out the procedure in reverse.
- Activate tractor hydraulic valve to fully retract the
shift cylinder rod (1).
- Check that measure A corresponds to 1410 mm
(4’7.51’’).
Readjust if necessary:
- Loosen counter nut (1).
- Rotate cylinder rod using wrench (2) to adjust
the length.
- Tighten counter nut (1).
