KUHN GMD16 - Attachment category 1 linkage; Attachment category 2 linkage

GMD16-GMD20
44
6. - Putting into service
KN225BGB_A
Disc mower

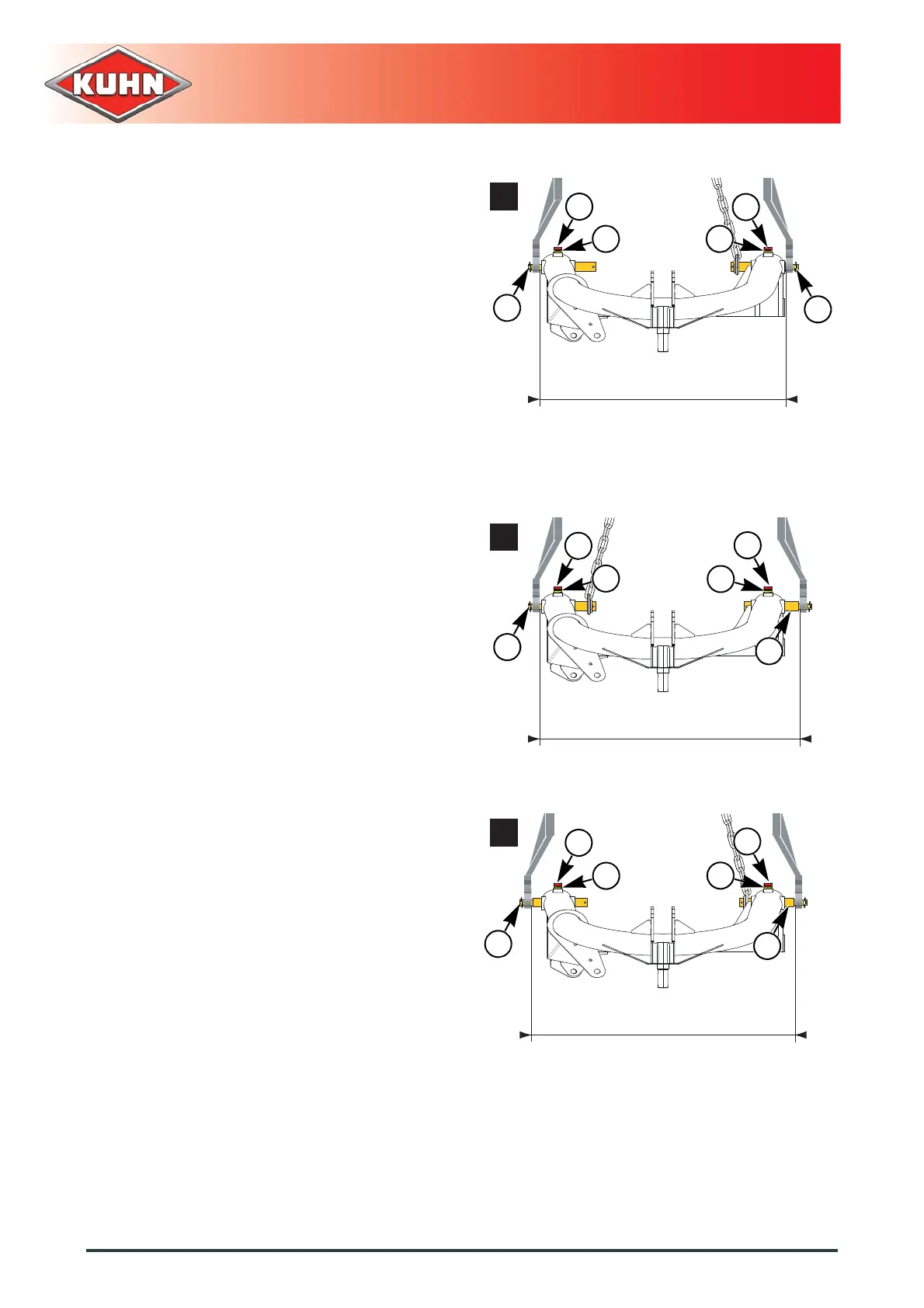

If measure A is comprised between 2.10 m (6’11’’)
and 2.25 m (7’04’’):
- Adjust machine lower hitch pin position:
• Loosen the 2 counter-nuts (1).
• Unscrew the 2 bolts (2).
• Place hitch pins (3) and (4) in the required
position:
• X: 725 mm (2’5’’).
• Tighten the 2 bolts (2).
• Tighten the 2 counter nuts (1).
- Place lower links in position b.
For attachment category 2
If measure A is below or equals 2.10 m (6’11’’):
- Adjust machine lower hitch pin position:
• Loosen the 2 counter-nuts (1).
• Unscrew the 2 bolts (2).
• Place hitch pins (3) and (4) in the required
position:
• X: 825 mm (2’8’’).
• Tighten the 2 bolts (2).
• Tighten the 2 counter nuts (1).
- Place lower links in position a.
If measure A is comprised between 2.10 m (6’11")
and 2.25 m (7’04"):
- Adjust machine lower hitch pin position:
• Loosen the 2 counter-nuts (1).
• Unscrew the 2 bolts (2).
• Place hitch pins (3) and (4) in the required
position:
• X: 825 mm (2’8’’).
• Tighten the 2 bolts (2).
• Tighten the 2 counter nuts (1).
- Place lower links in position b.
X
b
2
1
4
3
2
1
X
a
2
1
2
1
3
4
X
b
2
1
2
1
4
3
