KUHN GMD16 - 10.3.4 Check angle gearbox oil level

GMD16-GMD20
76
10. - Maintenance and storage
KN225BGB_A
Disc mower

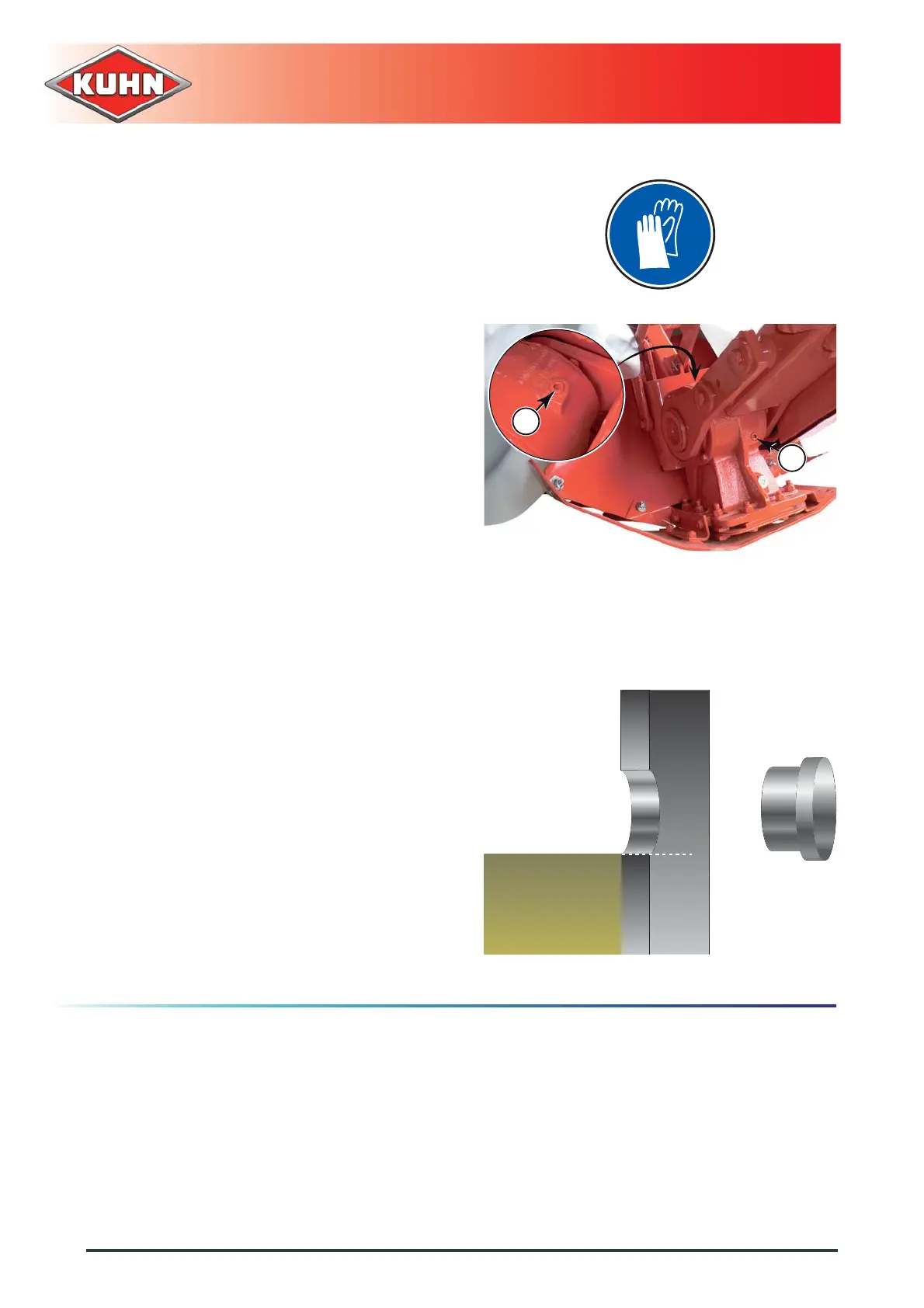

10.3.4 Check angle gearbox oil level
- Regularly check the oil level:
• Place the cutterbar in horizontal position.
• Remove drain plug (1) and its washer.
• Check the oil level.
The oil level must reach the lower edge of the
emptying hole:
• Top up if necessary (Fill via the filler stopper (2)).
• Clean and reinstall drain plug (1) and its washer.
Replace if necessary.
• Clean and reinstall filler plug (2) and its washer.
Replace if necessary.
1
2
