9.9.1 Coupling and uncoupling
 Preparing the machine
- Remove filler plug (1) and its washer.
- Pour the correct oil quantity and quality through the
opening of the filler plug:
• 1 L (0.27 US gal) of high-performance hydraulic
oil.
- Clean and reinstall filler plug (1) and its washer.

Hydraulic connection
- No hydraulic start up to be done before using the
machine.

Uncoupling the machine
- No hydraulic start up to be done before using the
machine.
9.9.2 Putting the machine into transport
position

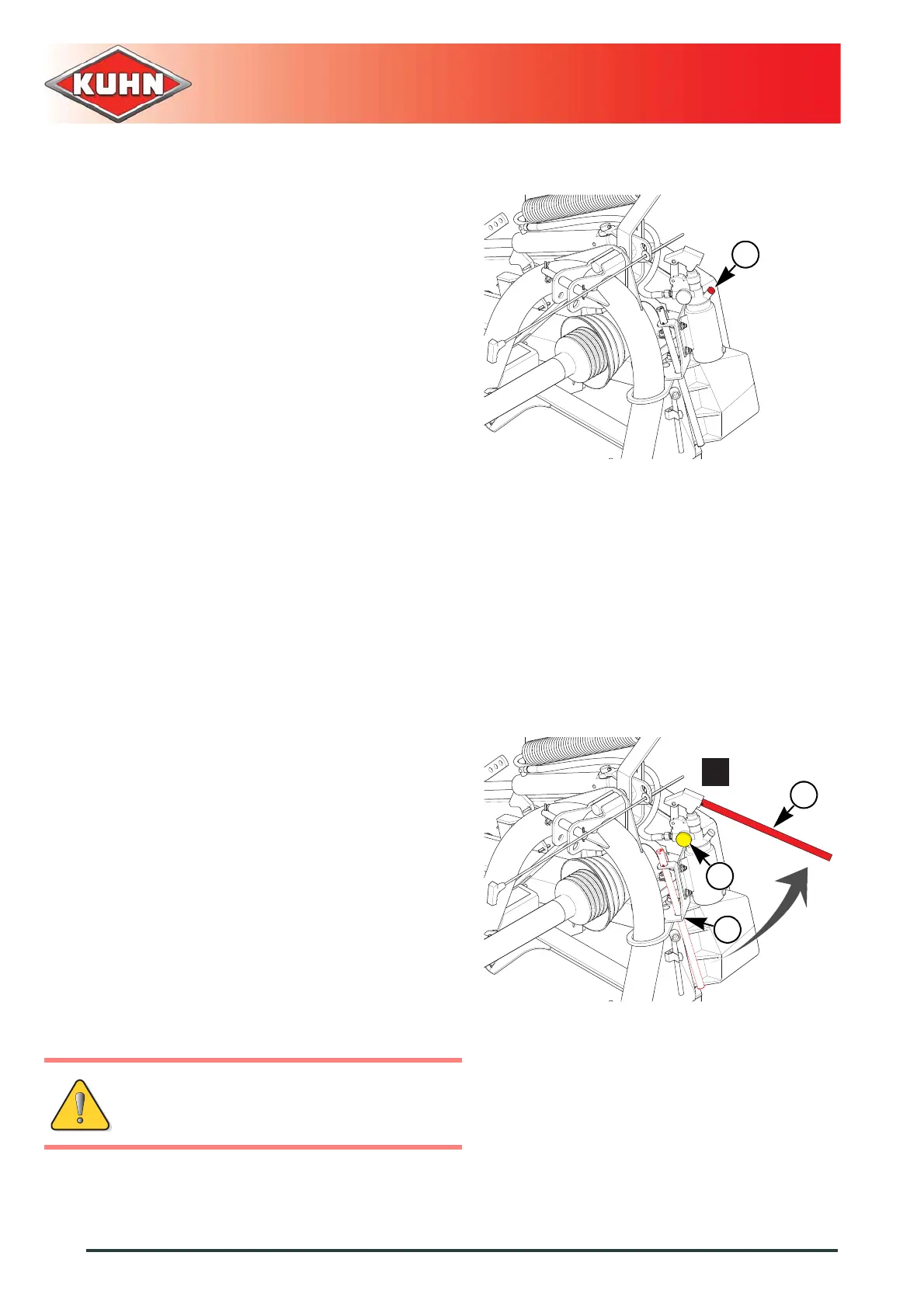

- Fully turn thumbwheel (1) clockwise.
- Position lever (2) in position (a).
- Activate hydraulic pump control lever to place the
mowing unit in transport position.
The machine automatically locks in transport
position.
- Place lever (2) in its holder (3).
The machine is in transport position.
Never engage the tractor PTO drive when the
machine is in transport position.
