KUHN GMD16 - 6.2.4 Coupling the machine

6. - Putting into service
GMD16-GMD20
45
KN225BGB_A
Disc mower

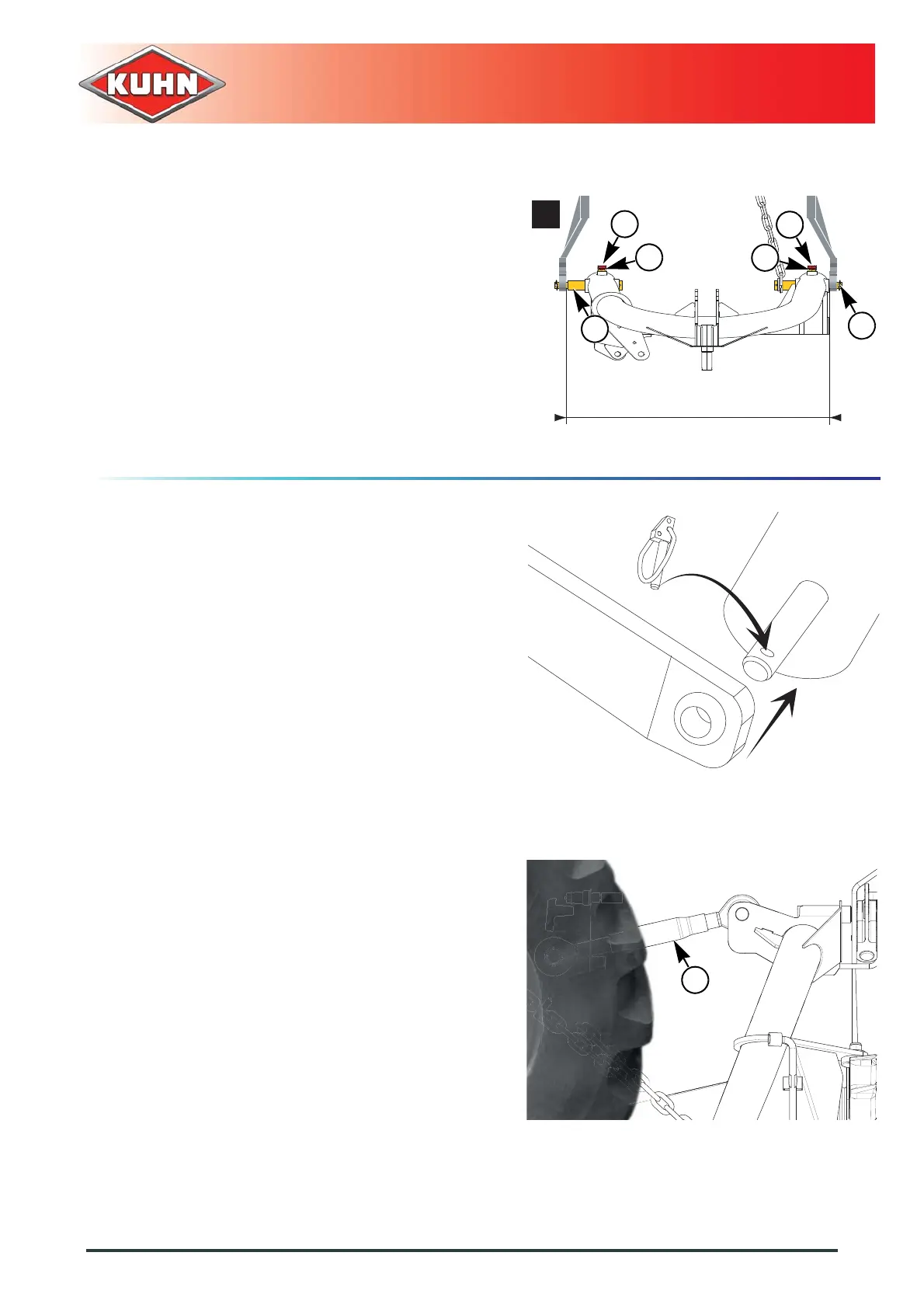

If measure A is comprised between 2.25 m (7’04’’)
and 2.40 m (7’10’’):
- Adjust machine lower hitch pin position:
• Loosen the 2 counter-nuts (1).
• Unscrew the 2 bolts (2).
• Place hitch pins (3) and (4) in the required
position:
• X: 825 mm (2’8’’).
• Tighten the 2 bolts (2).
• Tighten the 2 counter nuts (1).
- Place lower links in position c.
6.2.4 Coupling the machine
- Lower the tractor three-point linkage.
- Position ball joints of tractor lower links in line with
machine lower yokes.
- Attach the lower links to the hitch pins.
- Check that lynch pins are in place and locked.
- Attach top link (1) in one of the upper holes on the
tractor side.
- Insert and lock top link lynch pin.
- Place release cord handle in the tractor cab.
- Lift machine using tractor hydraulic lift linkage.
X
c
2
1
2
1
4
3
1
