KUHN GMD16 - 10.3.8 Outer and inner cones

GMD16-GMD20
82
10. - Maintenance and storage
KN225BGB_A
Disc mower

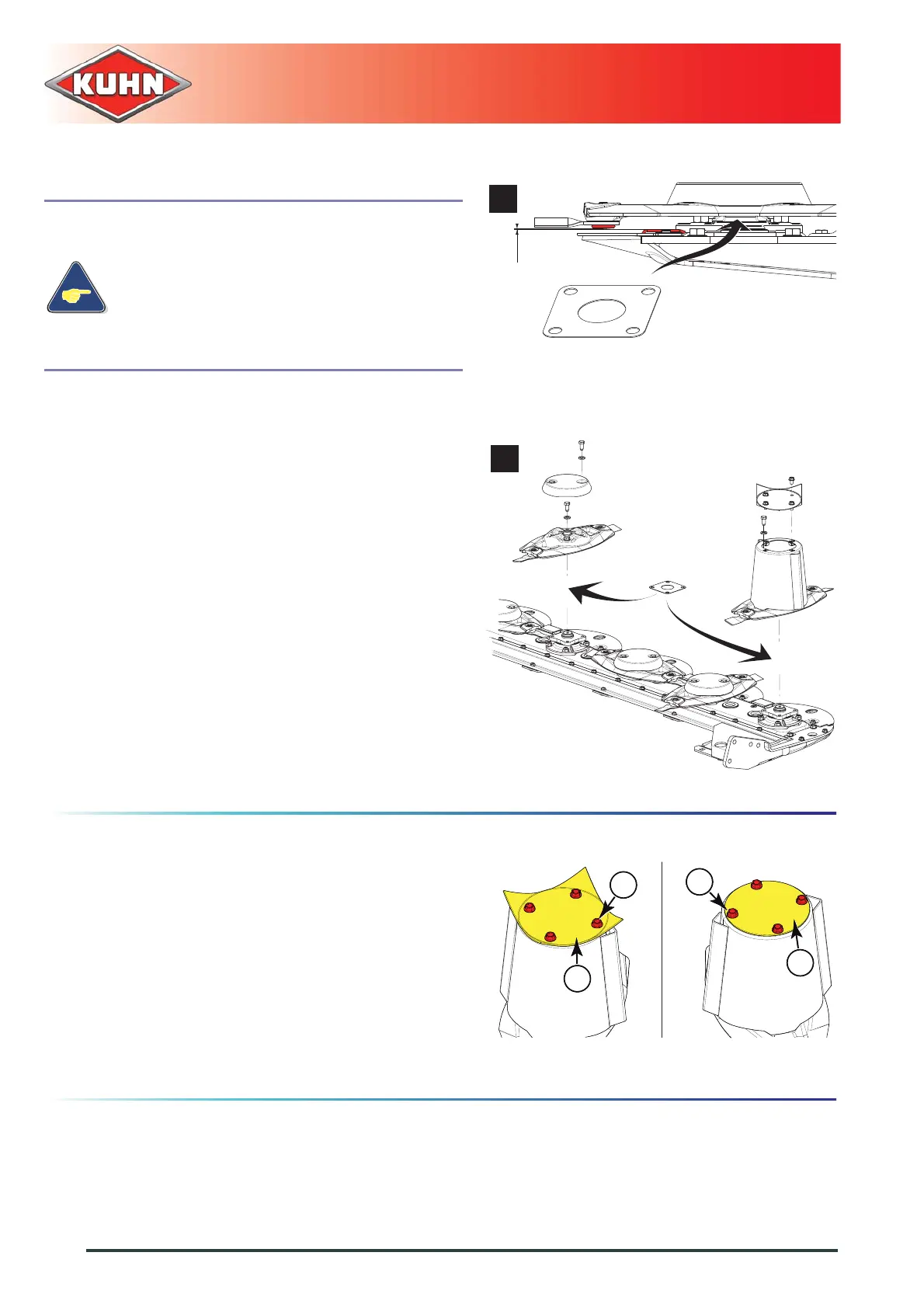

10.3.8 Outer and inner cones
- Check torque of attachment bolts (1) of outer and
inner cone covers (2) and (3):
• Torque: 6 daNm (44 lbf ft).
- Replace any lost or damaged cover.
Check if there is still a minimum gap X =
1 mm (0.04’’) between the disk lower part and
the cutter bar wear plates (c).
If this is not the case, fit one (maximum two)
spacer(s) between the disc and the mounting
hub (d): Part no. 56807100.
X
c
d
1
2
3
1
