KUHN GMD16 - Checking cutterbar oil level

GMD16-GMD20
70
10. - Maintenance and storage
KN225BGB_A
Disc mower
From the transport position:
- Place a container of sufficient capacity under drain
plug.

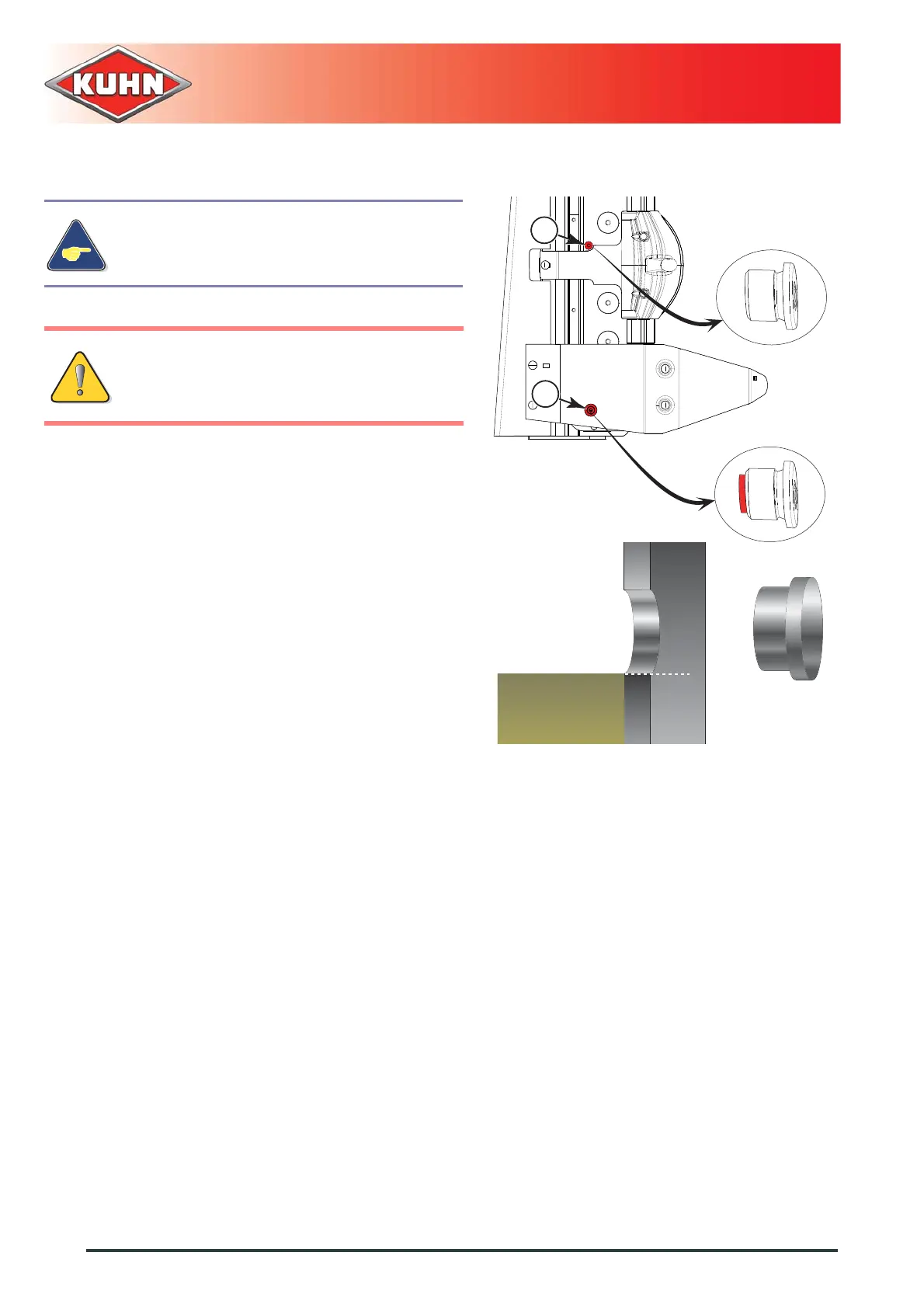

- Remove filler plug (1) and its washer.
- Unscrew drain plug (2) and its seal.
- Allow oil to drain completely.
- Wait for dripping to stop.
- Clean and reinstall drain plug (2) and its washer.
Replace if necessary.
- Pour the correct oil quantity and quality through the
opening of the filler plug.
Checking cutterbar oil level:
• The oil must reach the lower edge of the filling
hole (1).
- Clean and reinstall filler plug (1) and its washer.
Replace if necessary.
Never use an oil of viscosity SAE 90 in the
cutterbar.
For safety reasons, hook check chain as high
as possible.
1
2
