Kyocera FS-6030MFP - Developing Section

2K3/2L3
2-1-7
2-1-3 Developing section
The developing unit consists of the developing roller that forms the magnetic brush, the developing blade and
the developing screws that agitate the toner.Also, the toner sensor (TS) checks whether or not toner remains
in the developing unit.

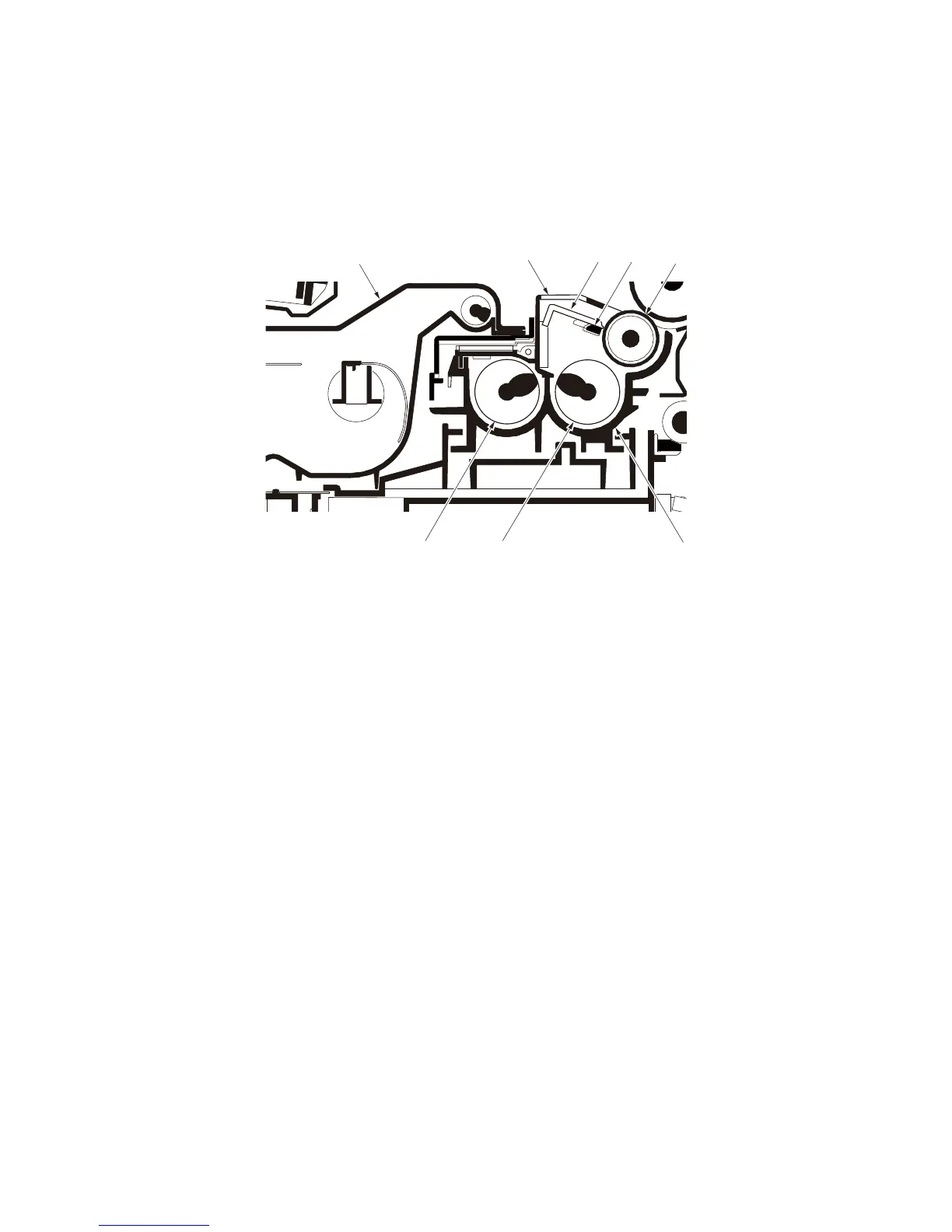

Figure 2-1-9 Developing section
1
2
3
6
4
5
8
7
1. Developing roller
2. Developing screw A
3. Developing screw B
4. Developing blade
5. Magnet blade
6. Developer case
7. Upper developer cover
8. Toner container
