Kyocera FS-6030MFP - Document Processor; Original Feed Section

2K3/2L3
2-1-19
2-1-9 Document processor
(1) Original feed section
The original feed section consists of the parts shown in figure. An original placed on the original tray is con-
veyed to the original conveying section. Original is fed by the rotation of the DP forwarding pulley and DP
paper feed roller.

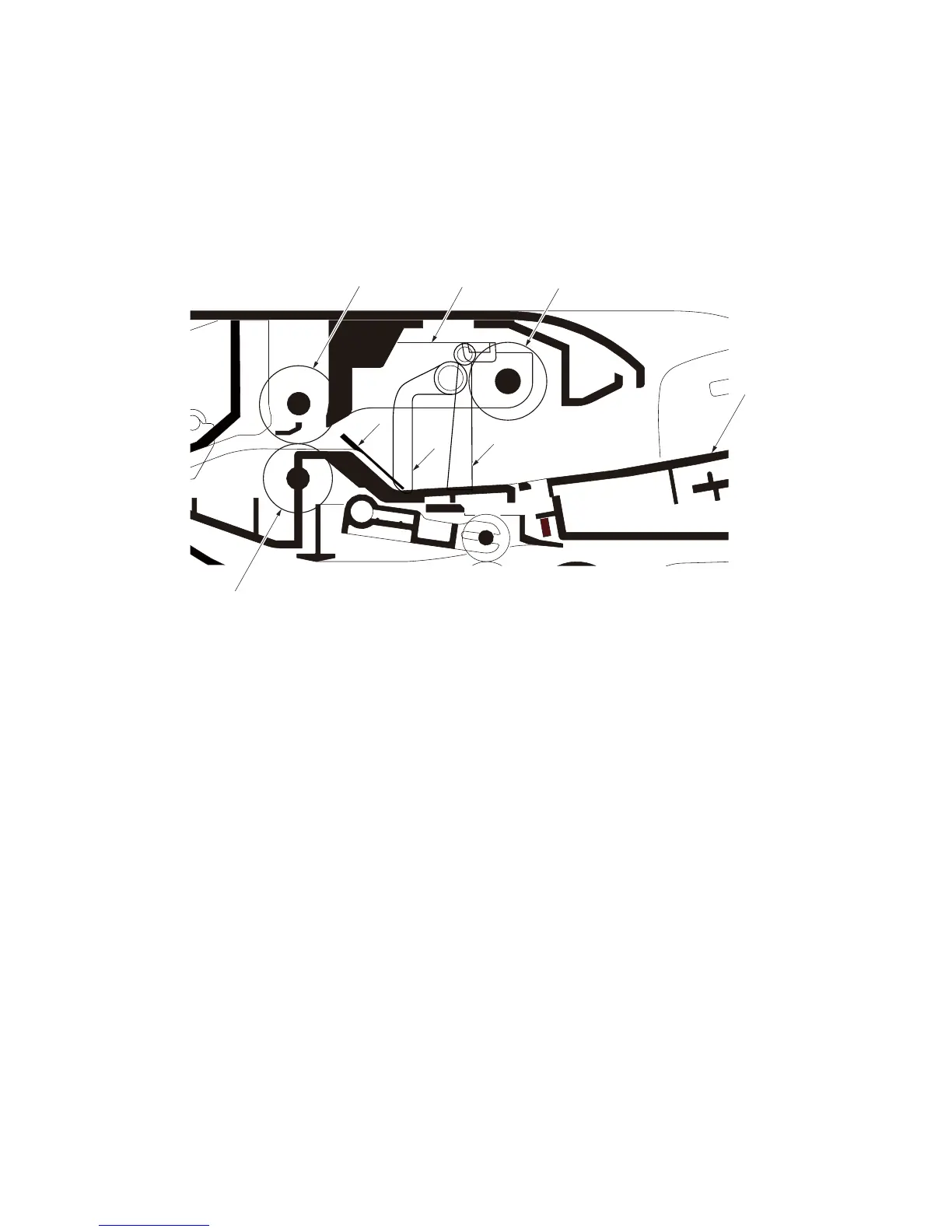

Figure 2-1-24 Original feed section
1
2
7
4
5
3
8
6
1. DP forwarding pulley
2. DP paper feed roller
3. DP feed holder
4. DP separation pulley
5. Front separation pad
6. Actuator (DP original sensor)
7. PF stopper
8. Original tray
