Kyocera FS-6030MFP - Motors

2K3/2L3
2-2-6
(3) Motors

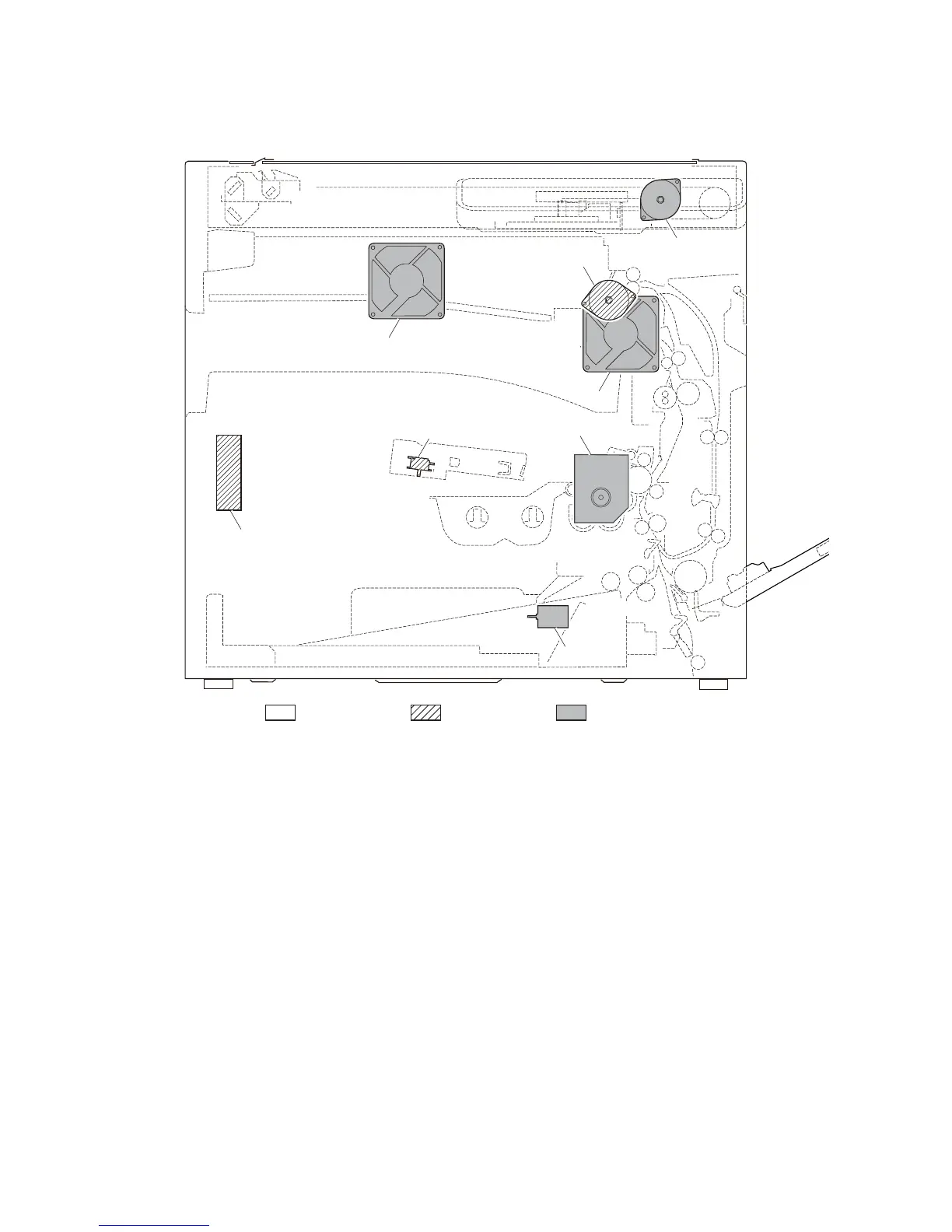

Figure 2-2-3 Motors
1. Main motor (MM)................................... Drives the paper feed section and conveying section.
2. ISU motor (ISUM) ................................. Drives the ISU.
3. Polygon motor (PM) ............................. Drives the polygon mirror.
4. Eject motor (EM) ................................... Drives the fuser section and eject section.
5. Lift motor (LM)....................................... Operates the bottom plate.
6. Eject fan motor (EFM)........................... Cools the fuser and eject sections.
7. Controller fan motor (CONFM).............. Cools the controller section.
8. Power source fan motor (PSFM) .......... Cools the power source PWB.
1
2
3
4
5
6
7
8
Machine innerMachine front Machine rear
