(2) Laser scanner section
The charged surface of the drum is then scanned by the laser beam from the laser scanner unit. The laser
beam is dispersed as the polygon motor (PM) revolves to reflect the laser beam over the drum. Various lenses
and mirror are housed in the laser scanner unit, adjust the diameter of the laser beam, and focalize it at the
drum surface. Also the LSU cleaning motor (LSUCM) is activated to conduct automatically cleaning of the
LSU dust shield glass.

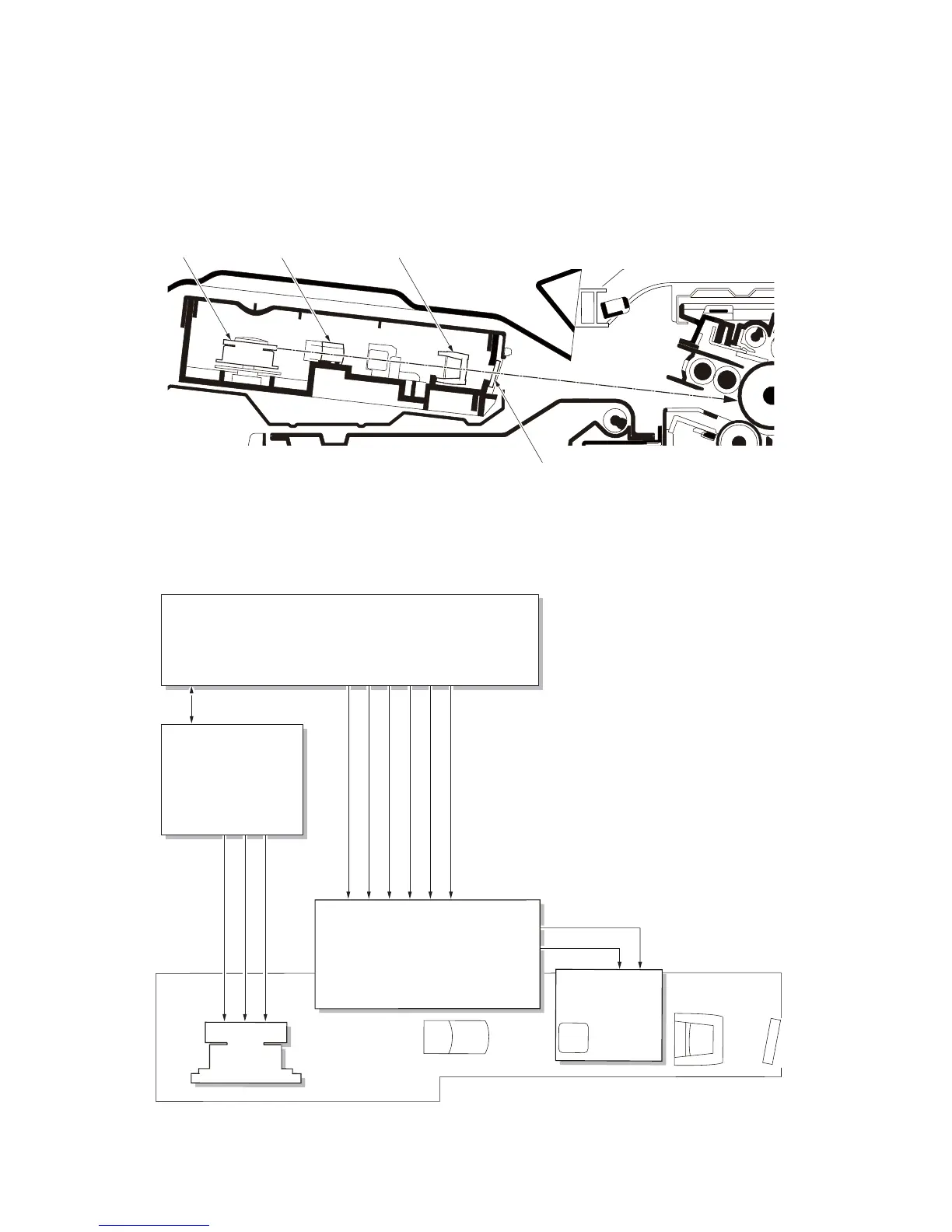

Figure 2-1-14 Laser scanner unit (LSU)
Figure 2-1-15 Laser scanner unit block diagram
1
2 3
4
1. Polygon motor (PM)
2. fθ sub lens
3. fθ main lens
4. LSU dust shield glass
PM
APCPWB
BDPWB
MPWB
EPWB
YC11-3 YC11-4 YC11-5
POL_REM
POL_READY
POL_CLK
YC2-4 YC2-3 YC2-2 YC2-5 YC2-6 YC2-8
YC1-3
YC1-2
BDN
TH
SH
VDOP
VDON
ENBN
VCONT
BDN
YC103-7 YC103-8 YC103-9 YC105YC17 YC103-6 YC103-5 YC103-3
YC1-3 YC1-2
1 2 3
