2-1-7 Eject/Feedshift section
The paper eject/feedshift section consists of the conveying path which sends the paper that has passed the
fuser section to the inner tray, the job separator tray or the duplex conveying section.

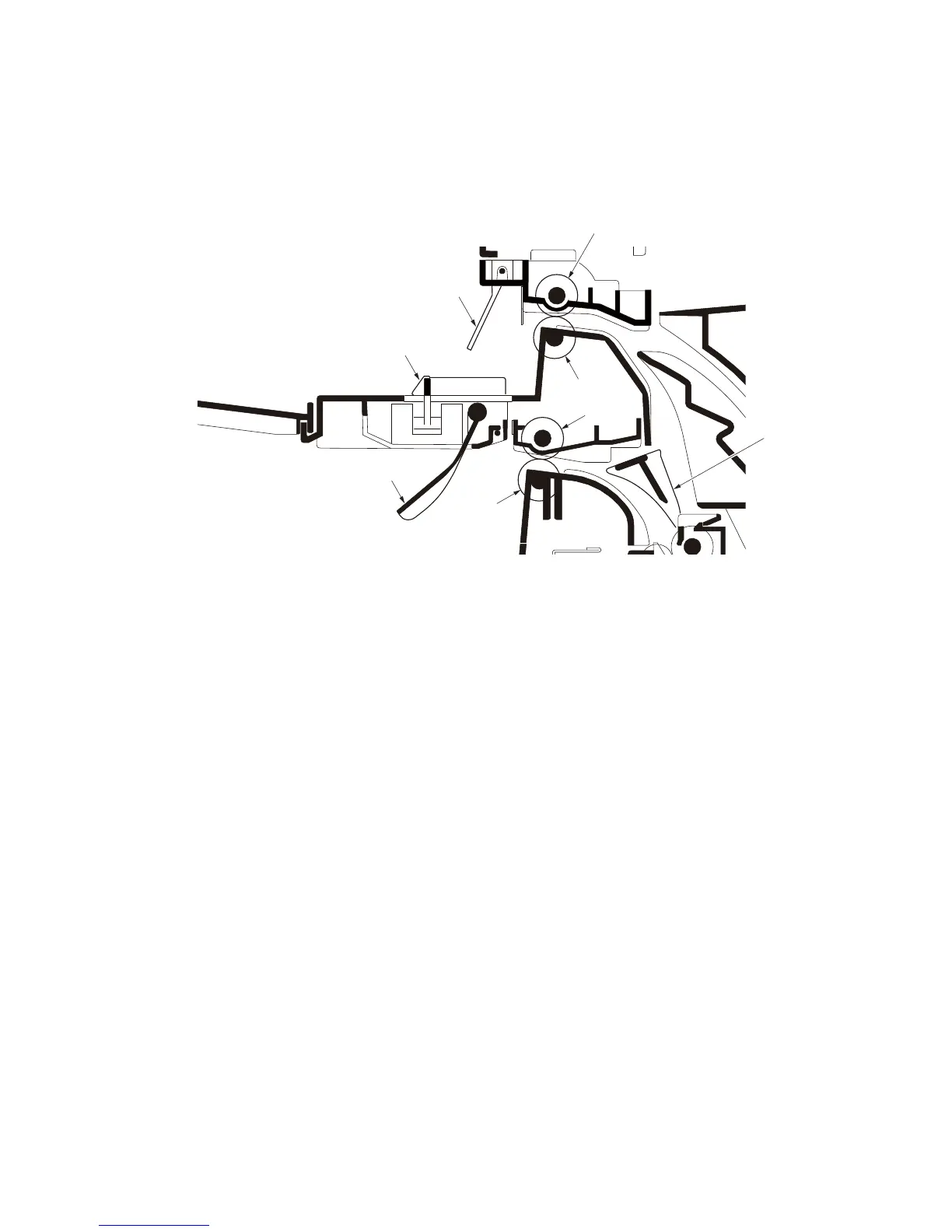

Figure 2-1-20 Eject/Feedshift section
8
6
7
4
3
2
5
1
1. Eject roller
2. Eject pulley
3. Eject roller
4. Eject pulley
5. Feedshift guide
6. Actuator (paper full sensor)
7. Actuator
(job paper full sensor)
8. Actuator (job eject paper sensor)
