Kyocera FS-9530DN Service Manual

2GZ/2G1-2
1-4-33

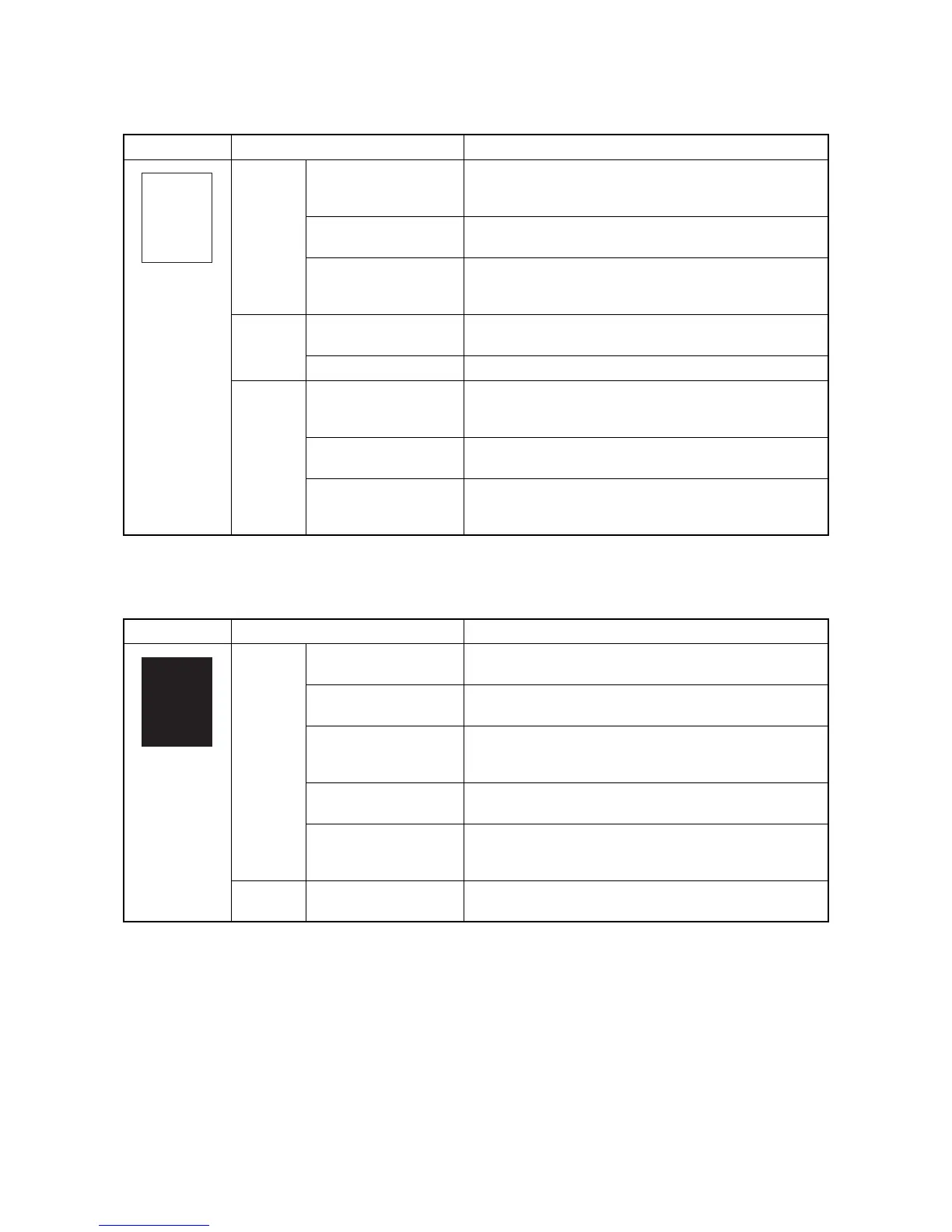

(1) No image appears (entirely white).
(2) No image appears (entirely black).
Print example Causes Check procedures/corrective measures
No trans-
fer charg-
ing.
The connector terminals
of the high voltage PWB
make poor contact.
Reinsert the connector. Also check for continuity within the
connector cable. If none, remedy or replace the cable.
Defective engine PWB. Check if YC7-10 on the engine PWB goes low when mainte-
nance item U101 is run. If not, replace the engine PWB.
Defective high voltage
PWB.
Check if transfer charging takes place when CN1-5 on the
high voltage PWB goes low while maintenance item U101 is
run. If not, replace the high voltage PWB.
No LSU
laser is
output.
Defective laser scanner
unit.
Replace the laser scanner unit (see page 1-5-11).
Defective main PWB. Replace the main PWB.
No devel-
oping bias
output.
The connector terminals
of the high voltage PWB
make poor contact.
Reinsert the connector. Also check for continuity within the
connector cable. If none, remedy or replace the cable.
Defective engine PWB. Check if YC7-1 on the engine PWB goes low when mainte-
nance item U101 is run. If not, replace the engine PWB.
Defective high voltage
PWB.
Check if developing bias is output when CN1-14 on the high
voltage PWB goes low while maintenance item U101 is run.
If not, replace the high voltage PWB.
Print example Causes Check procedures/corrective measures
No main
charging.
Broken main charger
wire.
Replace the main charger unit (see page 1-5-15).
Leaking main charger
housing.
Clean the main charger wire and grid.
The connector terminals
of the high voltage PWB
make poor contact.
Reinsert the connector. Also check for continuity within the
connector cable. If none, remedy or replace the cable.
Defective engine PWB. Check if YC7-4 on the engine PWB goes low when mainte-
nance item U100 is run. If not, replace the engine PWB.
Defective high voltage
PWB.
Check if main charging takes place when CN1-11 on the high
voltage PWB goes low while maintenance item U100 is run.
If not, replace the high voltage PWB.
Video data
problem.
Defective main PWB. Replace the main PWB.

Kyocera FS-9530DN Specifications

General

Maximum print size	297 x 420 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	3.5 s
Print speed (black, normal quality, A3)	26 ppm
Print speed (black, normal quality, A4/US Letter)	51 ppm
Memory type	DDR
Memory slots	1
Processor model	750FL
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	640 MB
Sound power level (standby)	51 dB
Sound pressure level (printing)	70 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	200 sheets
Wi-Fi	-
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols (IPv4)	TCP/IP, IPX/SPX, AppleTalk, NetBEUI
Printing colors	Black
Maximum duty cycle	300000 pages per month
Page description languages	PCL 5e, PCL 6, PCL XL
Current rating	11.4 A
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	180 W
Power consumption (printing)	900 W
Power consumption (PowerSave)	4.5 W
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Other operating systems supported	Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x
Server operating systems supported	Windows Server 2003
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 95, Windows 98, Windows 98SE, Windows ME, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	ENERGY STAR
Product color	White
Networking features	Fast Ethernet

Weight and Dimensions

Dimensions (WxDxH)	599 x 646 x 615 mm
