Kyocera FS-9530DN - Installing the Network Interface Card (Option)

2GZ/2G1-2
1-2-9
1-2-3 Installing the network interface card (option)
Procedure

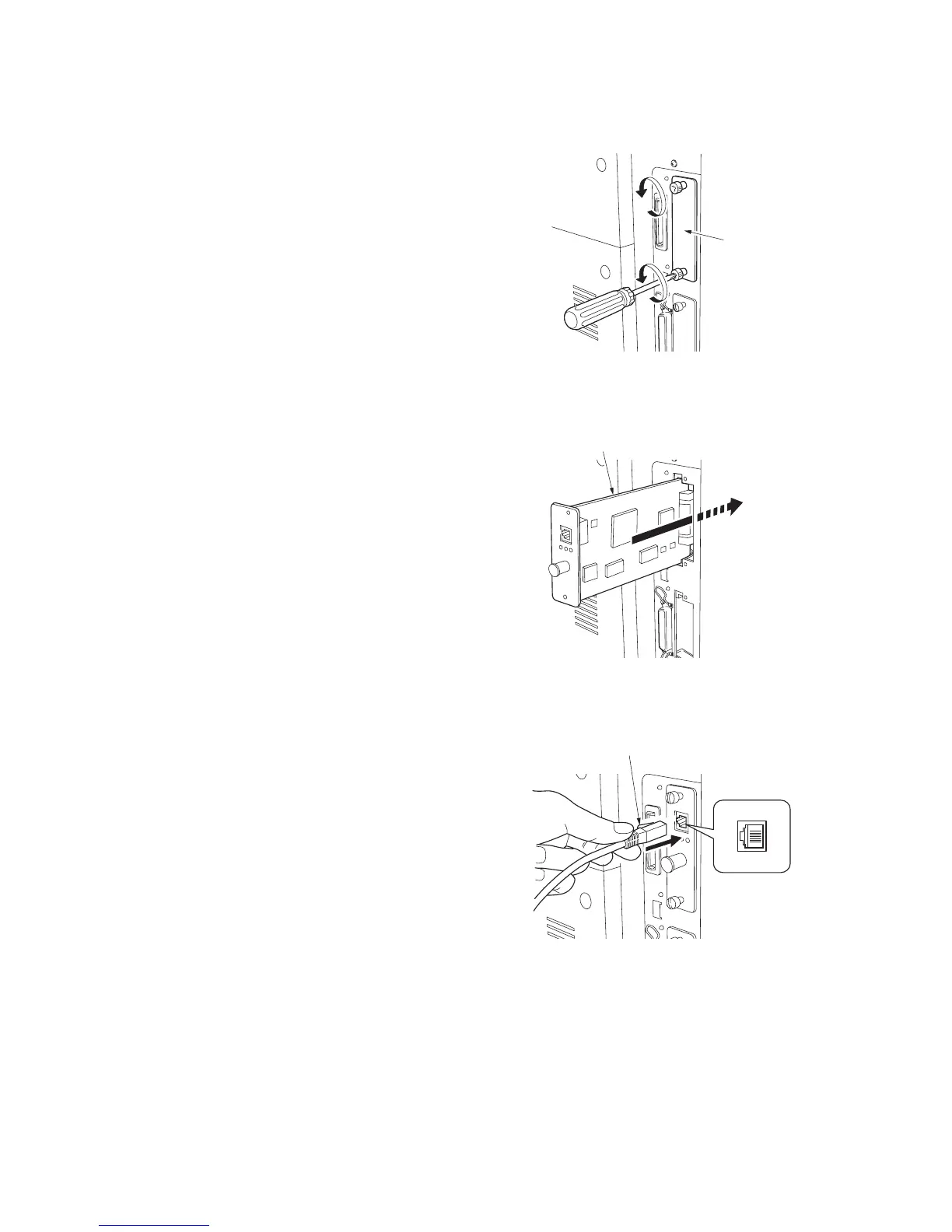

1. Remove two screws and remove the inter-
face slot cover (OPT).
Figure 1-2-13
2. Insert the network interface card and secure
it with the screws removed in step 1.
Figure 1-2-14
3. Connect the network cable.
Figure 1-2-15
Interface
slot cover
Network interface card
Network cable
