Kyocera FS-9530DN - Machine Cross Section

2GZ/2G1
1-1-5
1-1-3 Machine cross section

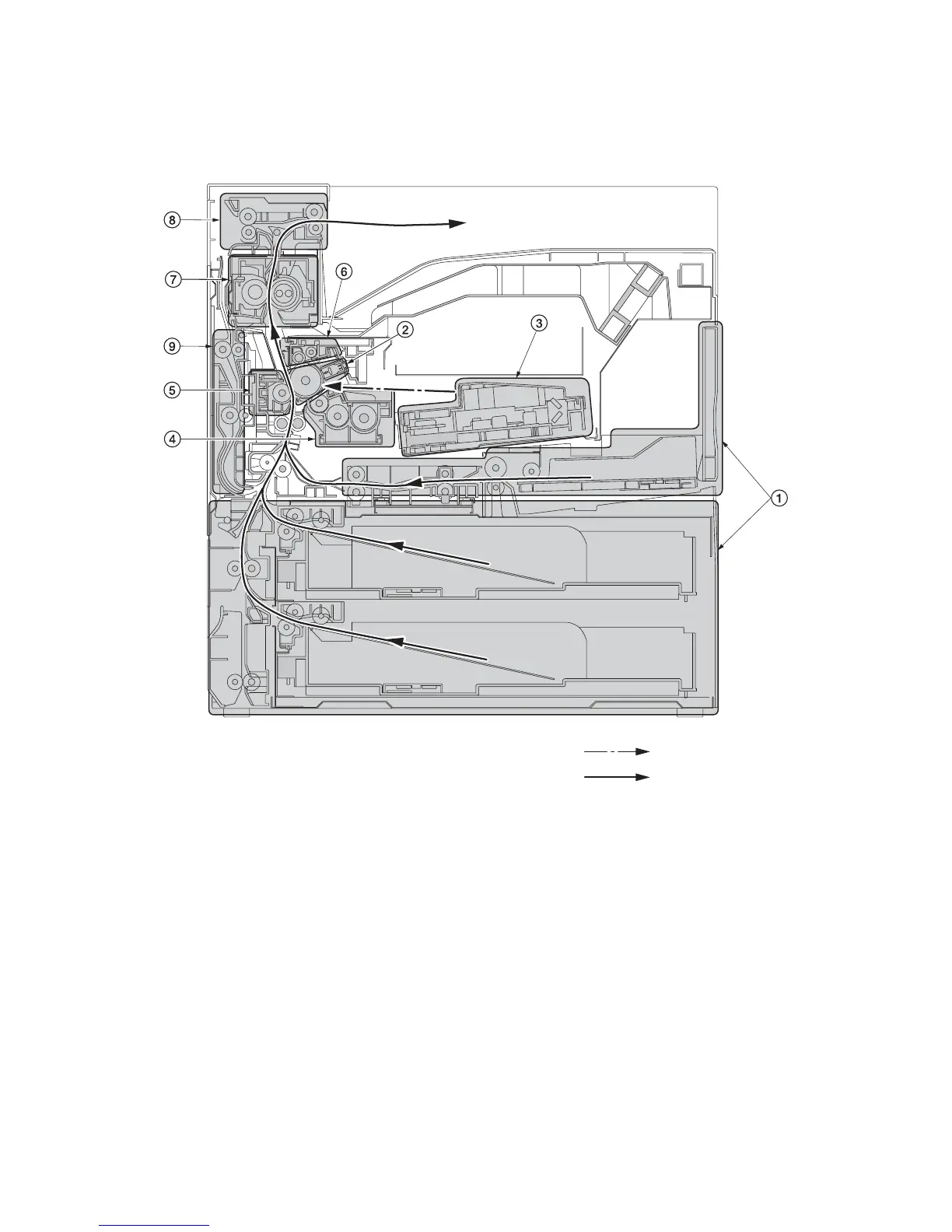

Figure 1-1-3 Machine cross section
Light path
Paper path
1. Paper feed section
2. Main charging section
3. Laser scanner unit
4. Developing section
5. Transfer and separation section
6. Cleaning and charge erasing section
7. Fuser section
8. Eject and switchback section
9. Duplex section
