Kyocera FS-9530DN - Parts Names; Body; Operation Panel

2GZ/2G1
1-1-3
1-1-2 Parts names
(1) Body

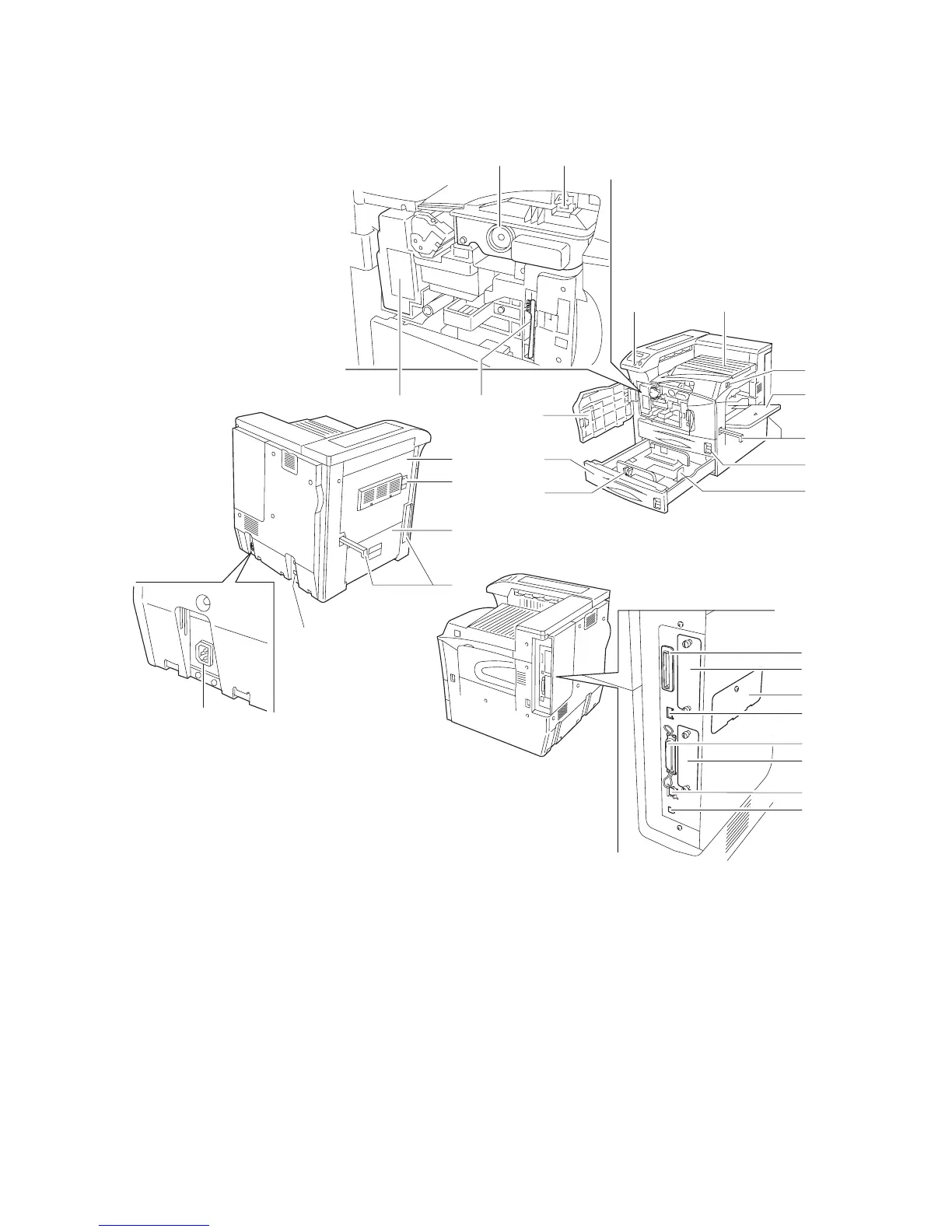

Figure 1-1-1
16
17
18
20
19
15
11
12
14
13
2
3
4
1
10
9
8
7
6
5
21
22
23
24
25
26
27
28
1. Operation panel
2. Front cover
3. Cassette 2
4. Paper guide
5. Paper stopper
6. Cassette 1
7. Handles for transport
8. MP (Multi-Purpose) tray
9. Main switch
10. Top tray
11. Toner container
12. Toner container release lever
13. Waste toner box
14. Cleaning brush
15. Power cord connector
16. Option unit connector
17. Handles for transport
18. Left cover 2
19. Lock lever
20. Left cover 1
21. Memory card slot
22. Option interface slot (OPT)
23. Option memory slot cover
24. USB Memory slot (A1)
25. Parallel interface connector
26. Option hard disk unit Slot
(HDD)
27. Network interface connector
28. USB interface connector (B1)
