Kyocera FS-9530DN Service Manual

2GZ/2G1-2
2-2-4
(3) Motors

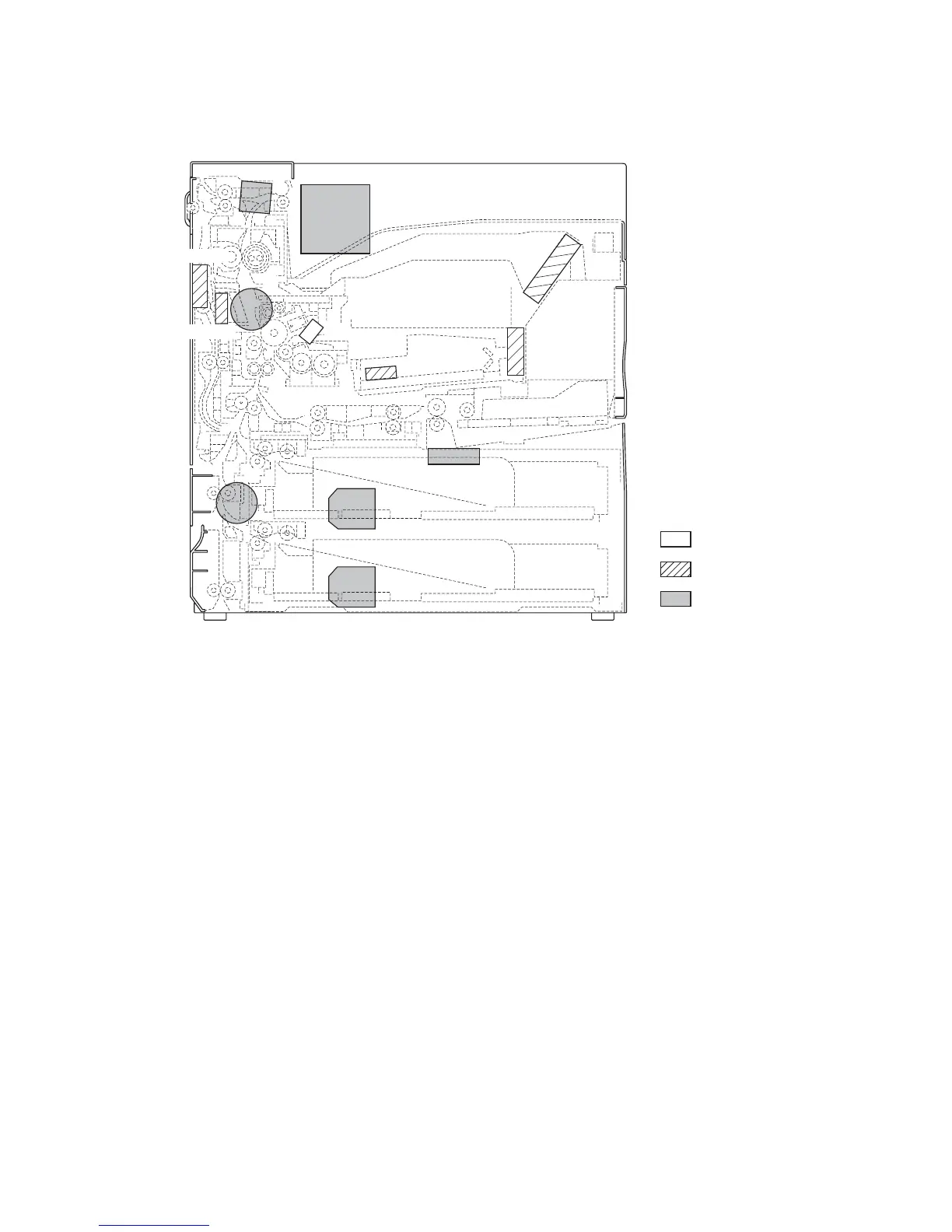

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Paper feed motor (PFM) .............................. Drives paper feed section.
3. Upper lift motor (LM-U) ................................ Drives cassette 1 lift.
4. Lower lift motor (LM-L)................................. Drives cassette 2 lift.
5. Eject motor (EM) .......................................... Drives the eject section.
6. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
7. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
8. Cooling fan motor 3 (CFM3) ........................ Cools the machine interior (around the LSU).
9. Cooling fan motor 4 (CFM4) ........................ Cools the machine interior (around the power source PWB).
10. Cooling fan motor 5 (CFM5).......................... Cools the machine interior and supports paper transfer for duplex printing.
11. Cooling fan motor 6 (CFM6) ......................... Cools the machine interior and supports paper transfer for duplex printing.
12.
Cooling fan motor 7 (CFM7) ......................... Cools the machine interior and supports paper transfer for duplex printing.
13. Cooling fan motor 8 (CFM8) ........................ Cools the machine interior (around the paper conveying).
14. Cooling fan motor 9 (CFM9) ........................ Cools the machine interior (around the paper conveying).
15. Cooling fan motor 10 (CFM10) .................... Cools the machine interior (around the paper conveying).
16. Polygon motor (PM) ..................................... Drives the polygon mirror.
17. Main charger cleaning motor (MCCM)......... Drives the main charger auto cleaning.
7
8
16
9
3
2
4
6
5
1
17
10,11,12
13,14,15
Machine front
Machine inside
Machine rear
