2GZ/2G1
2-1-14
2-1-8 Eject and switchback sections
The eject and switchback sections eject paper on which fixing has ended with the eject roller that is rotated by forward
rotation of the eject motor.
In duplex printing, paper is turned over by reverse rotation of the eject motor.

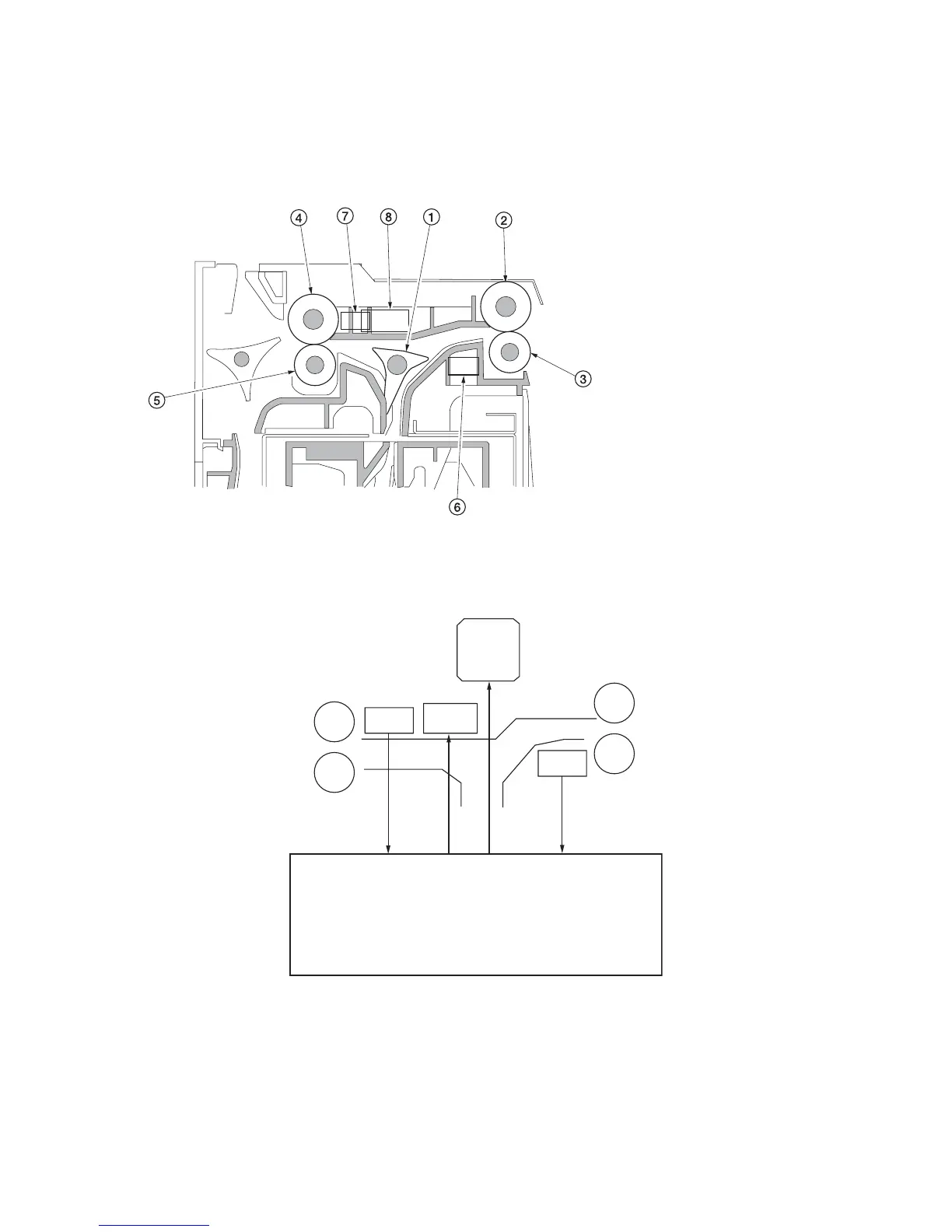

Figure 2-1-21 Eject and switchback sections
Figure 2-1-22 Eject and switchback sections block diagram
(1) Feedshift guide
(2) Eject roller
(3) Eject pulley
(4) Switchback roller
(5) Switchback pulley
(6) Eject switch (ESW)
(7) Feedshift switch (FSSW)
(8) Feedshift solenoid (FSSOL)
YC14-A5
YC14-B11-
YC14-B14
YC14-A1-
YC14-A2
YC14-A11
EPWB
ESW
EM
FSSW
FSSOL
