Kyocera FS-9530DN - Fuser Section; Detaching and Refitting the Fuser Unit

2GZ/2G1-2
1-5-19
1-5-7 Fuser section
(1) Detaching and refitting the fuser unit
Follow the procedure below to check or replace the fuser unit.
Procedure
1. Open the front cover and left cover 1.
2. Remove two screws and remove front left
cover.

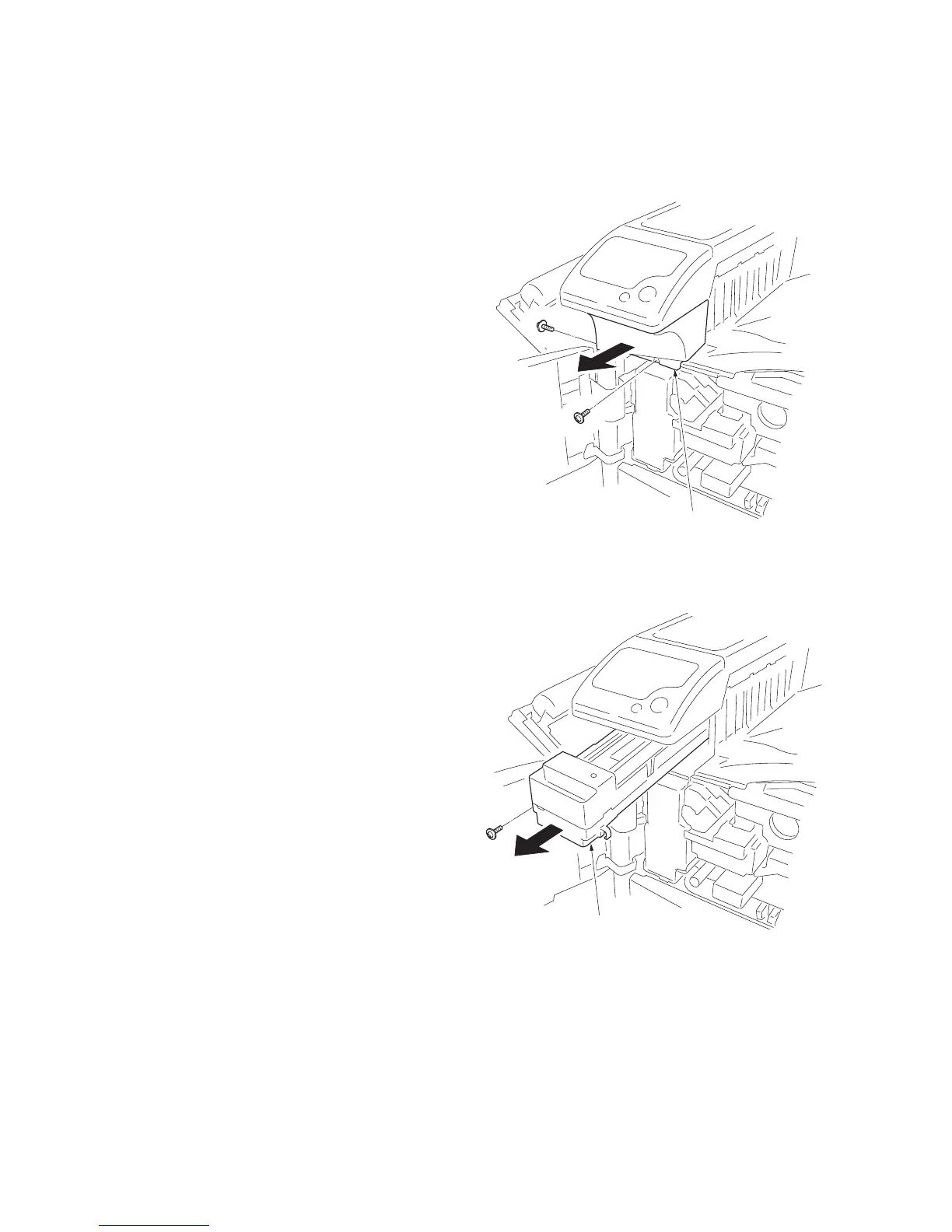

Figure 1-5-41
3. Remove the screw and remove the fuser
unit.
4. Check or replace the fuser unit and install
the unit.
Figure 1-5-42
Front left cover
Fuser unit
